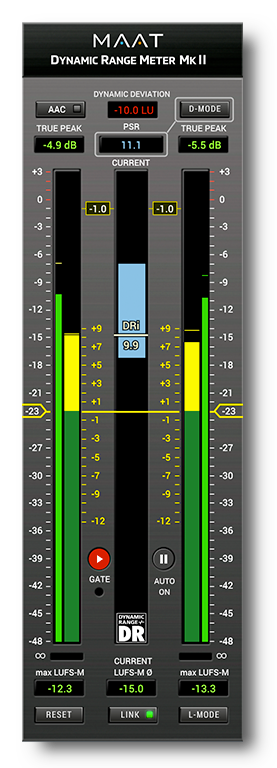

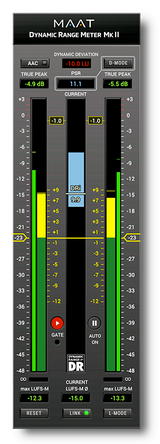

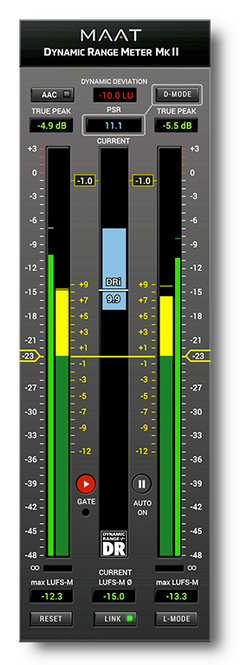

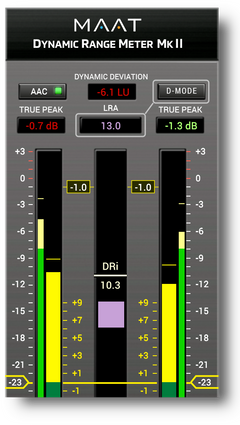

DRMeter MkII

Features

• INDUSTRY FIRSTS —
• The first Loudness meter designed for general use and specifically for music production
• The only Loudness meter displaying channel–specific trends and events with classic L/R metering
• DRMeter MkII is also the first plug–in to offer official DRi dynamic range, just like our DROffline batch utility
• Dynamic Deviation, an intuitive presentation of your current dynamic density compared to Target Loudness
• DRM2 is also the first loudness meter with DualVu™. Displaying both Relative and Absolute scales simultaneously makes loudness metering more intuitive and easier to understand.
• MEASUREMENT —
• D-MODE: DR - MAAT’s renowned DR dynamic range standard; PSR - Peak–to–Short–term Ratio; LRA - Loudness Range
• L-MODE: RMS, Momentary Loudness, Short–term Loudness
• Integrated: DRi, LUi (Program Loudness)
• ADDITIONAL FUNCTIONS —

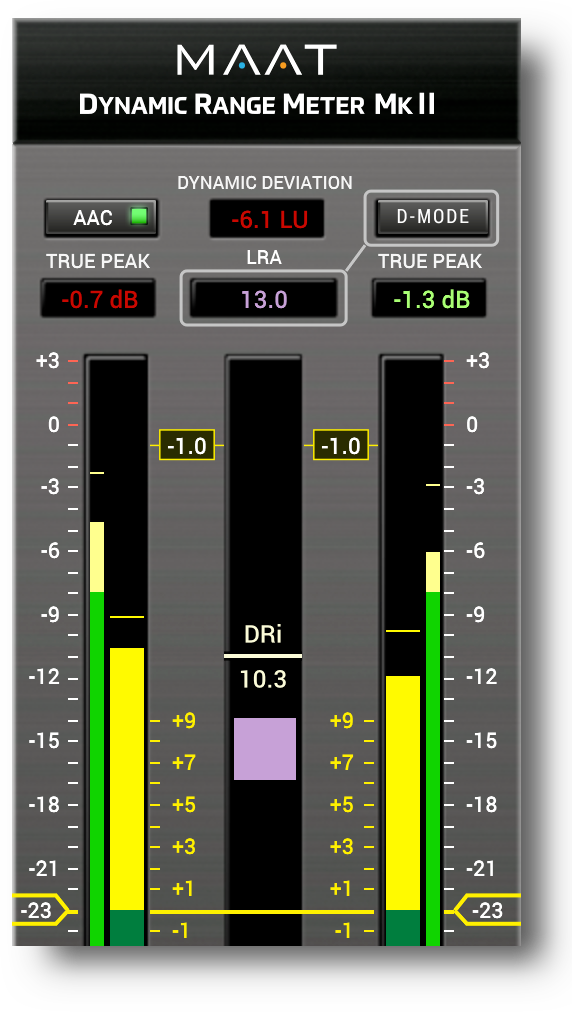

• MFiT mode — measures and monitors signal through round trip iTunes AACplus codec

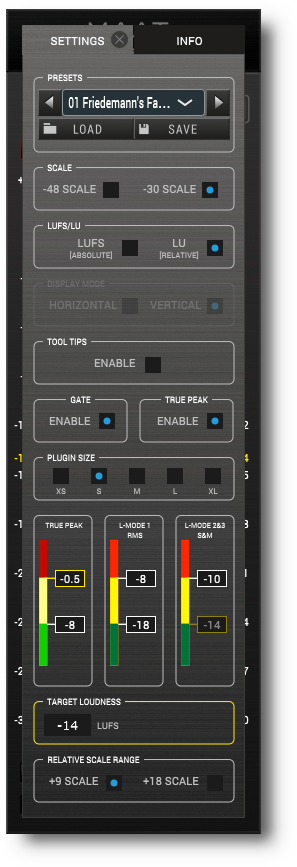

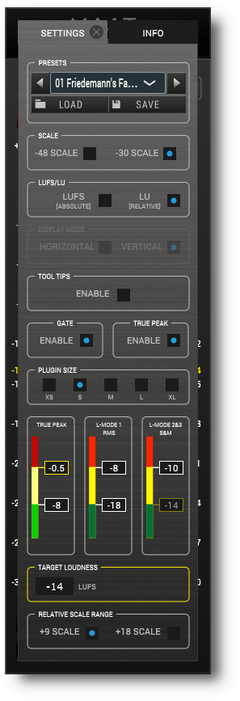

• Highly configurable: set up DRMeter MkII the way you need
• Measurements always running; easy to switch standards on the fly
• Adjustable, user defined target loudness
• Adjustable, user defined maximum True Peak Threshold
• Dynamic Deviation — difference in LU needed to match user defined target loudness
• LUFS/LU mode, LU mode with +9 and +18
• LINK mode; links left and right channel Dynamic Display together to show average of L+R
• Play and Pause control for integrated measurement
• 3 automatic modes for integrated measurement; AUTO ON, AUTO RESET OFF, AUTO OFF
• R 128 Gate On/Off for downward compatibility
• Gate indicator; indicates when the R/128 / A/85 Gate is active for LU integrated measurements
• Global Reset Button
• -? (?FS) input indicators
• Adjustable color thresholds for peak and loudness bar graphs

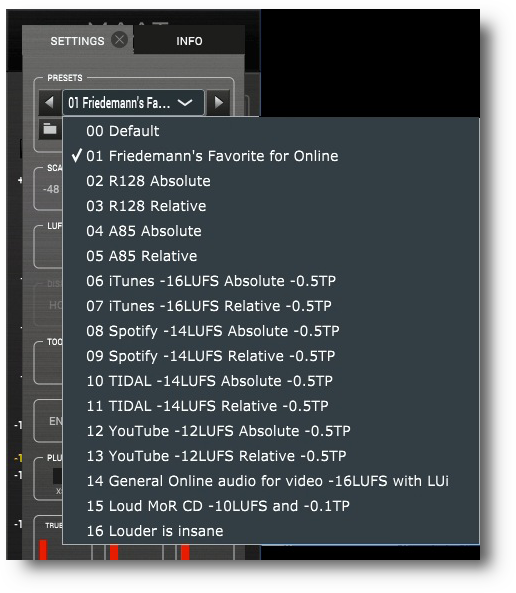

• Factory & user presets
• optional -30 dB zoom scale

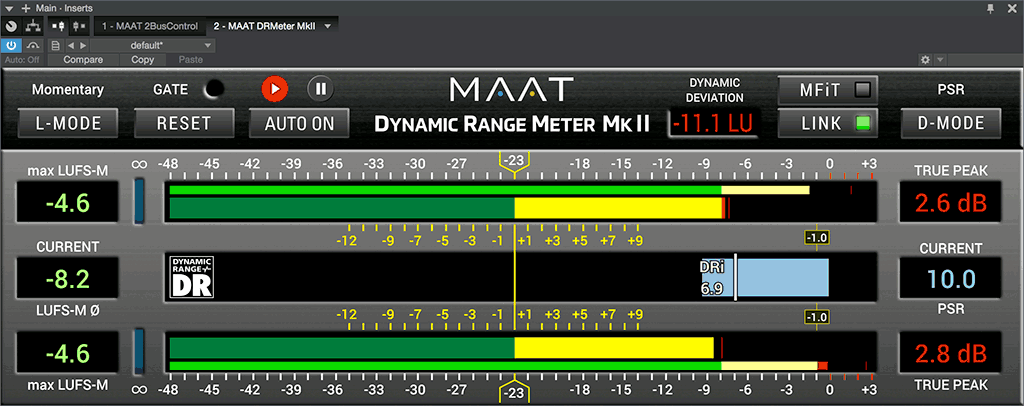

• 5 different UI sizes for any display size
• TP disable option (= SPPM)
