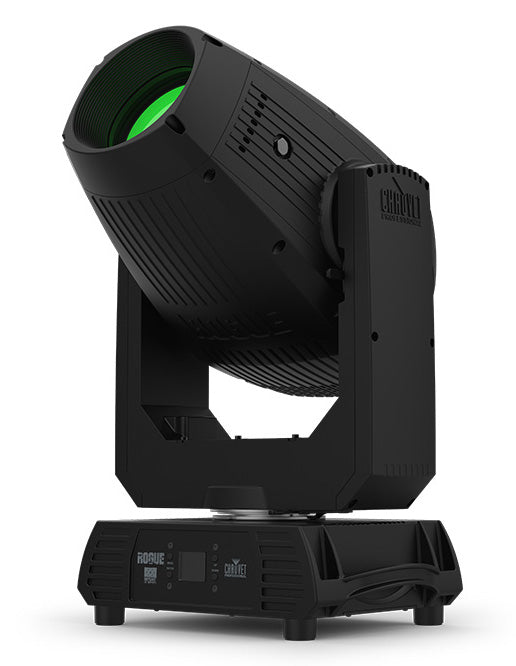

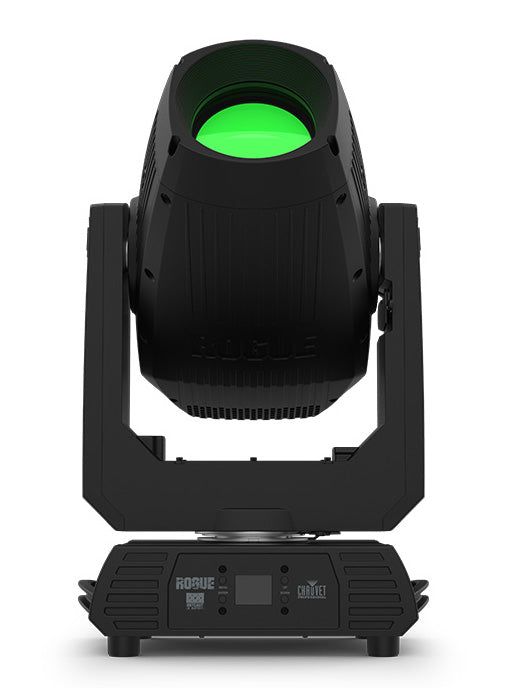

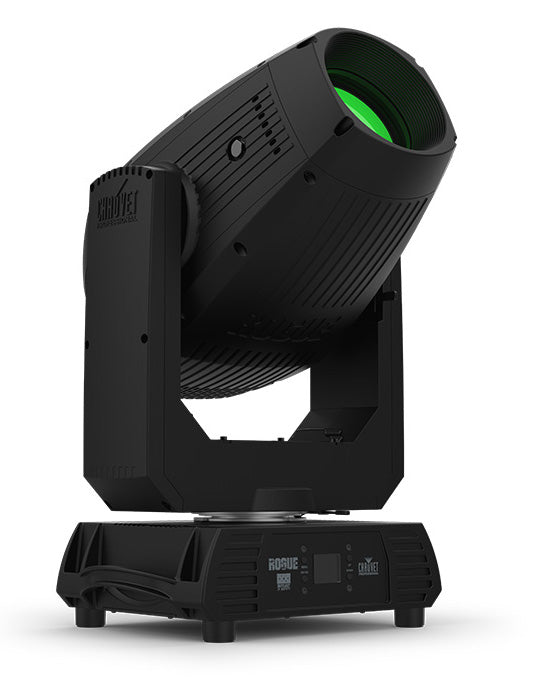

Chauvet Rogue Outcast 3 Spot

OPTICAL

• Light Source: 1 LED (CW) 300 W, (5 A), 7044 K, 50,000 hours life expectancy.
• Color Temperature (at full): 7044 K
• Front lens diameter: 119 mm
• CRI: 70
• Beam Angle: 4.9° to 33.7°
• Field Angle: 5.5° to 38°
• Cutoff Angle: 5.6° to 38.7°
• Zoom Range: 4.9° to 38.7°
• Lumens – Source: 20,000
• Lumens – Output: 14,989
• Illuminance (4.9°): 56,916lux @ 5 m
• Illuminance (38.7°) 7,260 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
• Colors (1): 7 + white, split colors, continuous scroll at variable speeds
• Colors (2): 7 + white, split colors, continuous scroll at variable speeds
• Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating); size: 25.5 mm (outside), 14.8 mm (image), 2 mm (max. thickness)
• Gobo Size: Gobo Wheel 2 (static): size: 24 mm (outside), 16 mm (image), 0.6 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 5 Facets, motorized, rotating
• Strobe Rate: 0 to 20 Hz
• Move in Black: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 14.41 x 9.61 x 25.16 in (366 x 244 x 639 mm)
• Weight: 51 lb (23.2 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

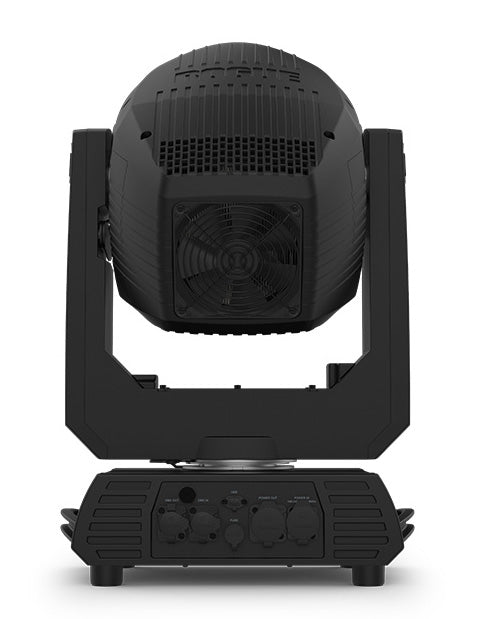

CONNECTIONS

• Power Connection: Edison (local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 20 or 25
• Modes/Personalities: 2 personalities (20, 25)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V
• Power and Current: 494 W, 2.19 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, UKCA
• IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
• Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
• Maximum Ambient Temperature (ta): 45° C / 113° F

WHAT'S INCLUDED

• Rogue Outcast 3 Spot
• Seetronic Powerkon IP65 power cord
• (2) Omega brackets with mounting hardware
