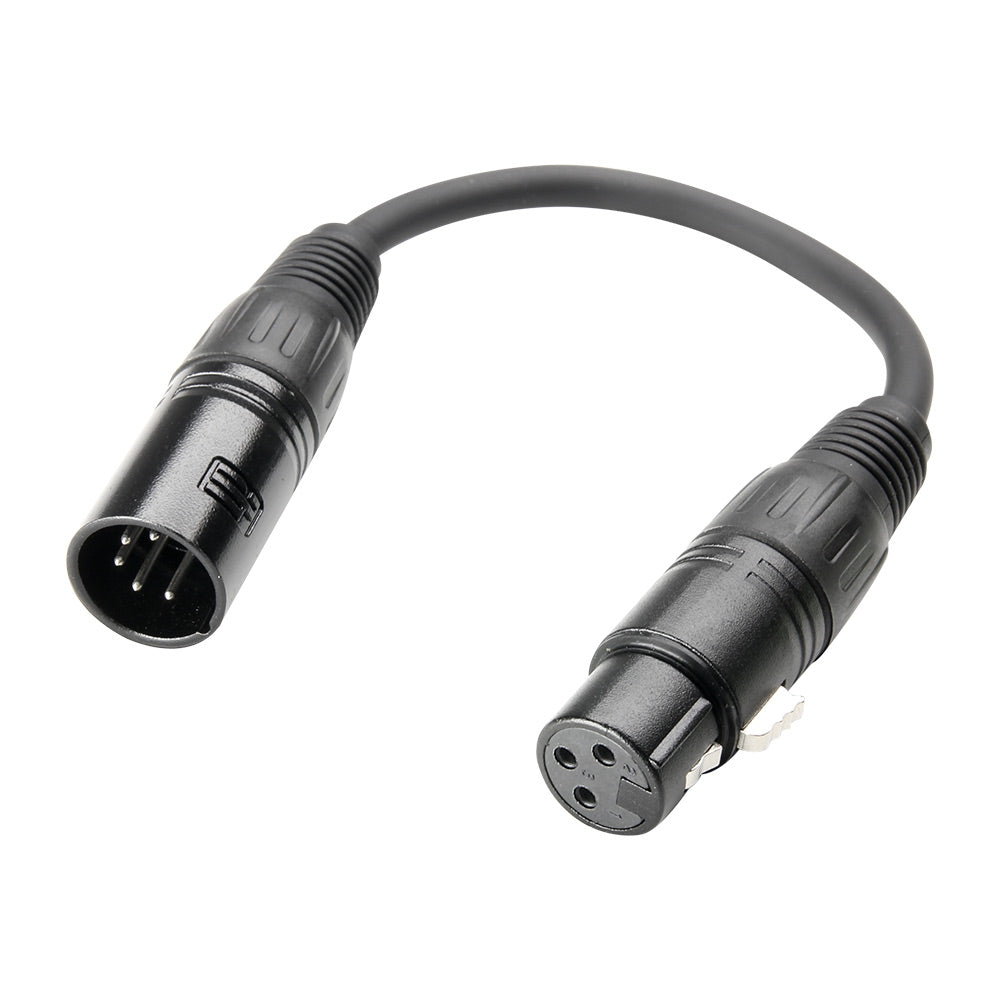

Adapter Kabel DMX XLR Han 5 Pol til XLR Hun 3 Pol

Highly flexible DMX adapter cable with three-pin and five-pin XLR plugs.

• Typ: DMX AES/EBU Cable
• Color: black
• Overall diameter: 5.8 mm +/- 0.2 mm
• Conductor area: 0,22 mm²
• AWG (American Wire Gauge): 24
• Conductor material: bare copper, OFC
• Composition of conductor: 28x 0,10mm
• Screen material: copper wire screen
• Screen: Braided wound
• Conductor resistance: 53Ohm / km
• Capacity: 68 pF/m
• Overall jacket material: PVC mat

5-pole male

• Model name: 7850-5POL
• Manufacturer: Adam Hall
• Product type: XLR Plug
• Type: XLR
• Number of poles: 5
• Gender: male
• Cable diameter: 4 - 7 mm
• Colour marking: -
• Contact surface: Nickel
• Connection type: Solder contact
• Colour: Black
• Housing: Zinc -ally casting
• Clamping sleeve: POM
• Dimensions (L x Ø ): 67.0 x 19.0 mm

3-pole female

• Model name: 7849
• Manufacturer: Adam Hall
• Product type: XLR Plug
• Type: XLR
• Number of poles: 3
• Gender: female
• Cable diameter: 4 - 7 mm
• Colour marking: -
• Contact surface: Nickel
• Connection type: Solder contact
• Colour: Black
• Housing: Zinc-ally casting
• Clamping sleeve: POM
• Dimensions (L x Ø ): 70.0 x 19.0 mm
