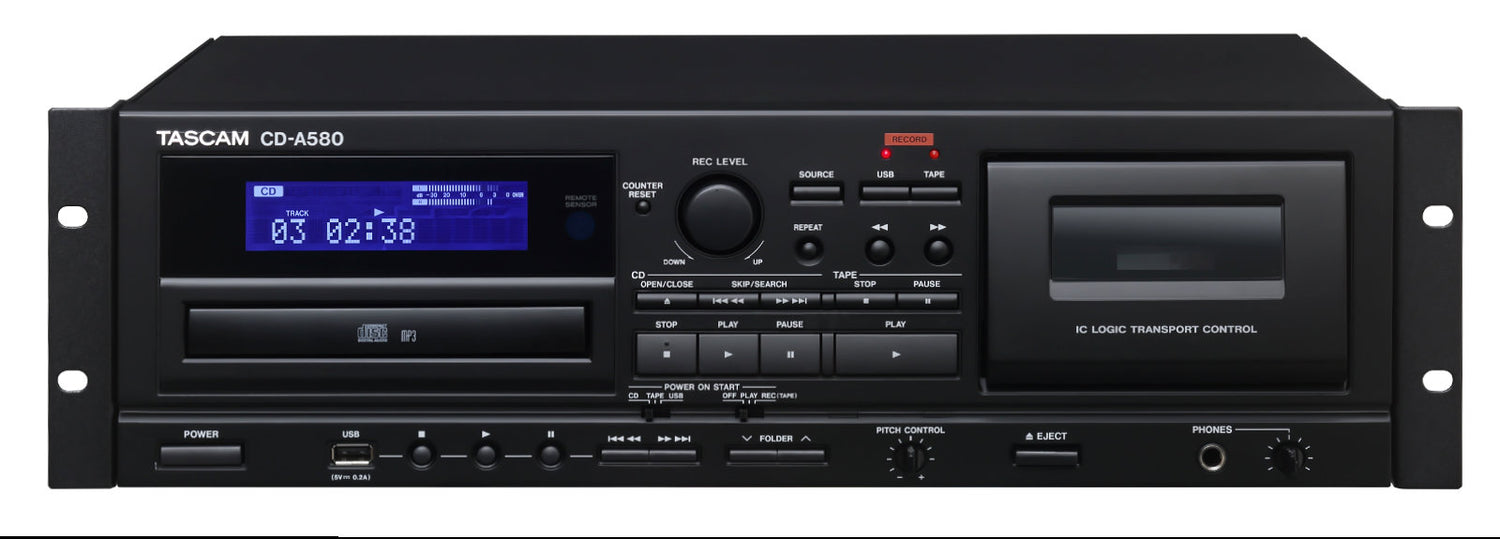

Tascam CD-A580 v2 CD och kassettspelare

Tascam CD-A580 v2 CD och kassettspelare

The Multi-Format Problem Solver for Audio Playback, Recording and Archiving

CD-A580 V2 får ut det mesta av två mycket populära konsumentljudformat, ljudkassett och ljud-cd, genom att kombinera dem med en USB-minnesinspelare/-spelare till ett attraktivt paket som levererar både funktion och värde. Du kan använda antingen källa för uppspelning, spela in till kassett eller USB-minne, eller dra nytta av dubbningsfunktioner för att göra kopior från cd eller kassett.

Enheten har RCA obalanserade ingångar och utgångar samt en hörlursutgång med nivåkontroll. Den är perfekt för installationer i hallar, hotell och restauranger, för DJs, bandrepetitioner, dans-/sportanläggningar och mycket mer. En trådlös fjärrkontroll medföljer också.

Cassette deck

Cassette mechanism with IC logic transport control

Dubbing function allows to record from CD

±10% pitch control

Plays C-10 to C-90 cassettes

Playback: Type I (normal), Type II (high position), Type IV (metal)

Recording: Type I (normal), Type II (high position)

Power-on recording/playback function

CD player

Plays CD-R and CD-RW in CD-DA and data formats (MP3)

Shuffle playback, Program playback

Various repeat modes (Single/All/Program)

Playback modes when dubbing: Program/Shuffle/Repeat

Anti-shock memory (2 seconds)

Power-on playback function

USB memory recorder/player

Recording to MP3 files from CD, cassette or line input

MP3 playback (supports folders)

Shuffle playback, Program playback

Folder repeat playback

Manual file division when recording from tapes or line input

Automatic file division when recording from CD

Power-on playback function

General

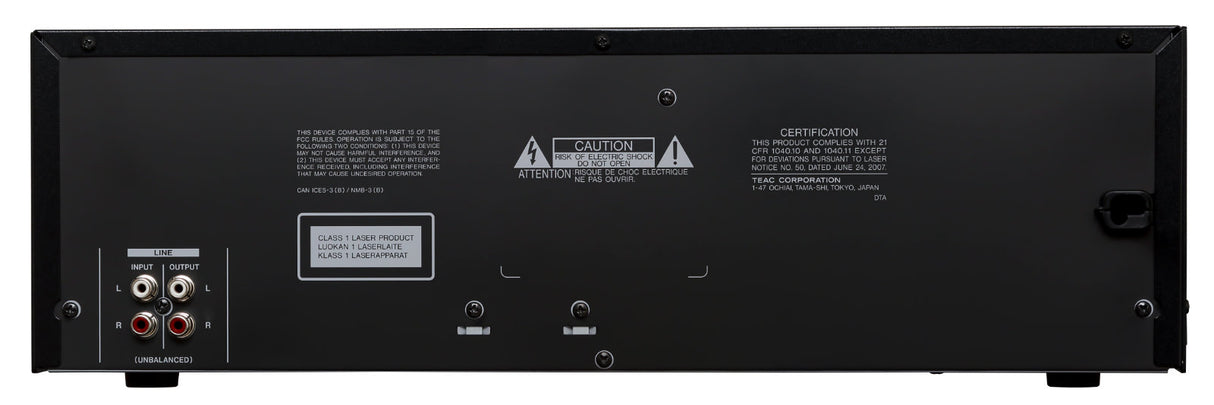

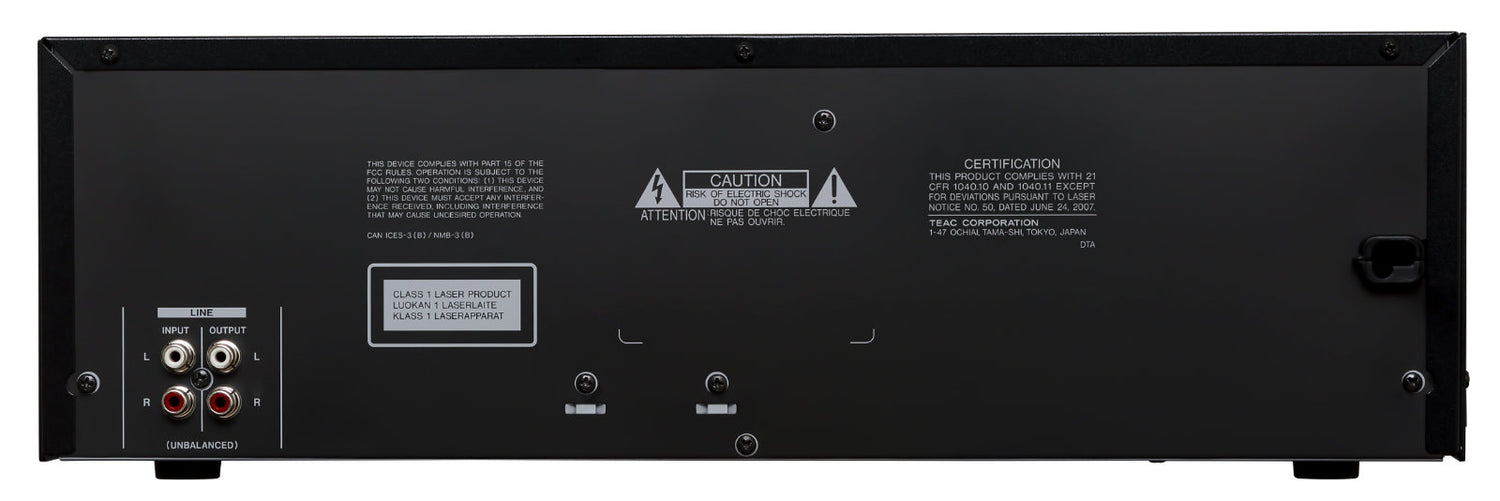

RCA unbalanced analogue inputs and outputs

Headphones output with level control

LC display with level meters

Wireless remote control unit included as standard

3U rack-mountable chassis

Ratings (cassette deck)

Track system: 2-channel, stereo

Heads: Record/playback head ×1, erase head ×1

Supported cassette types: C-10 - C-90

Supported tape types: Playback: Normal (TYPE I), Chrome (TYPE II), Metal (TYPE IV)

Recording: Normal (TYPE I), Chrome (TYPE II)

Tape speed: 4.76 cm/s

Motor: DC servo motor

Pitch Control: ±10 % (playback only)

Fast winding time: Approx. 120 seconds for C-60 tape

Audio performance (cassette deck)

Wow and flutter: 0.25 % (WRMS)

Frequency response: 50 Hz - 12.5 kHz ±4 dB (Chrome, Normal)

S/N ratio: 59 dB (max. input level, A-weighted)

Analogue inputs and outputs (cassette deck)

Line input (unbalanced): RCA

Nominal input level: -4.5 dBu (0.46 V)

Input impedance: >50 kOhm

Line output (unbalanced): RCA

Nominal output level: -4.5 dBu (0.46 V)

Nominal output impedance: >50 kOhm

Ratings (CD player)

Supported disc types: CD, CD-R, CD-RW (12 cm, 8 cm)

Supported disc formats: Audio CD

File format: CD-DA

Sampling frequency: 44.1 kHz

Quantization bit rate: 16-bit

Audio channels: 2

Data CD (ISO 9660 Level 1/Level 2)

File format: MP3

Modes: Stereo, Joint Stereo, Dual Channel, Mono

Sampling frequency: 16 kHz - 48 kHz

Bit rates: 8 kbit/s - 320 kbit/s

Not compatible with DRM (Digital Rights Management)

Audio performance (CD player)

Frequency response: 20 Hz - 20 kHz, ±2 dB

Distortion (THD + N):

S/N Ratio: >87 dB (IHF-A)

Analogue output (CD player)

Maximum output level: +6 dBV (2 V)

Ratings (USB recorder/player)

Playback:

File format: MP3

Sampling frequency: 16 kHz - 48 kHz

Bit rate: 8 kbit/s - 320 kbit/s

Not compatible with DRM (Digital Rights Management)

Recording:

File format: MP3

Sampling frequency: 44.1 kHz

Bit rate: 128 kbit/s

Folder support: up to 8 levels

Audio Performance (USB recorder/player)

Playback:

Frequency response: 20 Hz - 20 kHz (±2 dB)

S/N ratio: >85 dB

Recording:

Frequency response: CD -> USB: 20 Hz - 15 kHz (±3 dB)

LINE IN -> USB: 100 Hz - 15 kHz (±3 dB)

S/N ratio: >85dB

Analogue input and output (USB recorder/player)

Nominal input level (RCA): -4.5 dBu (0.46 V)

Maximum output level (RCA): +6 dBV (2.0 V)

USB port: USB 2.0 FULL SPEED (12 Mbit/s)

Connector: USB A-type

Headphones output:

Connector: 6.3-mm stereo jack

Nominal output level: 10 mW + 10 mW

Distortion (THD+N): 0.1 % (32 Ohm, CD MONITOR)

Power supply and other specifications

Power: AC 230 V, 50-60 Hz

Power Consumption: 13 W

Dimensions (W × H × D): 483 mm × 139 mm × 290 mm

Weight: 6.0 kg

Permissible operating temperature: 5-35 °C

Supplied accessories

Remote control (RC-1329)

2 AAA batteries

1 rack mounting screw kit

Owner’s manual
