Tascam BD-MP1 mk2 Blu Ray och DVD-spelare

Tascam BD-MP1 Mk2 Blu Ray-spelare

Imponerande bildkvalitet, förbluffande ljud och Videospelarens arbetshäst

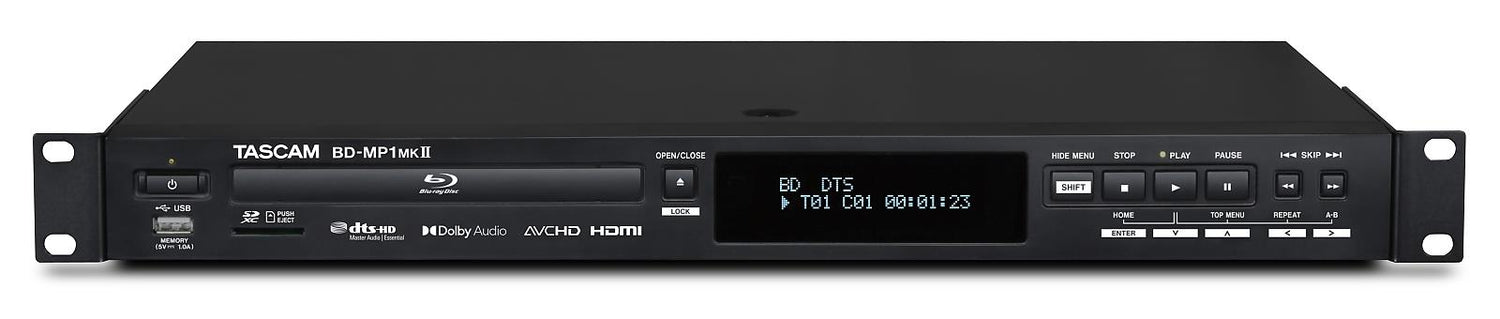

BD-MP1MKII är en robust multimedia-videospelare i en enkel rackplats för professionella applikationer såsom permanent installation och touring.

Baserat på framgången med Tascam BD-01U och BD-MP1 kan denna högupplösta uppspelningsenhet styras via LAN, RS-232C och en trådlös fjärrkontroll,

vilket gör den till en idealisk komponent i integrerade mediasystem och en pålitlig videospelare för kommersiell AV, utbildning, kyrkor, styrelserum eller live-touring.

Uppspelning från flera medietyper

Den mångsidiga BD-MP1MKII kan automatiskt spela upp innehåll i en lång rad filformat via någon av de tre frontpanelens medieingångar, inklusive Blu-ray, DVD, CD, USB Flash-minne och SD-kort.

BD-MP1MKII erbjuder enkelkällsuppspelning för en mängd medie- och filformat, och eliminerar behovet av separata ljud-/videospelarenheter i en installation.

Dess omfattande utbud av filformat inkluderar

videoformat såsom MPEG1, MPEG2, MPEG4 AVC, VC-1, AVCHD och WMV,

bildformat såsom JPEG, GIF och PNG samt

ljudformat såsom LPCM, MP3, AAC och WMA.

Single-rackspace Blu-ray, DVD, CD and solid-state player

Controllable via Ethernet network (Telnet), RS-232C or wireless remote control

Plays video and audio material stored on following media:

BD25, BD50, BD-ROM, BD-R, BD-RE

DVD, DVD+R, DVD-R, DVD+RW, DVD-RW

CD, CD-R, CD-RW

SD cards (up to 512 GB)

USB flash media

Support for a wide range of file formats

NTSC/PAL conversion

BD-Live function

HDMI high-definition audio/video out, supports HDMI CEC which allows the connected display to be switched on/off in correct order

Separate 7.1 surround sound outputs

XLR balanced and RCA unbalanced stereo outputs

Up to 40 dB attenuation for analogue and digital stereo outputs

Coaxial digital audio output (SPDIF, Dolby, DTS)

Power-on play (start playback when power comes up)

Resume (continue after power cycle)

Repeat (chapter, title, A-B)

Instant replay (10 seconds)

Lock function (panel, tray, or IR remote)

On-screen information switchable on or off

Dimmable front-panel display

Firmware update via disc or USB memory

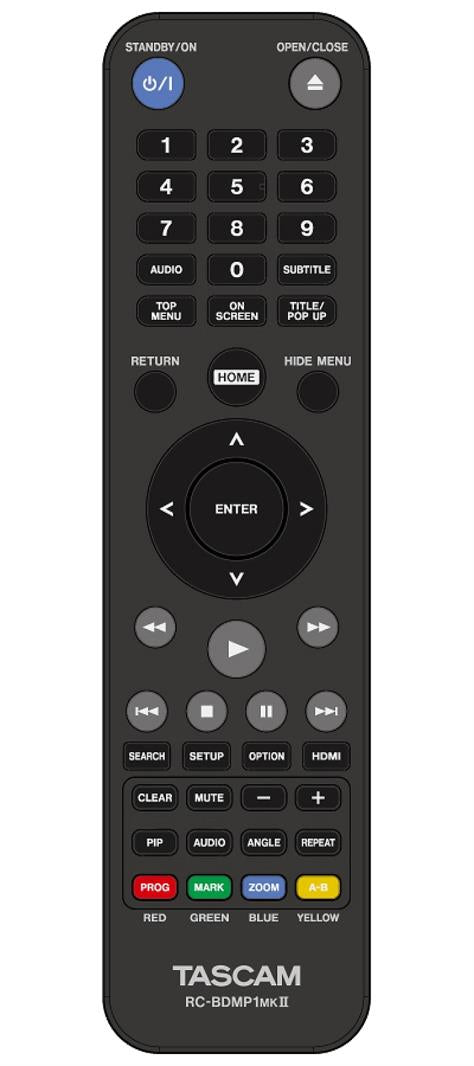

Infrared remote control included as standard

Media: Blu-ray

BD25, BD50, BD-ROM, BD-R (SL, DL), BD-RE (SL, DL) (Blu-ray 3D supported)

Disc formats: BDMV, BDAV

DVD: DVD, DVD+R (SL, DL), DVD-R (SL, DL), DVD+RW, DVD-RW

Disc formats: DVD-Video, DVD-VR, AVCHD

CD: CD-DA, CD-R, CD-RW

SD: SD card with up to 512 GB total capacity

Supported file systems: FAT16, FAT32, exFAT, NTFS

USB: USB flash drive (mass storage class) with up to 2 TB total capacity

Supported file systems: FAT16, FAT32, exFAT, NTFS

Supported file formats: Video

3GP, ASF, AVI, DAT, M2TS, MKV, MOV, MP4, MPG, OGM, RMVB, TP, TS, WMV

Audio: AAC, APE, FLAC, MP3, WAV, WMA

Still image: JPEG, GIF, PNG

Subtitles: SUB, ASS, IDX+SUB

Audio resolution: BD/DVD/USB/SD

Sampling frequency: 44.1/48/64/88.2/96/176.4/192 kHz

Bit width: 16/24 bit

CD

Sampling frequency: 44.1/48 kHz

Bit width: 16/24 bit

MP3/WMA

Sampling frequency: 32/44.1/48 kHz

Bit width: 16/24 bit

MP3 bit rate: 112-320 kbit/s

WMA bit rate: 48-192 kbit/s

Video resolutions :Auto, 480i/576i, 480p/576p, 720p, 1080p

Aspect ratios: 16:9 Full, 16:9 Normal, 4:3 Pan & Scan, 4:3 Letterbox

Colour systems: NTSC, PAL, Multi (if supported by TV)

HDMI colour space: RGB PC Level, RGB Video Level, YCbCr (4:4:4), YCbCr (4:2:2)

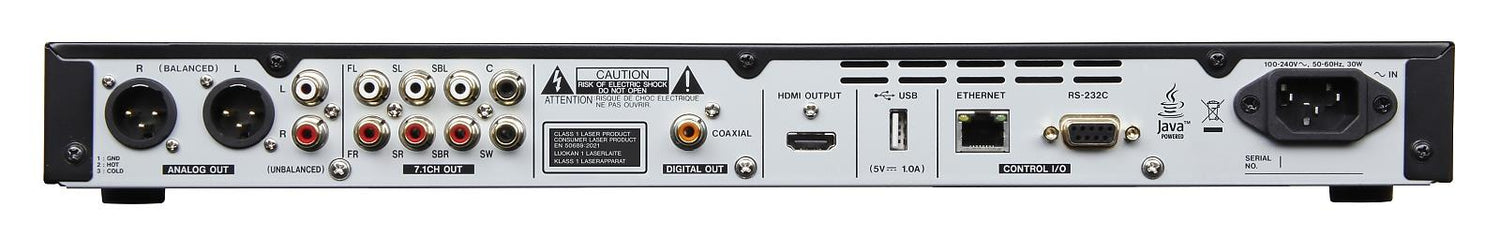

Analogue audio outputs: Balanced XLR-3-32 (1: GND, 2: HOT, 3: COLD)

Nominal output level: +4 dBu (1.23 Vrms)

Maximum output level: +20 dBu (7.75 Vrms)

Output impedance: ≤200 Ohm

Unbalanced: RCA pin jacks

Nominal output level: -10 dBV (0.316 Vrms)

Maximum output level: +6 dBV (2.0 Vrms)

Output impedance: ≤210 Ohm

7.18 × RCA pin jacks

Nominal output level: -10 dBV (0.316 Vrms)

Maximum output level: +6 dBV (2.0 Vrms)

Output impedance: ≤210 Ohm

Audio performance: 0 dBu ≙ 0.775 Vrms, 0 dBV ≙ 1 Vrms

Frequency response: 20 Hz - 20 kHz, ±0.5 dB

Signal-to-noise ratio: ≥ 96 dB (JEITA)

Total harmonic distortion: ≤ 0.03 % (1 kHZ, JEITA)

Dynamic range: ≥ 96 dB (JEITA)

Channel separation: ≥ 89 dB

JEITA: Compliant with JEITA CP-2150

Digital outputs:

HDMI output:19-pin HDMI, Type A

Coaxial audio output: RCA pin jack

Format: IEC 60958-3 (SPDIF)

Output impedance: 75 Ohm

Other inputs and outputs: RS-232 CD-sub 9-pin

Mode: Full duplex

Baud rate: 9600, 38400 bits/s (selectable)

Ethernet: RJ45

Supported standards: 10BASE-T, 100BASE-TX

Cable requirements: Category 5e or better

USB: USB A-type (1 × front, 1 × rear)

Protocol: USB 2.0 compliant

Rated supply voltage: DC 5 V, 1 A

Power supply and other specifications:

Power connector: IEC receptacle

Power requirements: AC 100-240 V, 50/60 Hz

Power consumption: 30 W (typical)< 0.5 W (standby)

Dimensions (W × H × D): 483 mm × 44 mm × 281 mm

Weight: 3 kg

Permissible operating temperature: 5-35 °C

Permissible operating humidity: 25-85 %, no condensation

Included accessories: IR remote control (RC-BDMP1), AC power cable, rack-mounting kit (4 screws, 4 washers), Owner's manual
