Practical distributor with 2 inputs and 5 outputs
- Extends every mixer with additional outputs
- 2 stereo XLR inputs

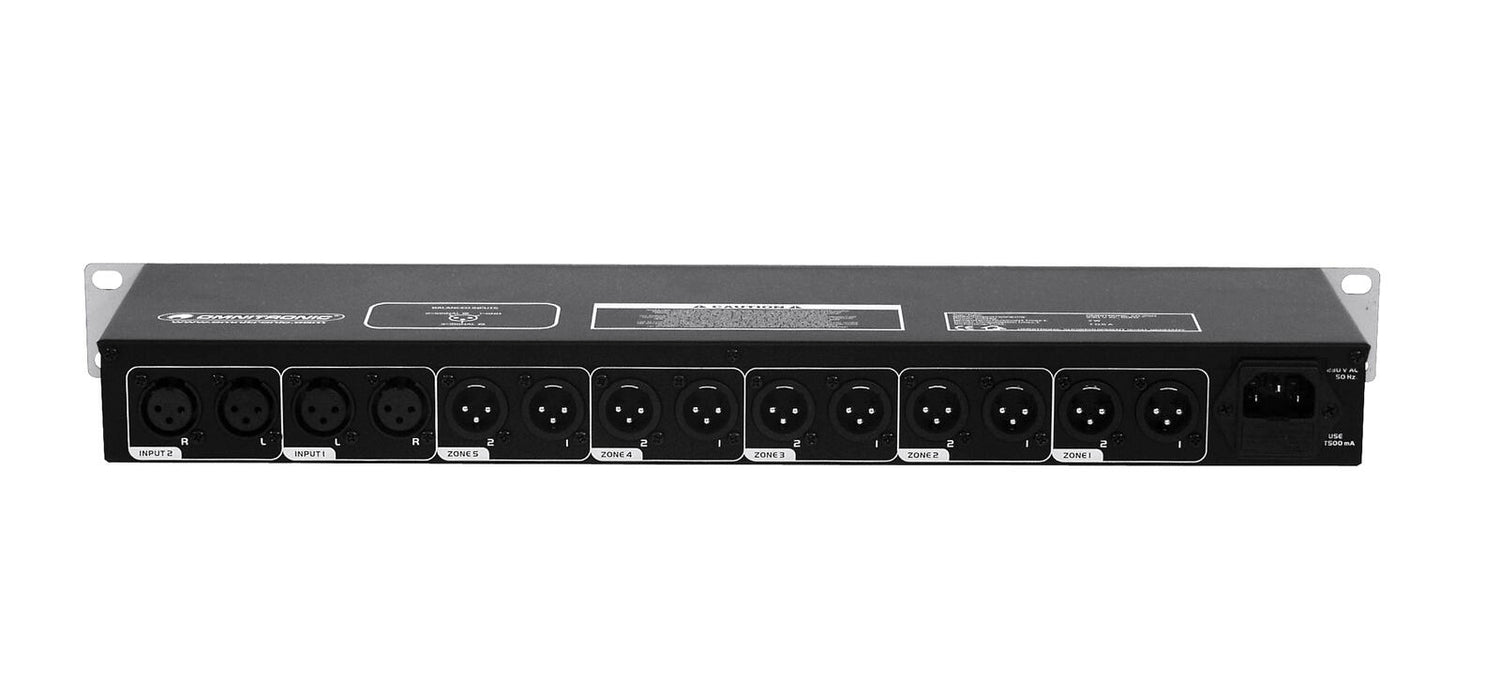

- 5 stereo zone XLR outputs

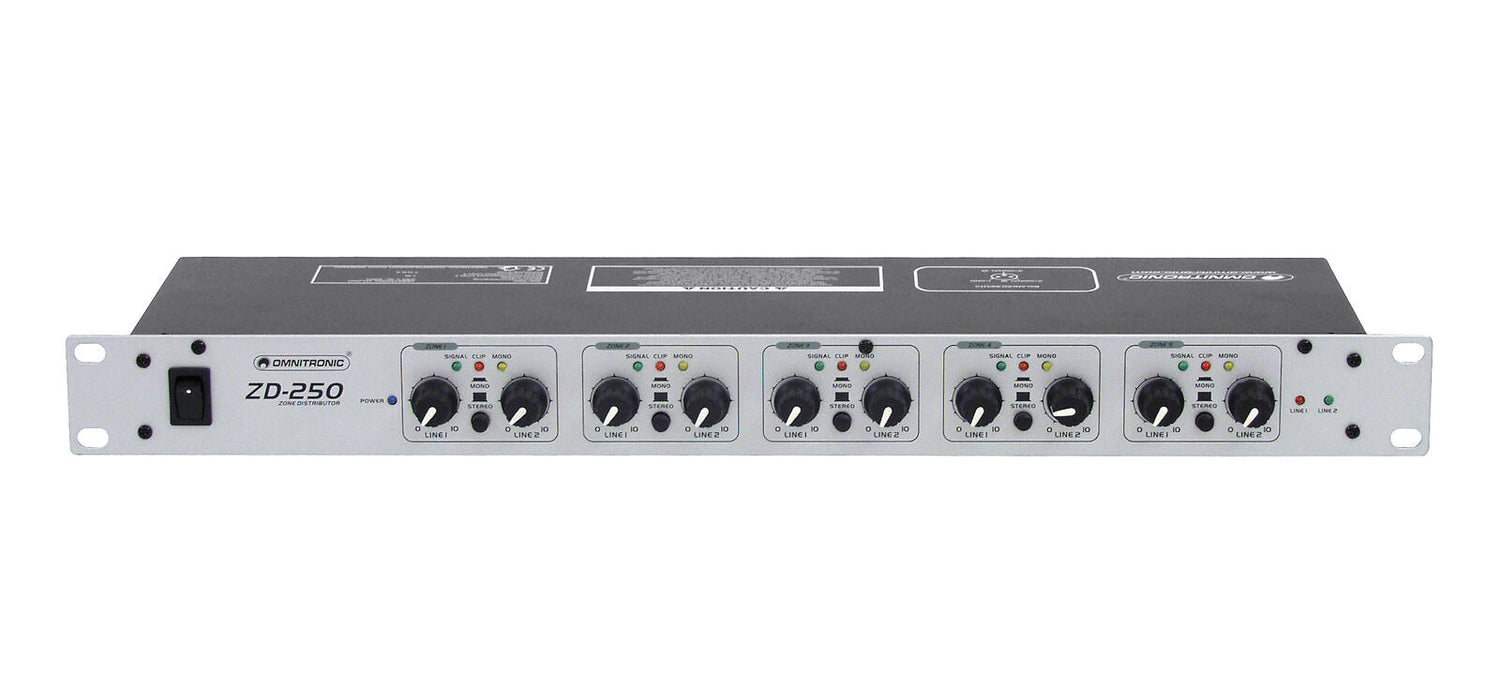

- Each zone with level controls for both inputs and mono switch
- LED display of signal input, distortion and mono/stereo mode
- (19") 48.3 cm rack installation 1 U
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms
Scope of delivery
- 1 x device
- 1 x power cord
- 1 x user manual
| Power supply: | 115/230 V AC, 50/60 Hz |
| Power consumption: | 7.00 W |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| S/N ratio: | >69 dB |
| THD: | <0.2 % at 1 kHz |
| Impedance: | Input: 45.1 kOhm Output: 125 Ohm |
| Gain: | 15 dB |
| Max. level: | Input: +9 dB Output: +22 dB |
| Color: | Silver |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48.3 cm Depth: 12.6 cm Height: 4.45 cm |
| Weight: | 2.35 kg |
