OMNITRONIC LH-015 2-channel Mic/Line Mixer
1
av
3
Laddar...
677:-
Stk. pris kr
/
Inte tillgänglig
Inkl. moms
Frakt 69 kr. (fri frakt över 2499 kr.)
Betalningsmetoder accepterade
Beskrivning
Beskrivning

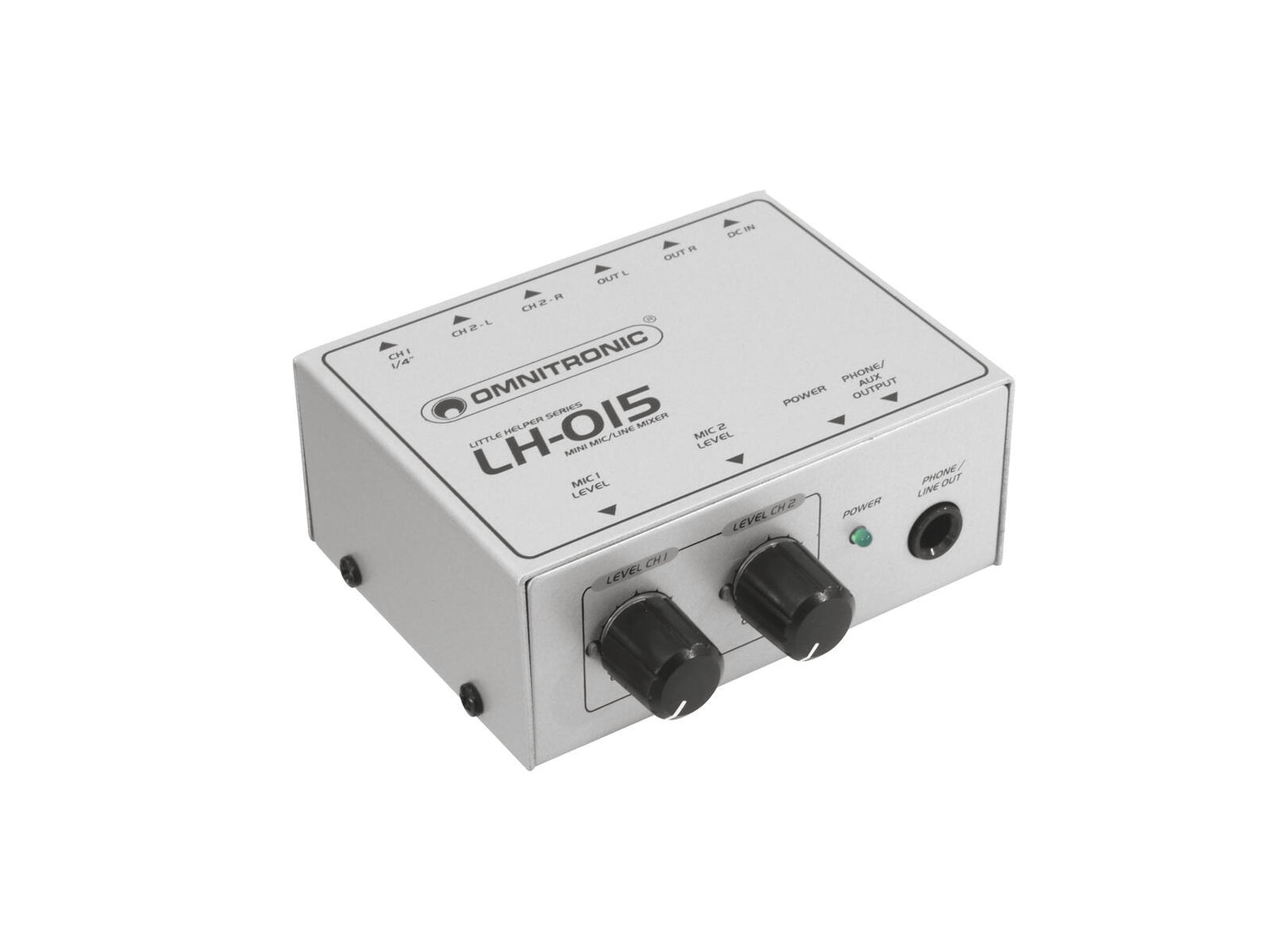

2-channel miniature mic/line mixer
- Distributes the signal of 2 audio sources (microphones, instruments or line level units) to 1 mono output
- 1 mono mic/line input (6.3 mm jack) with separate level control
- 1 stereo line input (RCA) input with separate level control

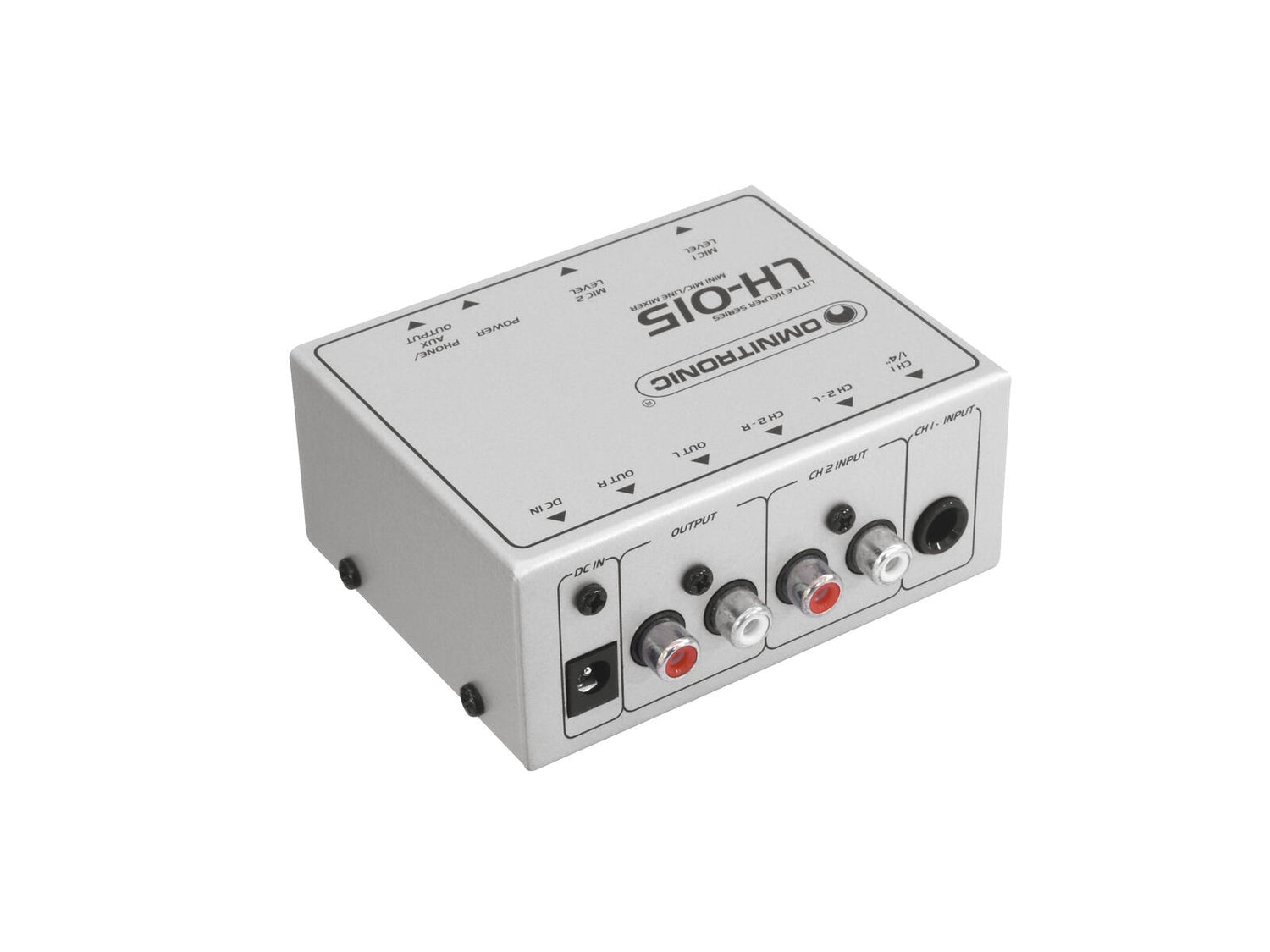

- 2 mono master outputs (RCA and 6.3 mm jack) e.g. for PA amplifier, mixer and headphones
Scope of delivery
- 1 x user manual

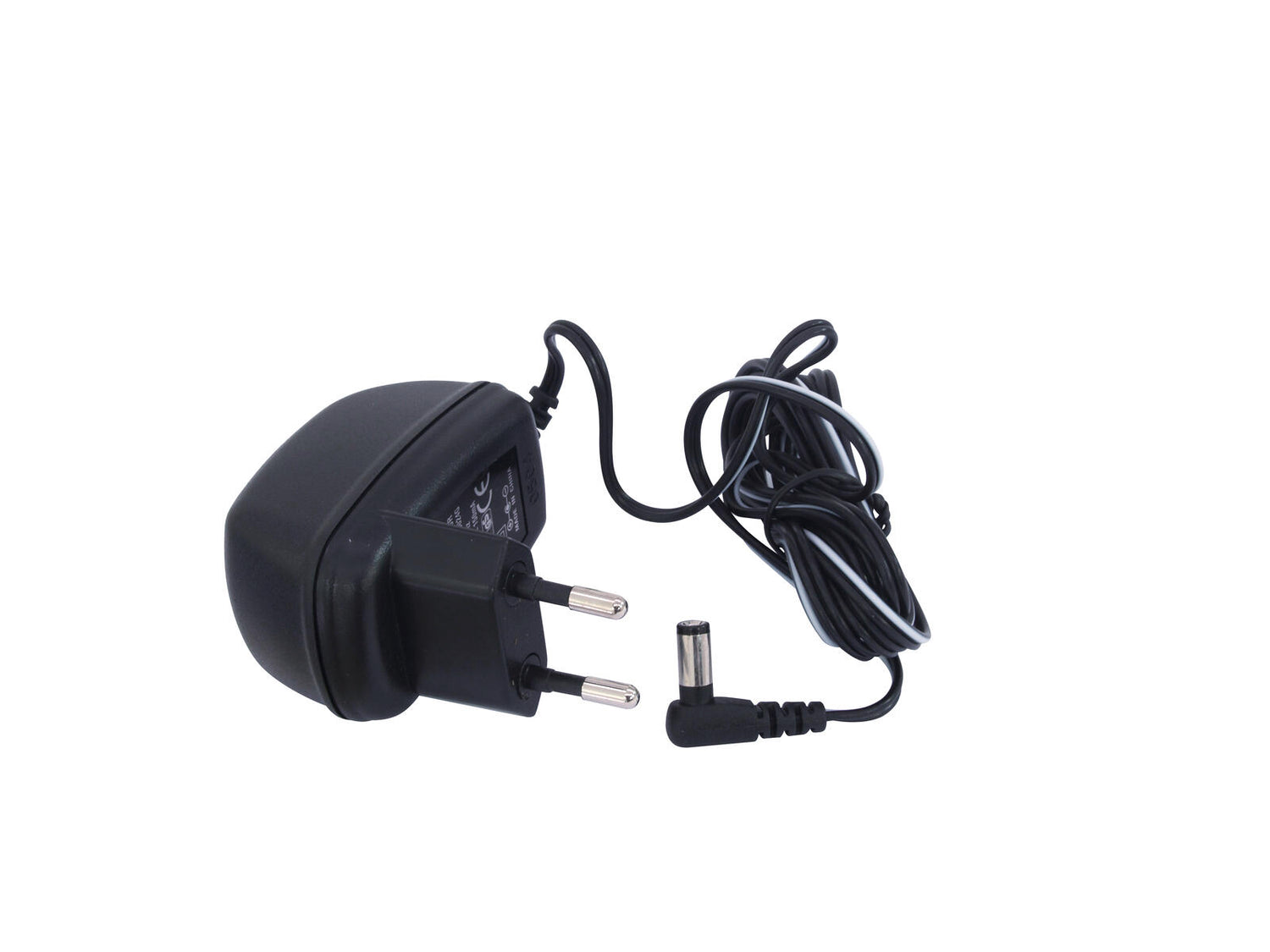

- 1 x external mains adapter
- 4 x foot
- 1 x mixer
| Power supply: | 12V 150 mA |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >100 dB |
| Impedance: | Input: microphone 10 kOhm Input: line 20 kOhm Output: 50 Ohm |
| Gain: | Microphone 32 dB Line 20 dB |
| Dimensions: | Width: 9.5 cm Depth: 7.3 cm Height: 4 cm |
| Weight: | 0.50 kg |
