EUROLITE Set QuickDMX 1x Transmitter + 2x Receiver
1
av
3
Laddar...
2 331:-
Stk. pris kr
/
Inte tillgänglig
Inkl. moms • B2B exkl. moms
Frakt 69 kr. (fri frakt över 2499 kr.)
Betalningsmetoder accepterade

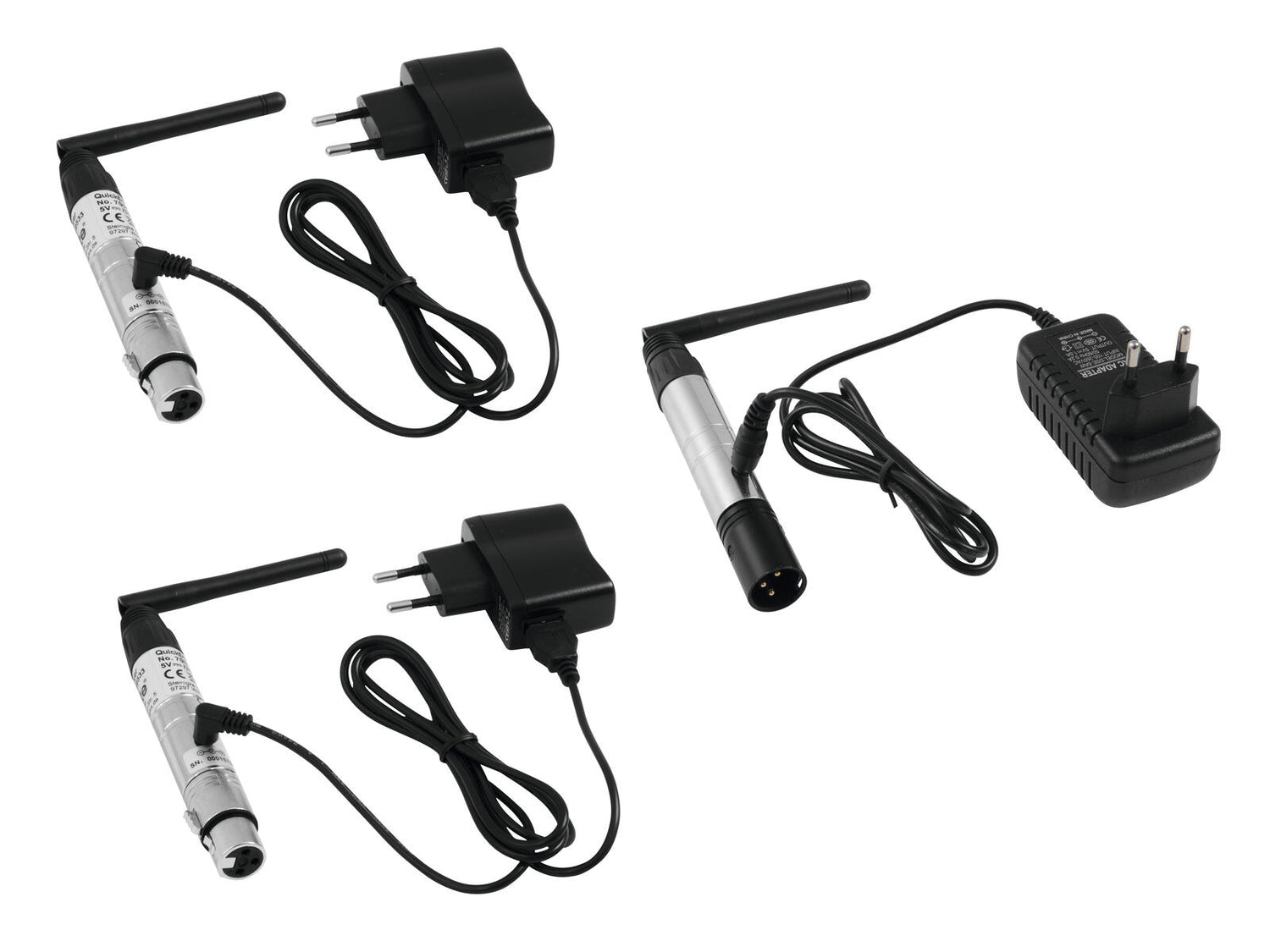

Wireless DMX transmitter with 2 compact wireless DMX receivers

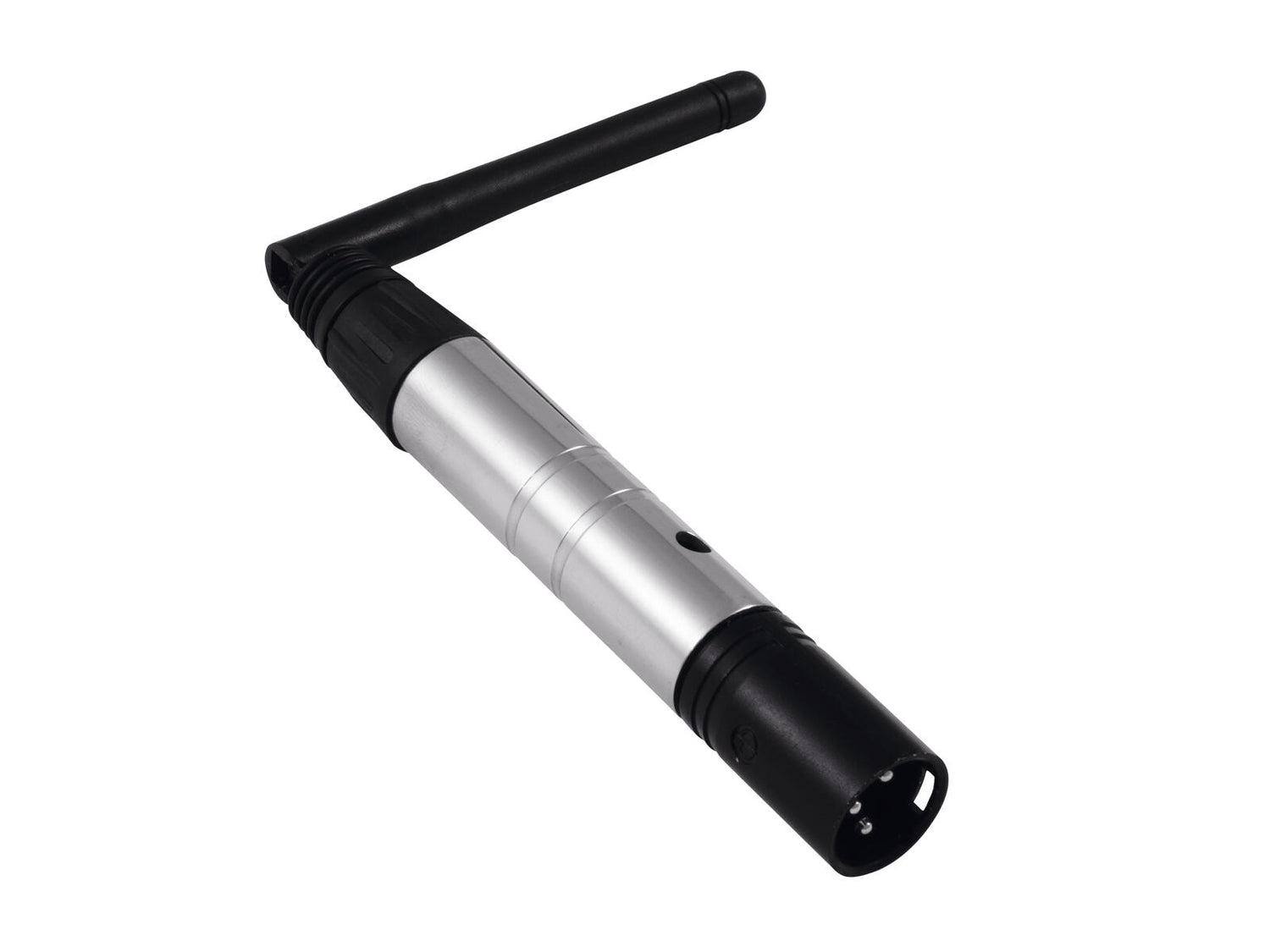

EUROLITE QuickDMX Wireless Transmitter
Compact wireless DMX transmitter 2.4 GHz
- User-friendly 3-pin XLR adapter (male) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Can transmit up to 512 DMX channels
- Control via QuickDMX; DMX; plug and play
- Operating range up to 400m
- Up to 6 transmitters can be operated in parallel without interference

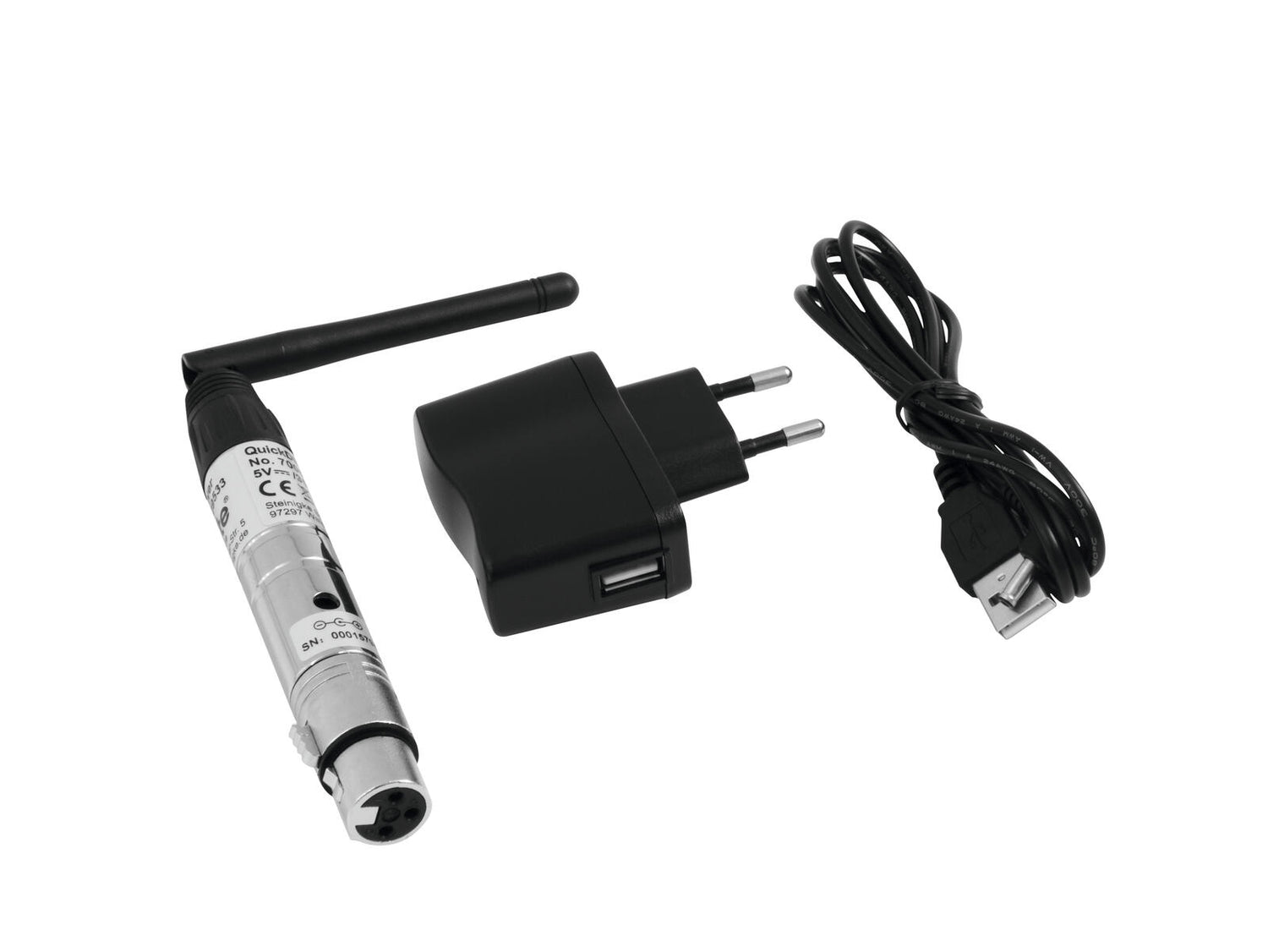

EUROLITE QuickDMX Wireless Receiver
Compact wireless DMX receiver 2.4 GHz
- User-friendly 3-pin XLR adapter (female) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Can receive and process up to 512 DMX channels
- Control via QuickDMX; plug and play
- Operating range up to 400m
- Up to 6 transmitters can be operated in parallel without interference
Scope of delivery
1 x EUROLITE QuickDMX Wireless Transmitter
- 1 x device
- 1 x user manual
- 1 x declaration of conformity
- 1 x external mains adapter
- 1 x USB cable
2 x EUROLITE QuickDMX Wireless Receiver
- 1 x device
- 1 x user manual
- 1 x declaration of conformity
- 1 x external mains adapter
- 1 x USB cable
| Weight: | 0.47 kg |
| EUROLITE QuickDMX Wireless Transmitter | |
| Power supply: | 100-240 V AC, 50/60 Hz 5V DC 1000 mA |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided) |
| DMX channels: | Output 512 |
| DMX input: | 1 x 3-pin XLR (M) |
| Control: | QuickDMX; DMX; plug and play |
| Range: | Range up to 400m |
| Carrier frequency: | 2.4 GHz |
| Parallel mode: | Max. 6 transmitter |
| RF power output: | 19 dBm |
| Modulation: | GFSK |
| Color: | Silver |
| Dimensions: | Length: 21.2 cm Diameter: Ø 1.8 cm |
| Weight: | 0.15 kg |
| EUROLITE QuickDMX Wireless Receiver | |
| Power supply: | 100-240 V AC, 50/60 Hz 5V DC 1000 mA |
| Power connection: | Mains input via coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided) |
| DMX channels: | Input 512 |
| DMX output: | 3-pin XLR (F) |
| Control: | QuickDMX; plug and play |
| Range: | Range up to 400m |
| Carrier frequency: | 2.4 GHz |
| Parallel mode: | Max. 6 transmitter |
| RF power output: | 19 dBm |
| Modulation: | GFSK |
| Color: | Silver |
| Dimensions: | Length: 21.2 cm Diameter: Ø 1.8 cm |
| Weight: | 0.16 kg |
