6 837:-
Stk. pris kr
/
Inte tillgänglig
Inkl. moms
Frakt 99 kr.
Beskrivning
Beskrivning

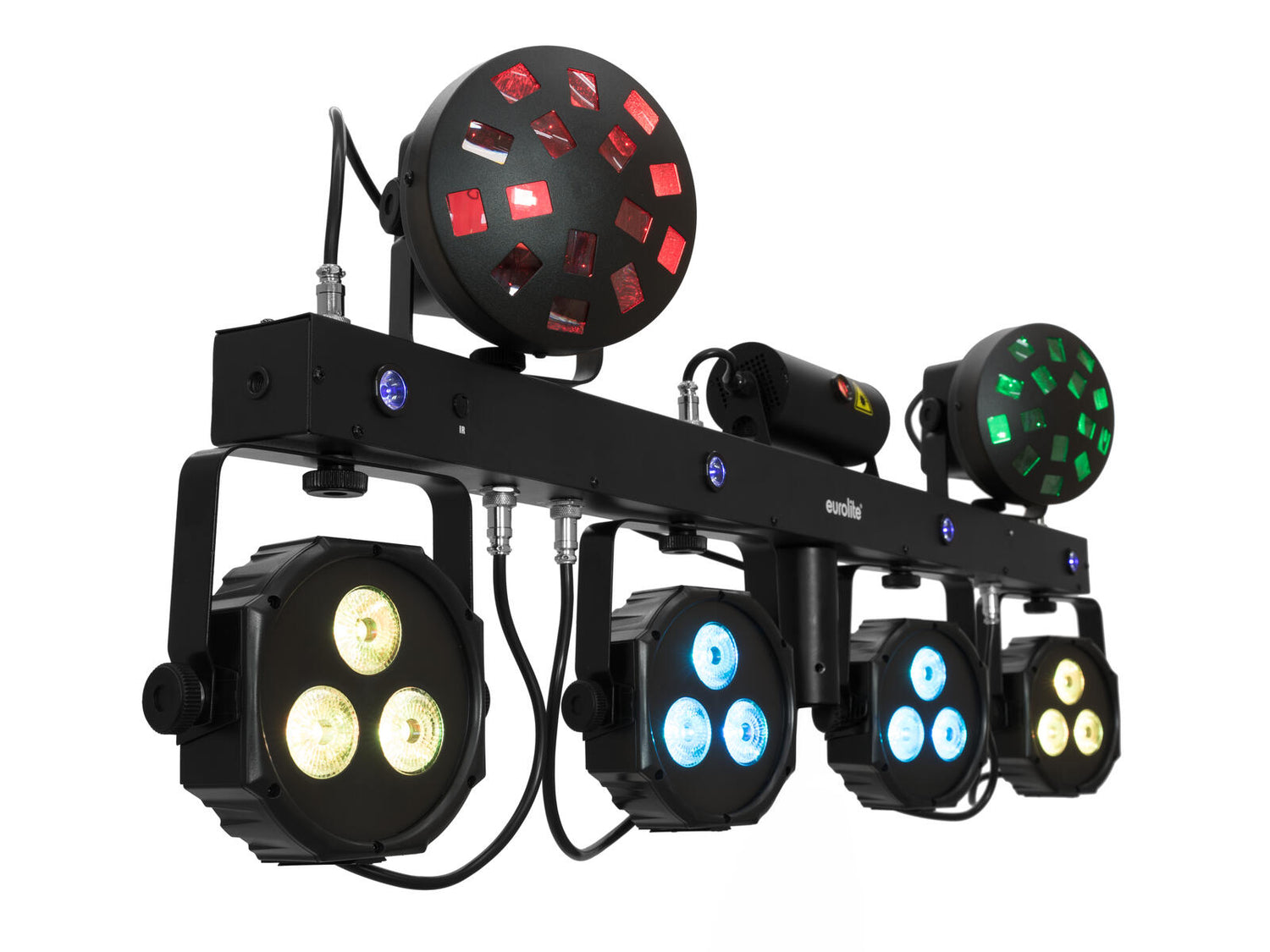

EUROLITE LED KLS Laser Bar Next FX Light Set
Bar with powerful spots, UV strobe LEDs, laser (RG, 2M), QuickDMX port and carrying bag
- 2 laser diodes project hundreds of red and green laser beams
- 2 rotating derbies for mirror ball effects
- Compact lightweight
- Crossbar with integrated DMX control unit and TV spigot for tripod installation
- When fog is used, this effect becomes especially attractive
- Dimmer electronic; color blend stepless; program selection
- 26 integrated show programs
- The device is cooled by cooling fan
- Control via DMX; stand-alone; sound to light via microphone; IR remote control; QuickDMX via USB (optional); wireless footswitch (optional)
- TV spigot
- With mounting bracket
- 3 digit 7-segment LED display
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; wedding/gala/events; mobile djs / entertainer; party room; restaurants, bars and hotels
- Application possibility: On stand
laser
- Laser
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
spotlight
- 3 LEDs 4 W SMD 9080 4in1 RGB/WW (homogenous color mix)
4 spots controlled separately - With a beam angle of 7°
light effect
- 4 LEDs 3 W SMD 8072 R/G/B/WW
lighting effects controlled separately - Multi beam effect; fan effect; flower effect
bar
- 4 LEDs 1.5 W SMD 8072 ultra violet (UV)
LEDs controlled separately - UV effect; strobe effect

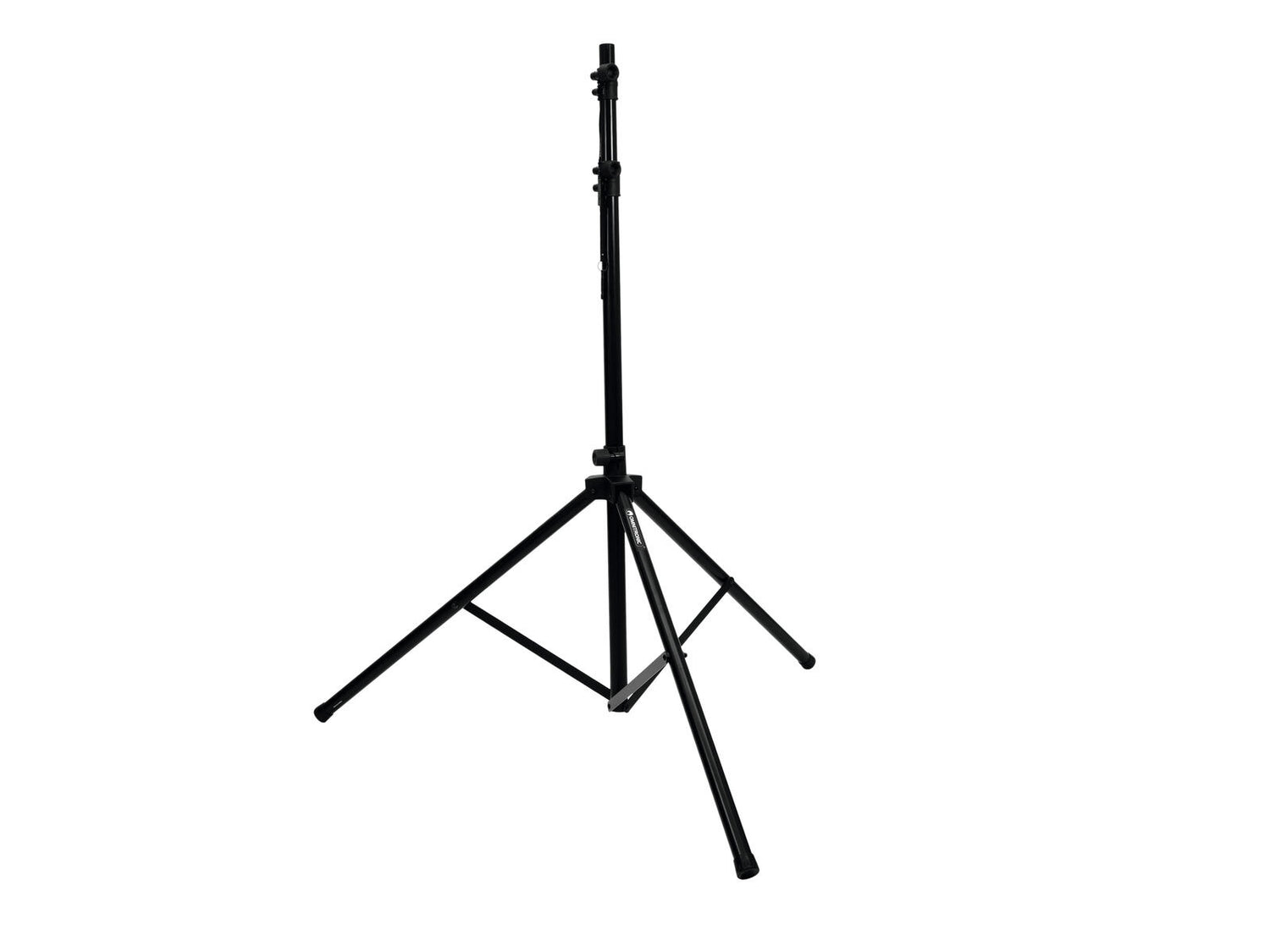

OMNITRONIC M-4 Speaker-System Stand
Aluminum speaker stand, height adjustable 140-345 cm, maximum load 18 kg
- Durable aluminum version
- Tube diameter: Ø 35 mm
- Adjustable height

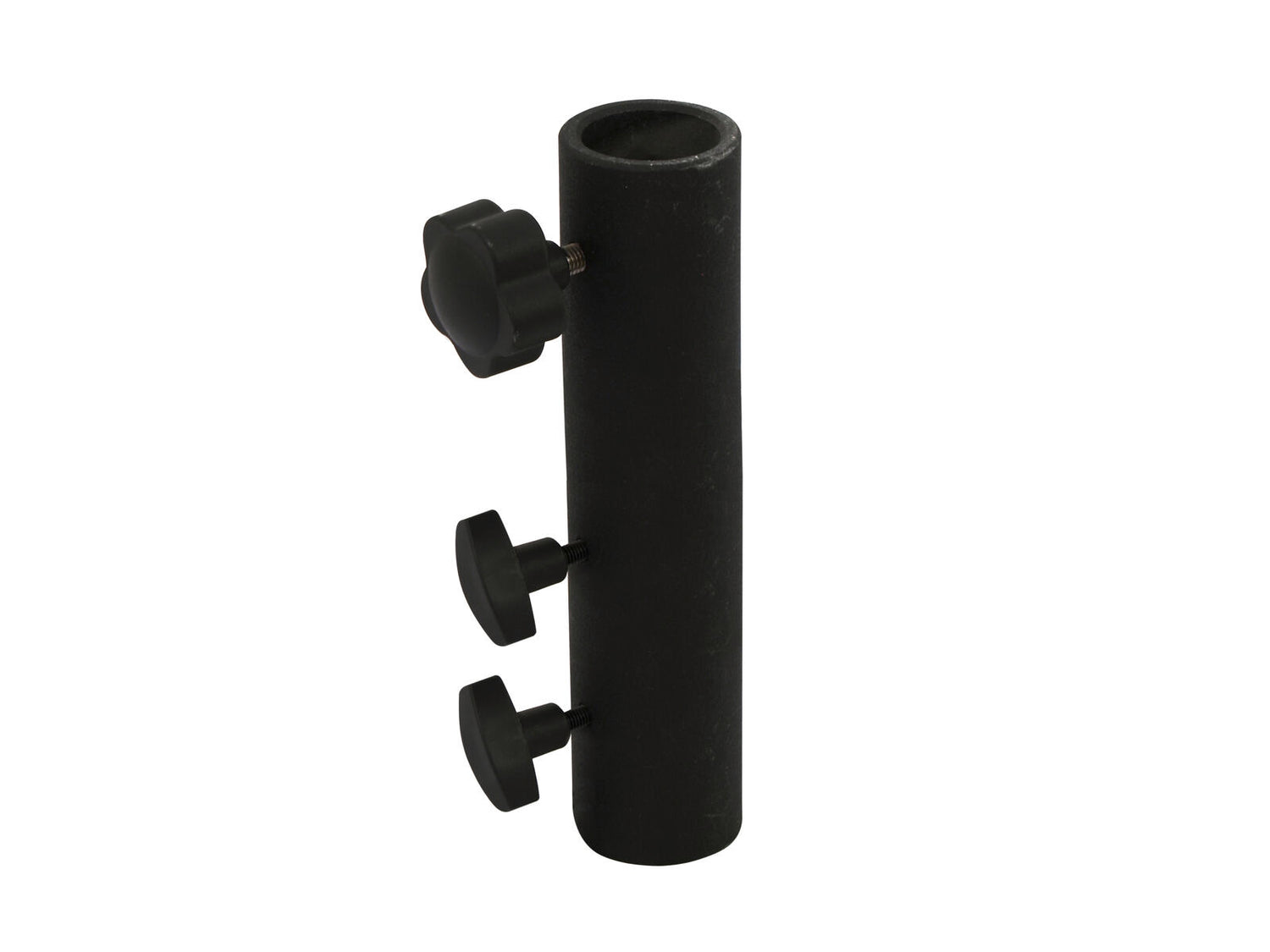

EUROLITE STV-3529 Adapter long
Massive adapter for 35 mm tube, 28 mm TV spigot, maximum load WLL 100 kg
- For stands with telescopic tube 35 mm
- Connection element for cross beam with 28 mm TV spigot
- With M6 and M8 fixation screw
- Heavy version for highest stability
- TV spigot
Scope of delivery

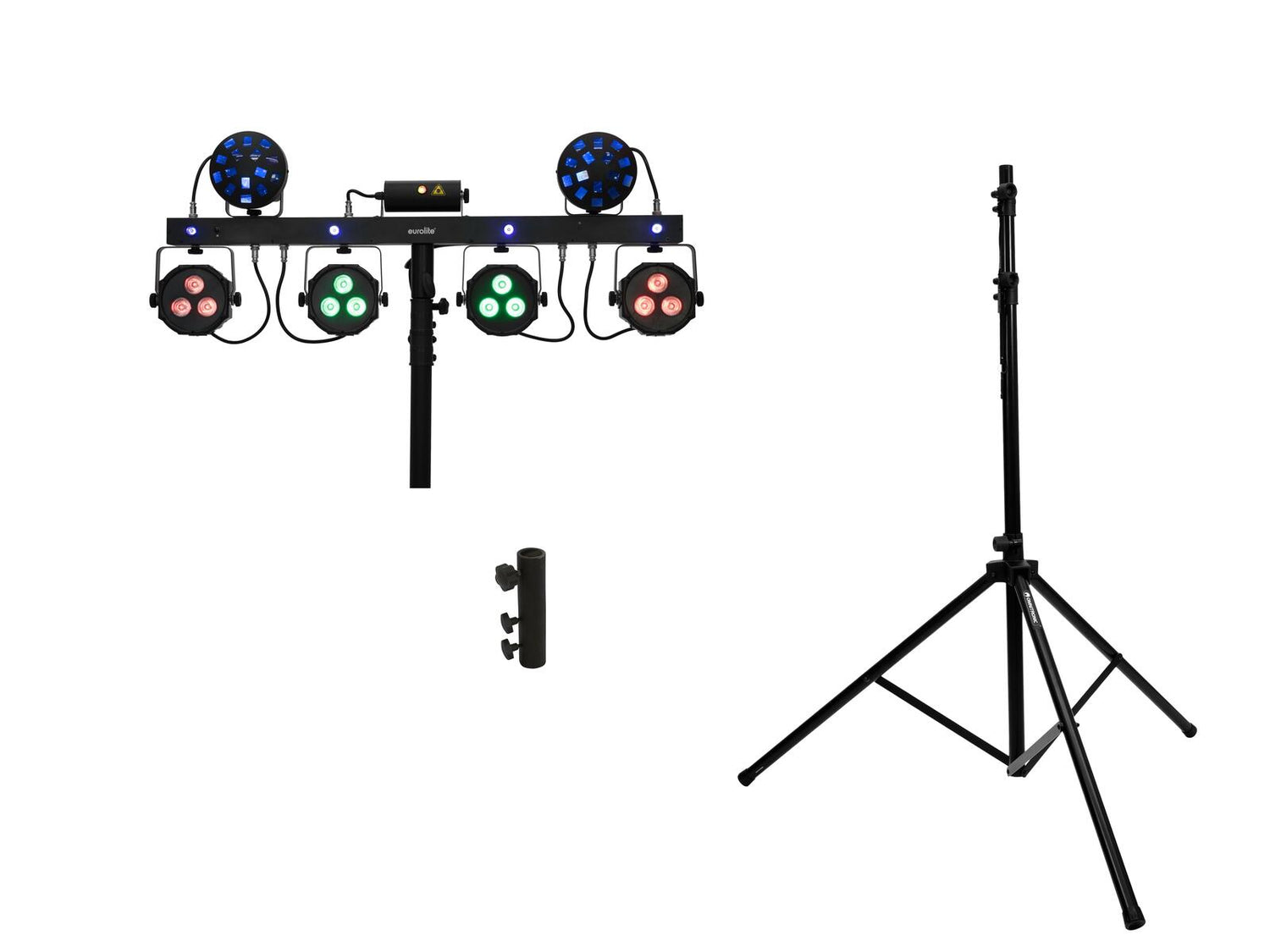

1 x EUROLITE LED KLS Laser Bar Next FX Light Set
- 1 x device
- 1 x user manual
- 1 x power cord
- 1 x bag
- 1 x declaration of conformity
- 1 x remote control
- 2 x mounting bracket
- 2 x knurled screw
- 2 x washer
- 1 x terminating plug (power)
1 x OMNITRONIC M-4 Speaker-System Stand
- 1 x user manual
1 x EUROLITE STV-3529 Adapter long
- 1 x device
- 1 x user manual
- 2 x knurled screw
| Weight: | 15.30 kg |
| EUROLITE LED KLS Laser Bar Next FX Light Set | |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 90 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Cable length: | 3 m |
| Power output: | 1 x P-Con (gray), mounting version |
| Fuse: | T 1 A fuse replaceable |
| Lamp type: | LED lamp |
| DMX channels: | 6; 8; 11; 21; 25; 29 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | DMX; stand-alone; sound to light via microphone; IR remote control; QuickDMX via USB (optional); wireless footswitch (optional) |
| Fixtures available for: | Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief |
| Housing color: | Black |
| Attachment system: | TV spigot Ø 28mm 2x mounting bracket |
| Display type: | 3 digit 7-segment LED display |
| Dimensions: | Width: 111 cm Depth: 15 cm Height: 41 cm |
| Weight: | 10.50 kg |
| Noise classification: | Class 2 (slight noise) |
| Remote control | |
| Battery: | Button cell 3.0 V CR2025 lithium manganese built-in |
| Laser | |
| Laser class: | 2M |
| Laser color: | R/G |
| Laser module: | Red (R) 100 mW 650nm Green (G) 30 mW 532nm |
| Light effect | |
| LED type: | 4 x 3 W SMD 8072 R/G/B/WW |
| Spotlight | |
| LED type: | 3 x 4 W SMD 9080 4in1 RGB/WW (homogenous color mix) |
| Beam angle (1/2 peak): | Spot 7° |
| Beam angle (1/10 peak): | Spot 20° |
| Bar | |
| LED type: | 4 x 1.5 W SMD 8072 ultra violet (UV) |
| Flash rate: | 0 - 30 Hz |
| OMNITRONIC M-4 Speaker-System Stand | |
| Maximum carrying capacity: | 18 kg |
| Tube diameter sector: | 38 - 35 mm |
| Height: | Maximum: 345 cm Minimum: 140 cm Adjustable in 10 steps with locking pin |
| Attachment system: | Ø 35mm |
| Type (general stands): | Speaker stand/manual |
| Material: | Aluminum |
| Color: | Black |
| Transport dimensions: | 140 cm x 13.5 cm |
| Weight: | 3.30 kg |
| EUROLITE STV-3529 Adapter long | |
| Maximum load BGV C1 (8-fold): | 50 kg |
| Maximum load WLL (4-fold): | 100 kg |
| Attachment system: | TV spigot Ø 28mm Ø 35mm |
| Type (general stands): | Accessory |
| Material: | Steel, 6 mm, powder-coated |
| Dimensions: | Width: 8.50 cm Depth: 5 cm Height: 19.50 cm |
| Weight: | 1.50 kg |
