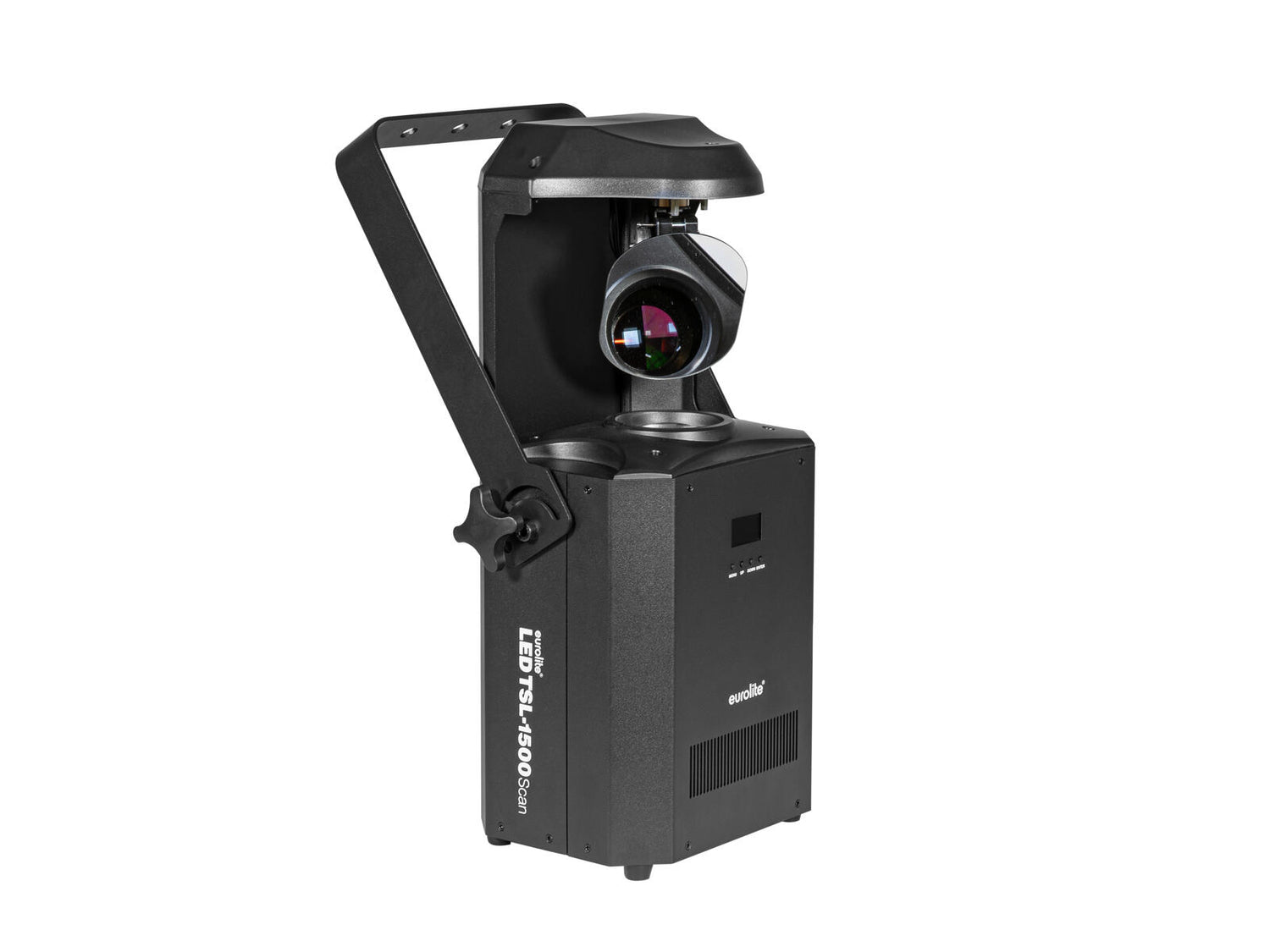

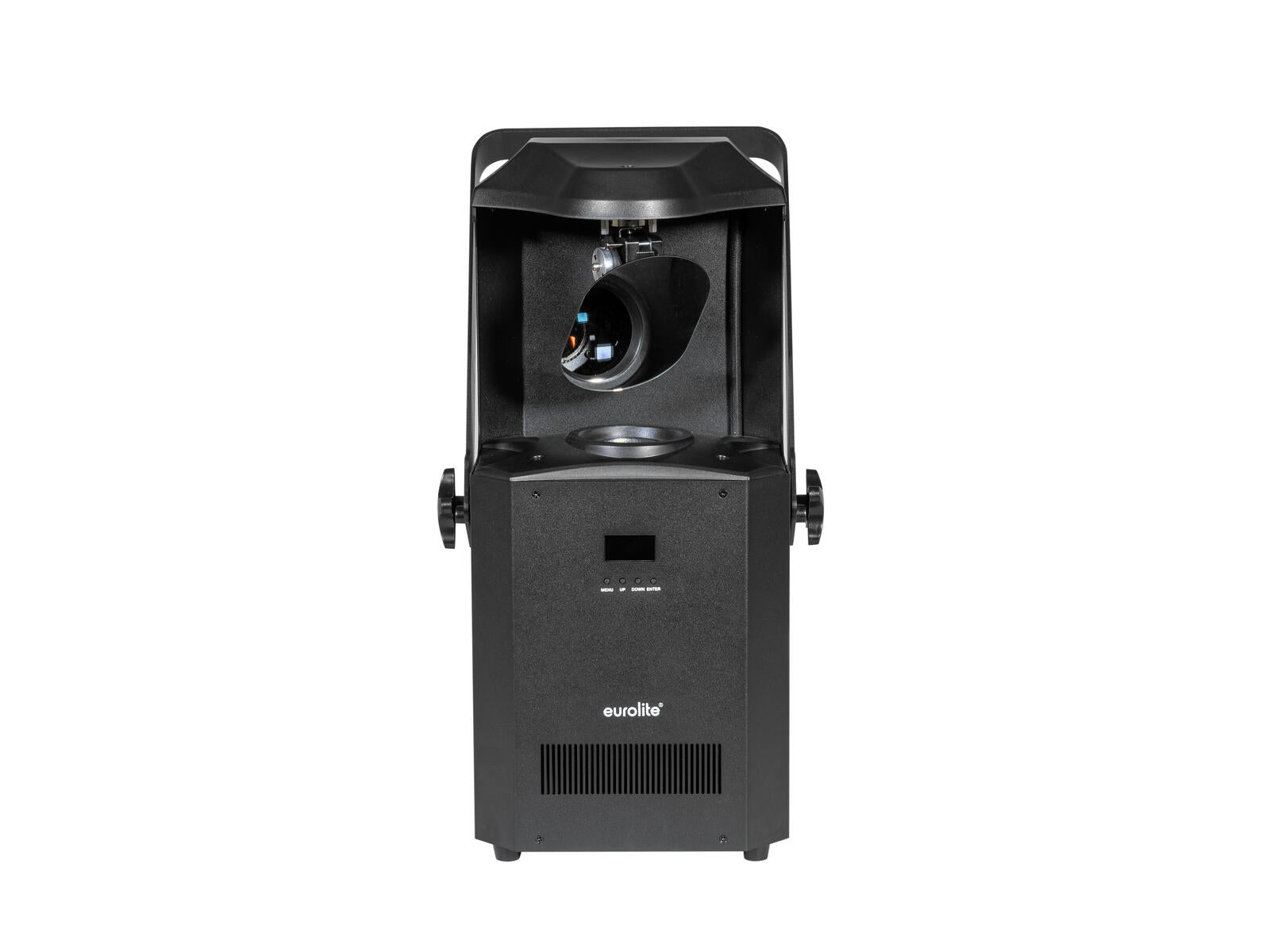

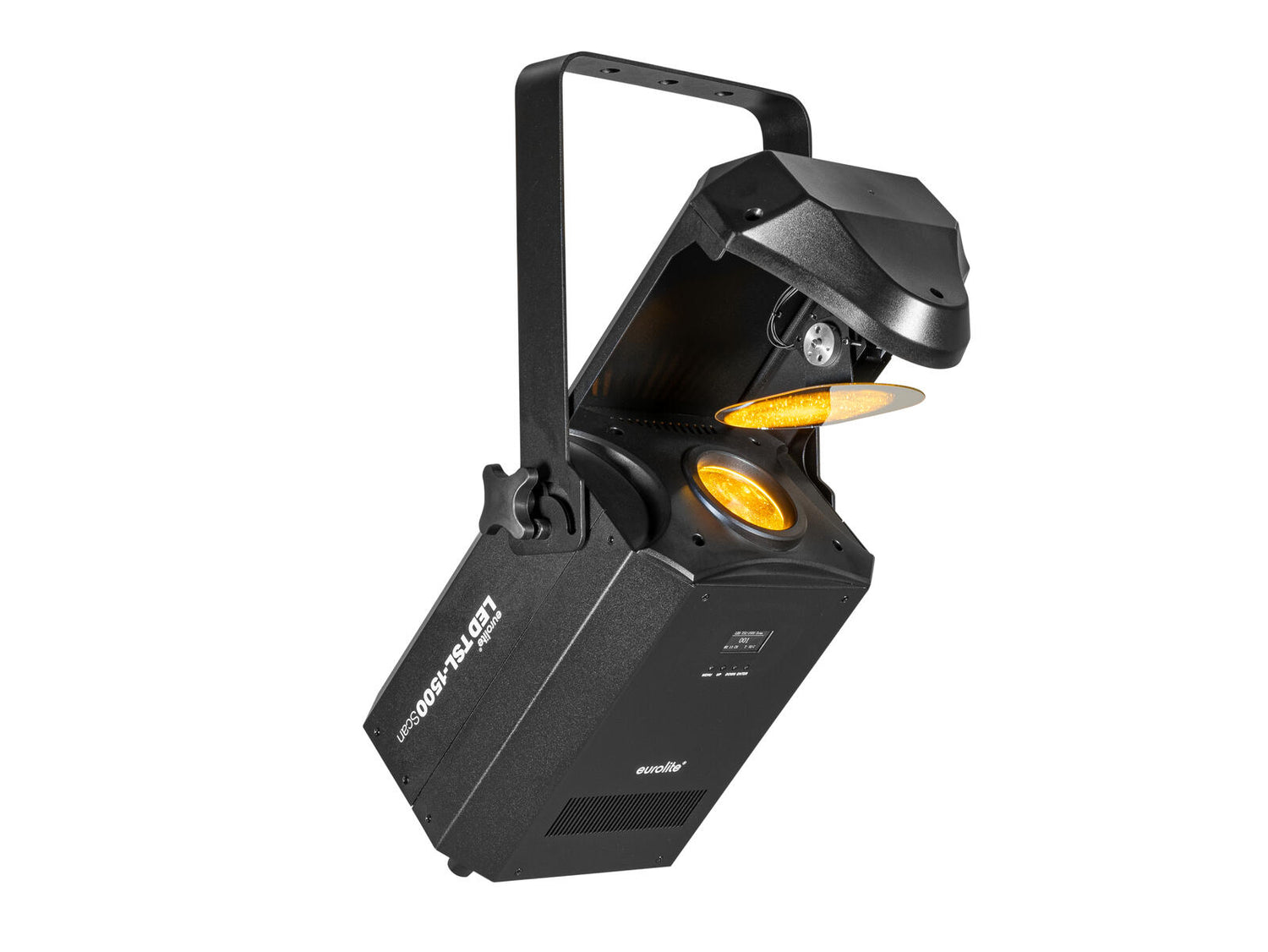

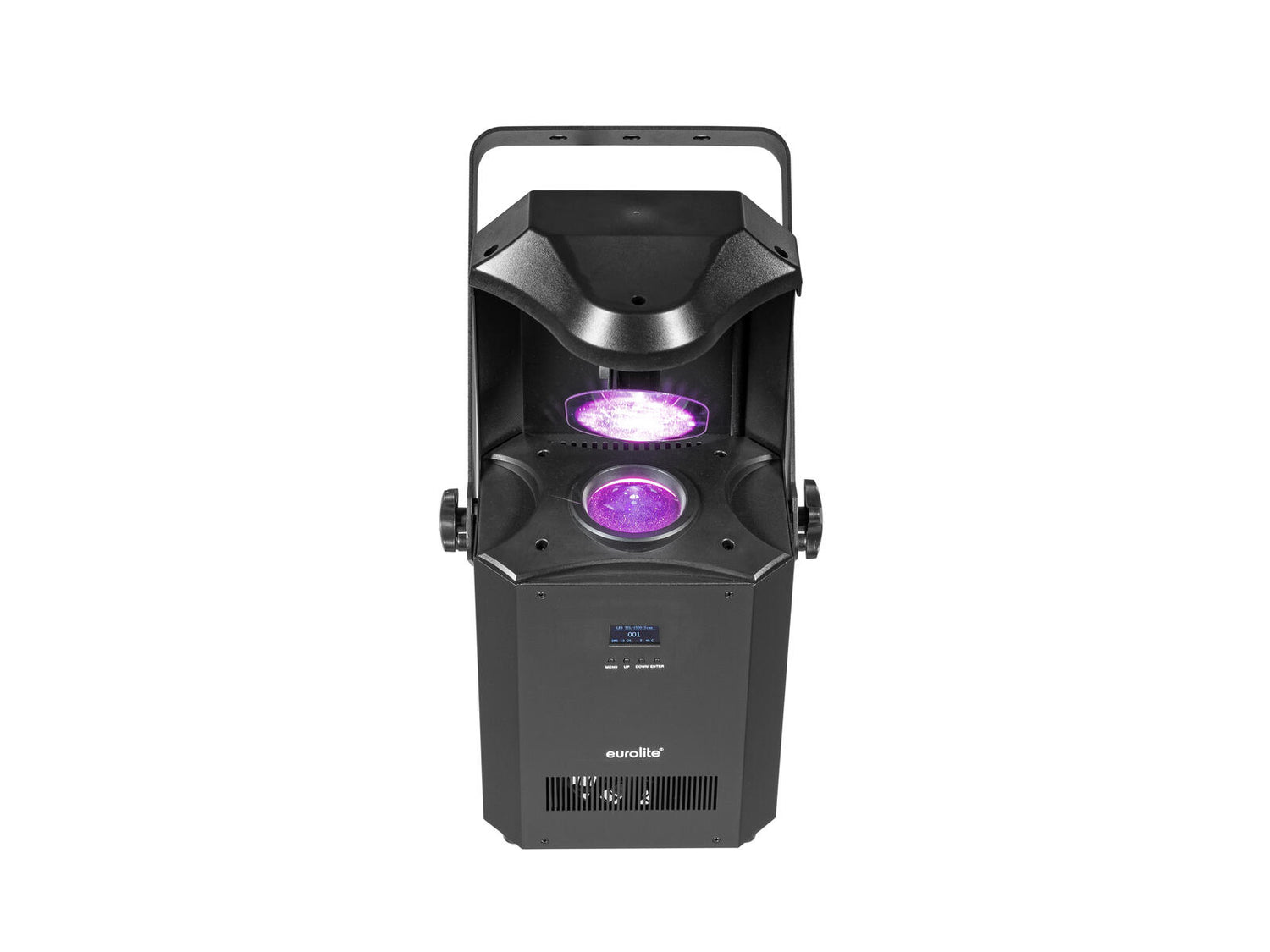

EUROLITE LED TSL-1500 Scan
1
av
6
Laddar...
7 117:-
Stk. pris kr
/
Inte tillgänglig
Inkl. moms
Fri frakt
Betalningsmetoder accepterade
Beskrivning
Beskrivning
Scanner with 150 W LED, rotating gobos and 4-facet prism, color wheel and motorized focus
- 1 LED 150 W COB (chip-on-board) cold white (CW)
- Positioning within 180° PAN, 70° TILT
- Focus motor-driven; color wheel; gobo wheel with rotating gobos; prism 4-fold rotating
- Dimmer electronic
- Gobo effect; strobe effect
- Color wheel with 8 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with rotating gobos, 7 gobos and open
shake effect - Gobos changeable
- Slot-in gobo system for easy gobo replacement
- 9 integrated show programs
- The device is cooled by temperature-controlled fan
- Control via stand-alone; sound to light via microphone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 11°
- OLED display
- Rubber feet
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; wedding/gala/events; stage; mobile djs / entertainer; restaurants, bars and hotels
- Application possibility: Standing; suspended; on stand
Scope of delivery
- 1 x device
- 1 x user manual
- 1 x power cord
- 1 x safety eyelet
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 175 W |
| Protection class: | Protection class I |

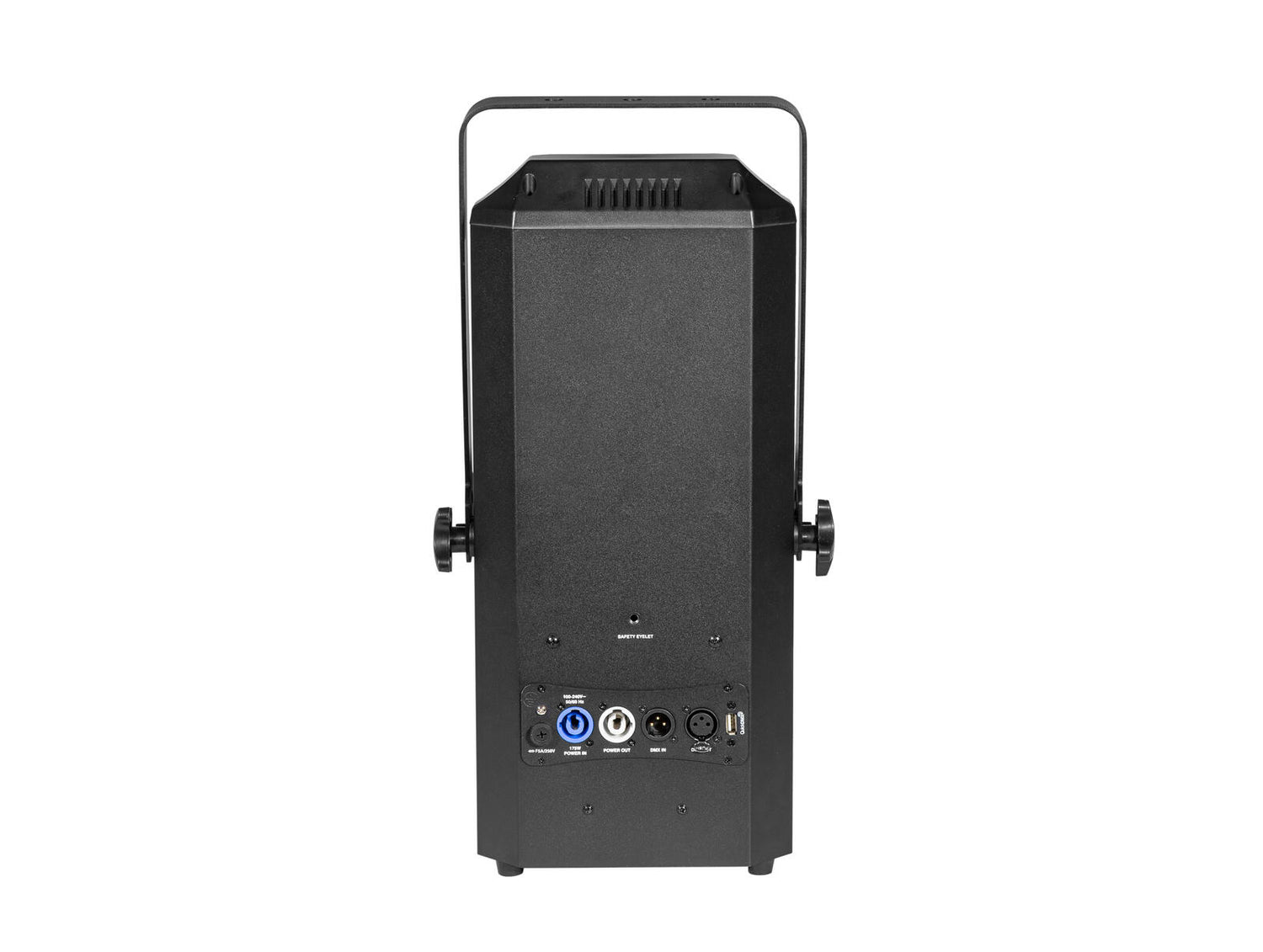

| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output: | 1 x P-Con (gray), mounting version |
| Fuse: | 5 x 20 mm, F 5 A fuse replaceable |
| Lamp type: | LED lamp |
| LED type: | 1 x 150 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement: | 70° positioning |
| Max. PAN movement: | 180° |
| Flash rate: | 0.5 - 21 Hz |
| Equipment: | Focus motor-driven; color wheel; gobo wheel with rotating gobos; prism 4-fold rotating |
| Color generation: | Color wheel with 8 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions |
| Gobos: | Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 19.8mm Image diameter 17mm Shake effect Gobos changeable Slot-in gobo system for easy gobo replacement |
| DMX channels: | 13 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Temperature-controlled fan |
| Control: | Stand-alone; sound to light via microphone; master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Fixtures available for: | Light Captain |
| Projection: | Flicker-free |
| Beam angle (1/2 peak): | 11° |
| Color temperature: | 10000K |
| Illuminance in Lux (lx): | Cold white (CW) 3m: 15649 lx, 6m: 4147 lx |
| Housing color: | Black |
| Display type: | OLED display |
| Transport aid: | Rubber feet |
| Dimensions: | Width: 33.5 cm Depth: 16.5 cm Height: 47 cm |
| Weight: | 7.05 kg |
| Legal specifications | |
| Special product: | Not designed for household room illumination |
| Intended use: | Show effect lighting |
