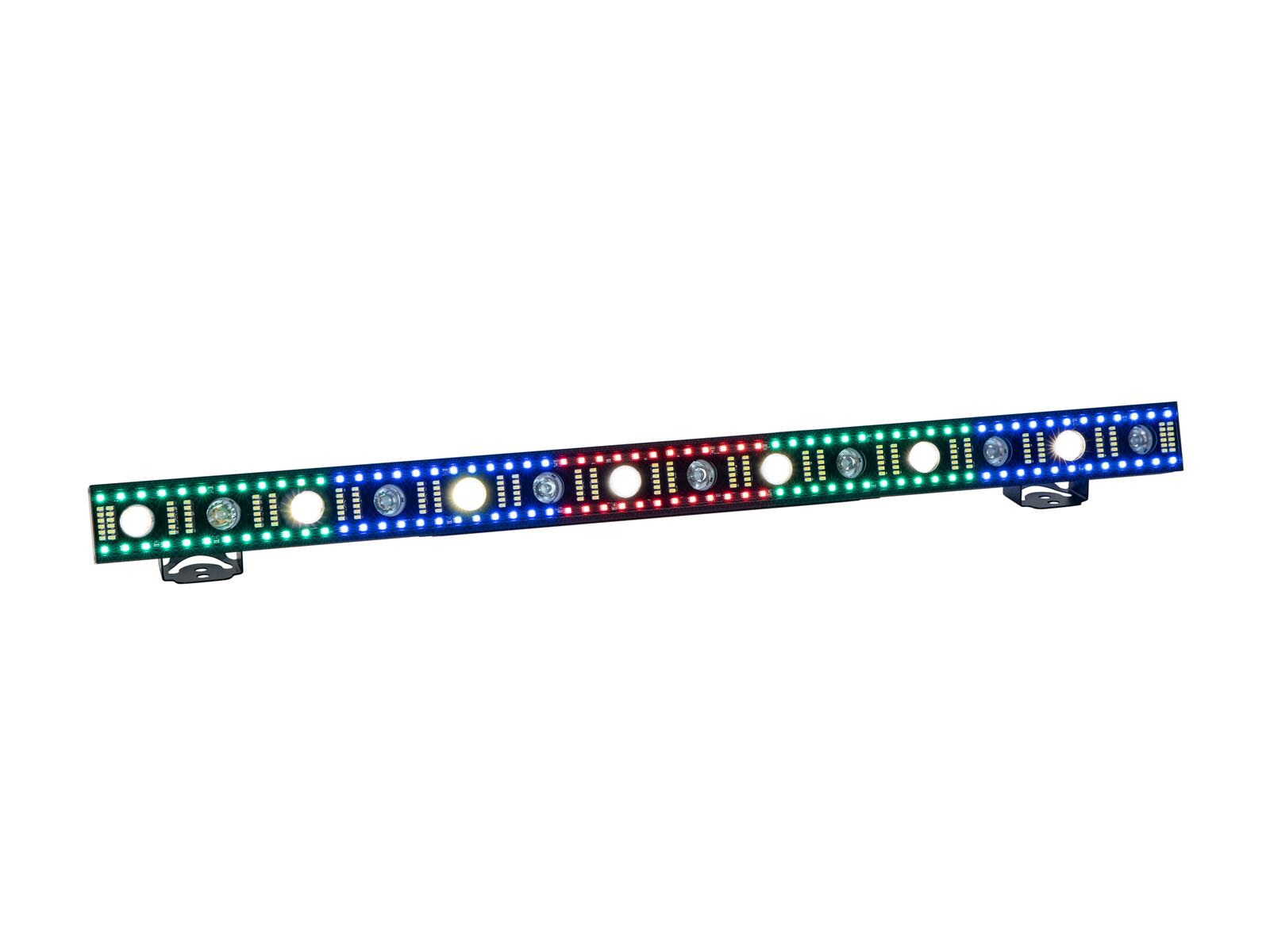

EUROLITE LED STP-14 Sunbar

3in1-LED-Sunbar with warm white beam effects, stroboscope and ambient lightThe EUROLITE STP-14 Sunbar is equipped with three effects in one device: Beam effect, stroboscope and ambient light. It is therefore very suitable for your stage equipment, for decorative lighting, for example in shops or for use in discotheques. You can also use the LED bar in theatres or at galas: Due to pure convection cooling via cooling fins, this effect does not require a fan and is therefore particularly quiet in operation. The flicker-free STP-14 Sunbar is equipped with 14 warm-white 3-watt LEDs with a beam angle of 6.5° for narrow beams. 120 bright RGB LEDs behind the transparent cover provide appealing mood lighting and color animations, while 180 cold white LEDs provide fast, dynamic strobe effects. These lighting effects are particularly effective when you use fog.RGB color mixing is infinitely variable. The effects available are chases, dimmers and strobe effects with variable speed and via the random generator.All three LED types are divided into different segments which can be controlled individually via DMX. In addition, you can control the Sunbar STP-14 by music control via the integrated microphone with adjustable microphone sensitivity and in master/slave mode. Addressing and settings are made via the integrated control unit with four-digit LED display.The power supply of up to eight devices is possible via a P-Con mains connection.

LED sunbar with 3 effects: warm white beam effects, strobe and ambient light

• 3 striking effects in one device: beam effect, stroboscope and ambient light
• När fog används blir detta effekt särskilt attraktiv
• 180 LEDs SMD 3535 cold white (CW)
  segment kontrollerade separat
• 120 LEDs SMD 5050 3in1 R/G/B (homogen färgblandning)
  segment kontrollerade separat
• 14 LEDs 3 W SMD 5030 warm white (WW)
  segment kontrollerade separat
• CREE LED installerad
• Färgbyte justerbar; Dimmer elektronisk; färgblandning steglös; löpande ljus justerbart
• Beam-effekt; strobe-effekt; ambient-effekt
• Integrerade showprogram
• Direkt färgval för 10 förinställda färger
• Enheten kyls av passiv konvektionskylning
• Styrning via DMX; master/slave-funktion; stand-alone; sound to light
• Flimmerfri
• Med en beam angle på 6.5°
• Med mounting bracket
• 4-siffrig 7-segments LED-display
• Nätingång och utgång för strömkoppling upp till 8 enheter
• Byggd med SEETRONIC connector
• För applikationsområden såsom: Stage; clubs/dancing school; wedding/gala/events; restaurants, bars and hotels
• Tyst drift
• Användningsmöjlighet: Suspended; wall mounting

Scope of delivery

• 1 x light effect
• 1 x power cord
• 1 x user manual

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	95 W
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug included
Fuse:	T 3.15 A fuse fix on board
Lamp type:	LED lamp
LED type:	180 x SMD 3535 cold white (CW) 120 x SMD 5050 3in1 R/G/B (homogen färgblandning) 14 x 3 W SMD 5030 warm white (WW)
LED manufacturer:	CREE
DMX channels:	2; 6; 34; 37
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	DMX; master/slave function; stand-alone; sound to light
Fixtures available for:	Light´J; LED PC-Control 512; Light Captain
Projection:	Flicker-free
Beam angle (1/2 peak):	Spot 6.5°
Housing color:	Black
Attachment system:	2x mounting bracket
Display type:	4 digit 7-segment LED display
Use of brands:	Built with SEETRONIC connector
Material:	Aluminum casting; metal
Dimensions:	Length: 100 cm Depth: 9 cm Height: 8.5 cm
Weight:	3.88 kg
Noise classification:	Class 0 (no noise at all)
Mounting bracket
Diameter mounting holes:	4 x Ø8mm; 1 x Ø10mm; 2 x Ø11mm
Material:	Metal, 1.5 mm
Power cord
Cable construction:	3 x 1.5 mm² H05VV-F
Cable length:	Approx. 1.2 m
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
