EUROLITE LED RETRO 6 Spot ABL

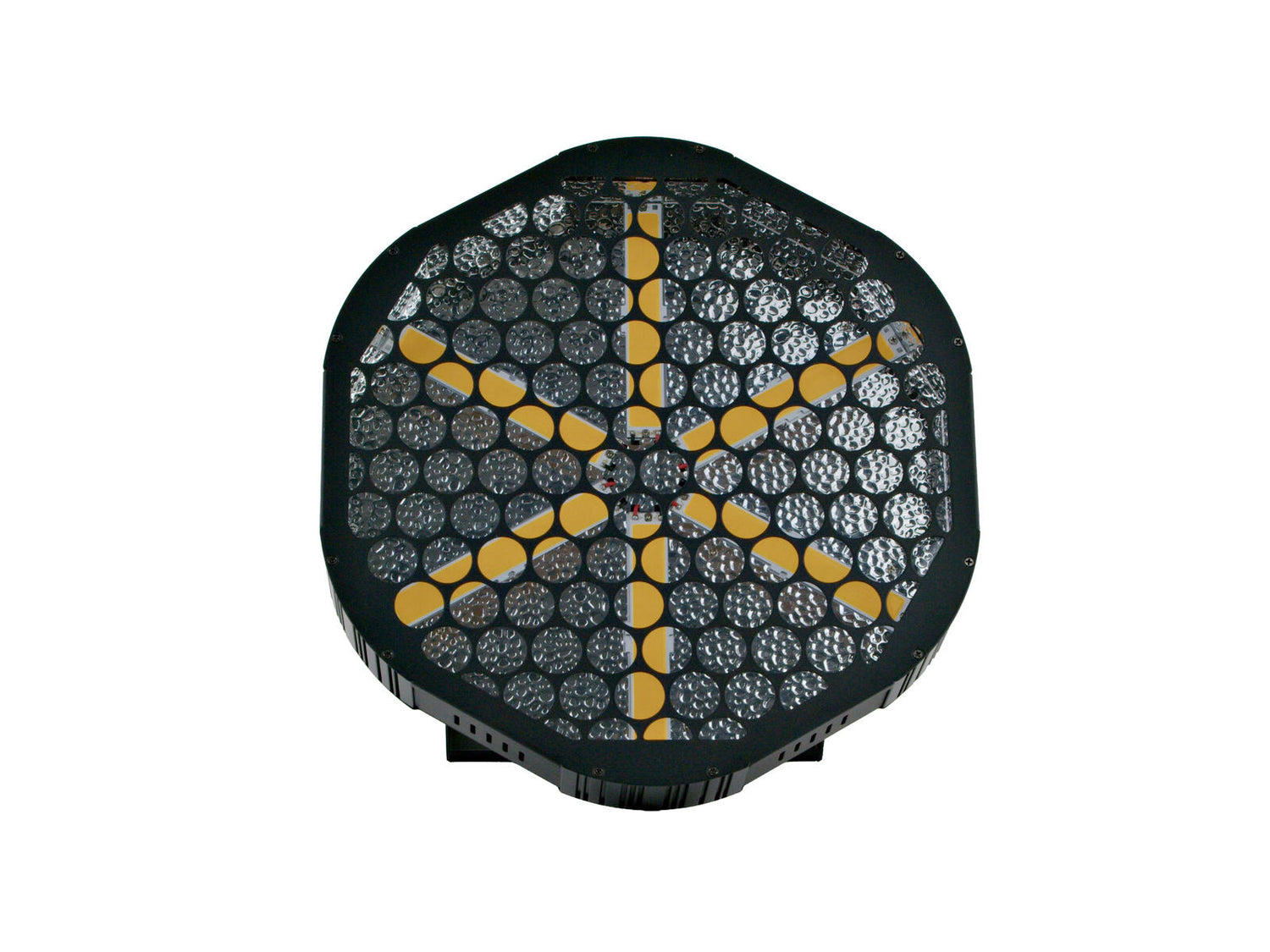

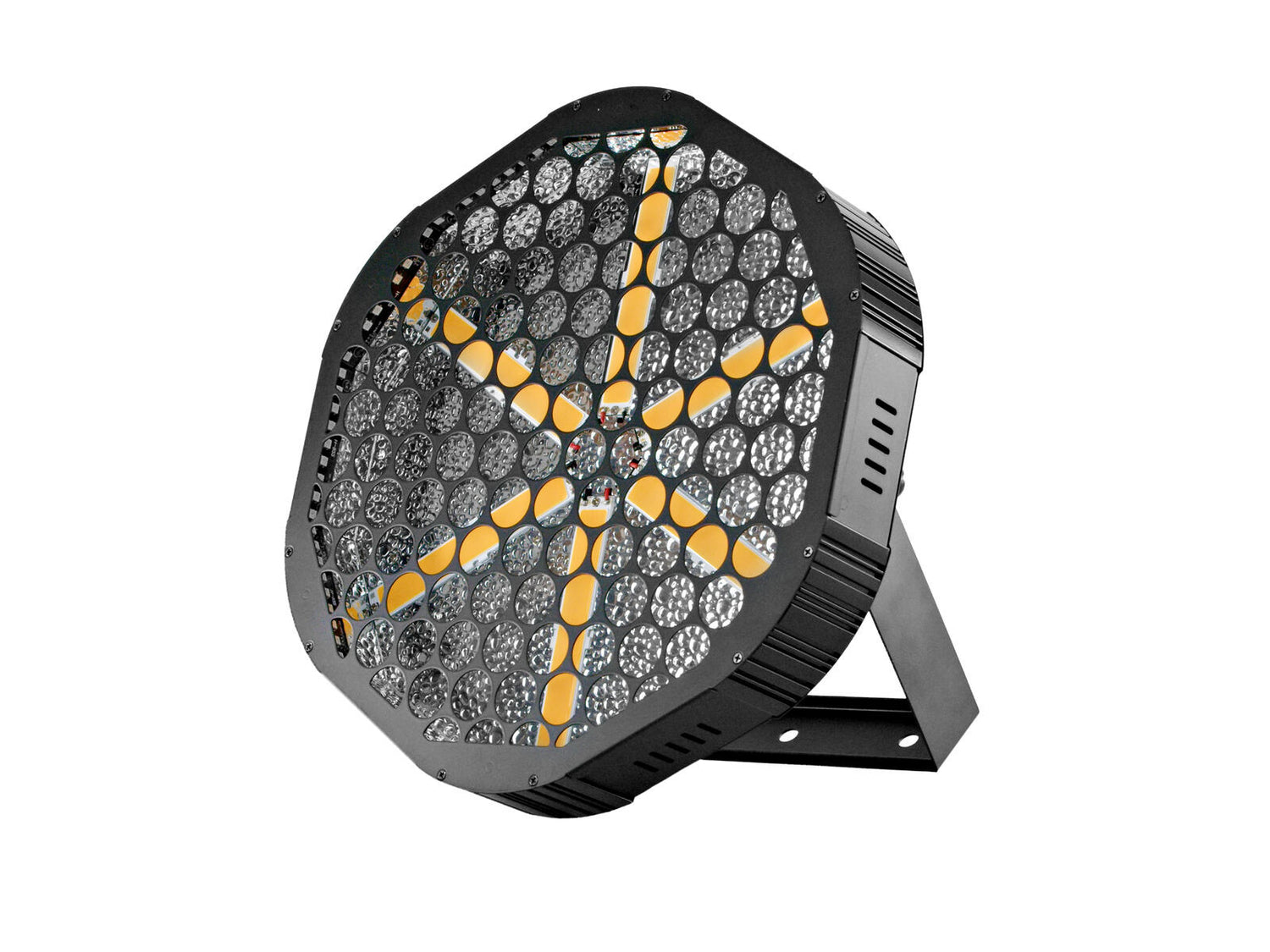

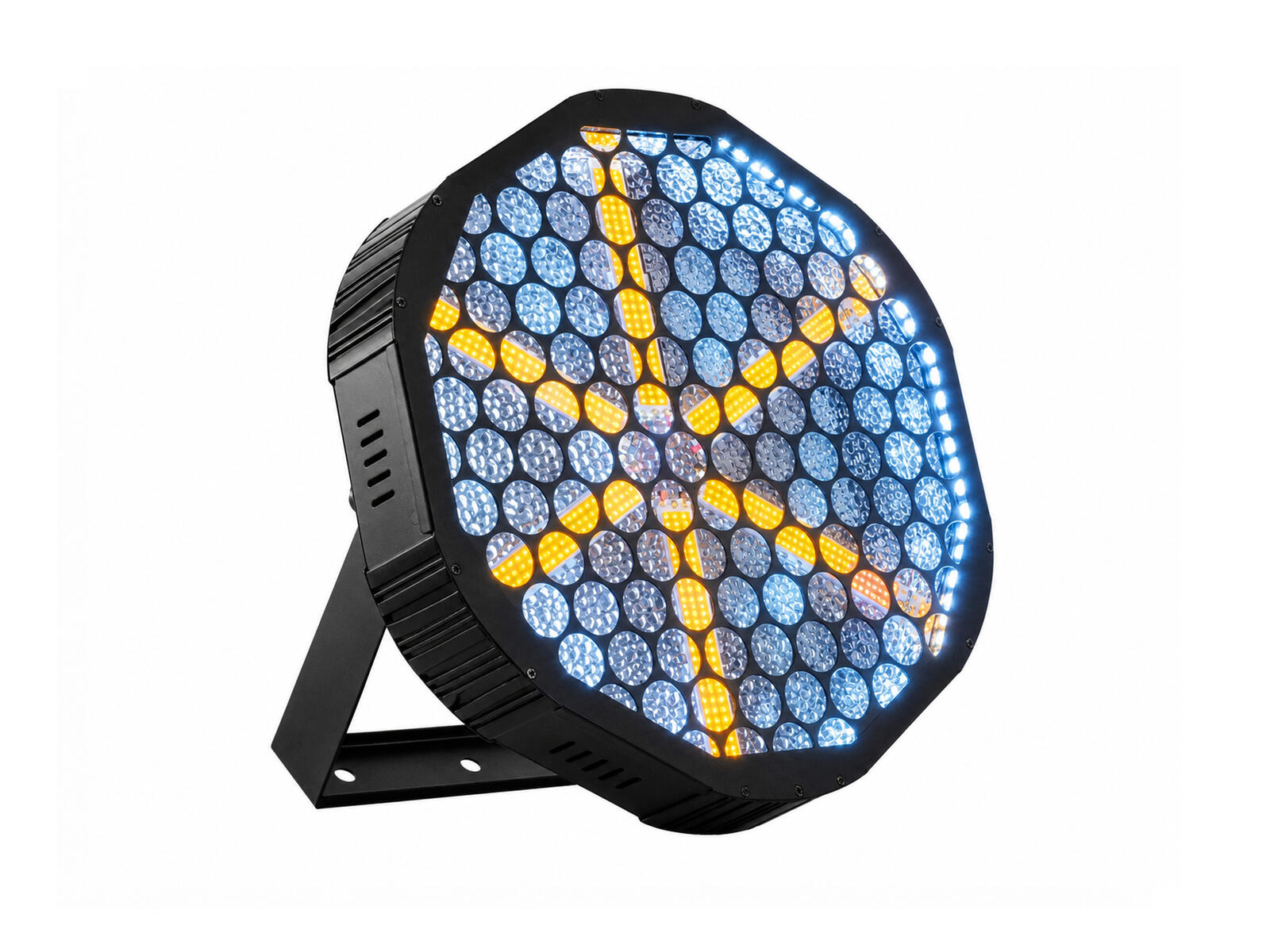

The "Retro" in the name of this fixture is no coincidence: six powerful LED strips extend from the center outward like the spokes of a wheel, producing a very warm, almost orange-toned white light in a classic retro style.Each strip is equipped with a 60 W LED and can be controlled individually. Between the strips are reflective sections illuminated by a total of 108 RGB LEDs. These are divided into 12 segments and can be controlled accordingly.A variety of DMX modes are available. In the most advanced mode, all elements can be controlled individually, while reduced modes still offer extensive possibilities even with smaller DMX controllers.The series also includes a matching bar that delivers the same effects in a different form factor.

Warm white blinder with additional colored LEDs for atmospheric lighting

• 6 LEDs 60 W COB (chip-on-board) amber (A)
  LEDs controlled separately
• 108 LEDs 0.1 W SMD 5050 3in1 R/G/B (homogen färgblandning)
  12 segments styrs separat
• Dimmer elektronisk
• Blinder-effekt
• 3 integrerade showprogram
• Enheten kyls av temperaturstyrd fläkt
• Styrning via DMX; stand-alone; sound to light; QuickDMX via USB (tillval); W-DMX med trådlös lösning via USB (tillval); CRMX by LumenRadio via USB (tillval)
• Flimmerfri
• Med en beam angle på 120°
• Med monteringsbracket
• 4-siffrig 7-segments LED-display
• Nätmatning in och ut för strömseriekoppling upp till 8 enheter
• Byggd med SEETRONIC connector
• För användningsområden som: Clubs/dancing school; wedding/gala/events; stage; theater; restaurants, bars and hotels; rental
• Mycket låg arbetsljudnivå
• Användningsmöjlighet: Stående; upphängd

Scope of delivery

• 1 x spotlight
• 1 x power cord
• 1 x user manual

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	200 W
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction:	3 x 1.5 mm² H05VV-F
Power output:	P-Con (gray), mounting version
Lamp type:	LED lamp
LED type:	6 x 60 W COB (chip-on-board) amber (A) 108 x 0.1 W SMD 5050 3in1 R/G/B (homogen färgblandning)
Flash rate:	0.8 - 20 Hz
DMX channels:	6; 10; 12; 16; 49
DMX input:	3-pin XLR (M) mounting version 5-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version 5-pin XLR (F) mounting version
Cooling:	2 x temperature-controlled fan
Control:	DMX; stand-alone; sound to light; QuickDMX via USB (tillval); W-DMX med trådlös lösning via USB (tillval); CRMX by LumenRadio via USB (tillval)
Fixtures available for:	Light Captain
Projection:	Flicker-free
PWM frequency:	4000 Hz
Beam angle:	120°
Beam angle (1/2 peak):	120°
Color temperature:	1800K
Lamp life:	30000 h
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	4 digit 7-segment LED display
USB port:	Type A
Use of brands:	Built with SEETRONIC connector
Material:	Metal
Dimensions:	Width: 36 cm Depth: 11 cm Height: 37.5 cm
Weight:	5.00 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
