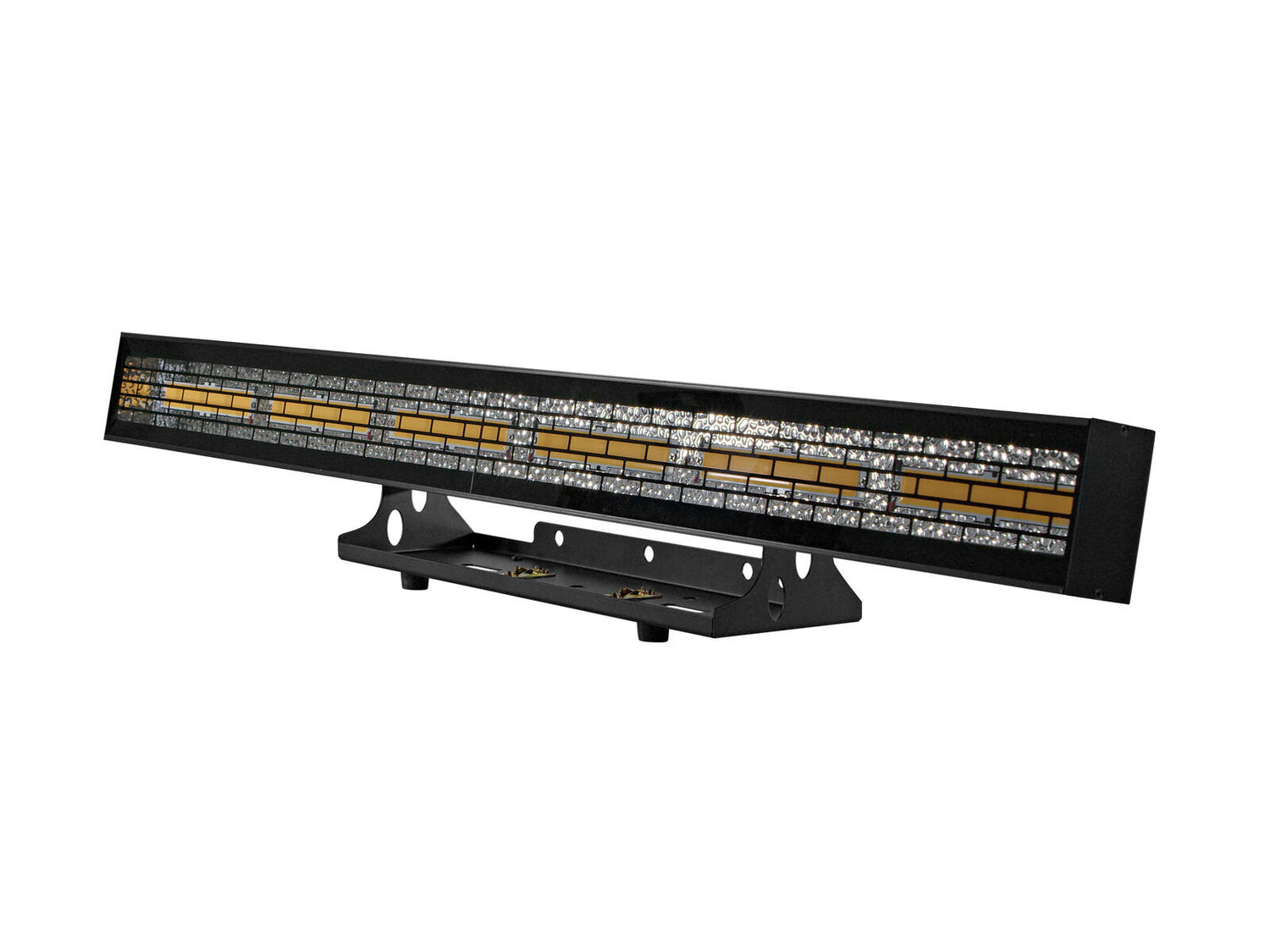

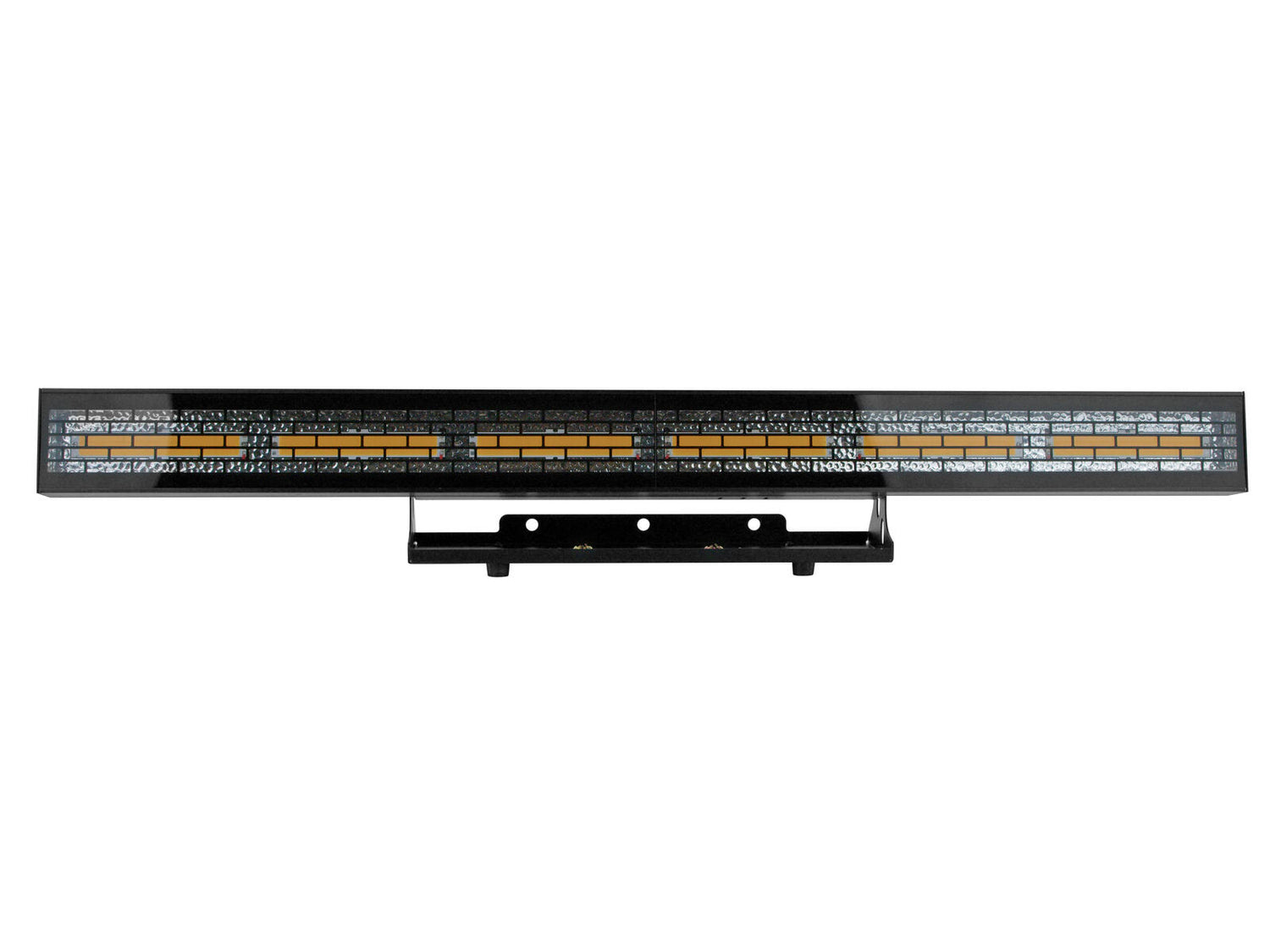

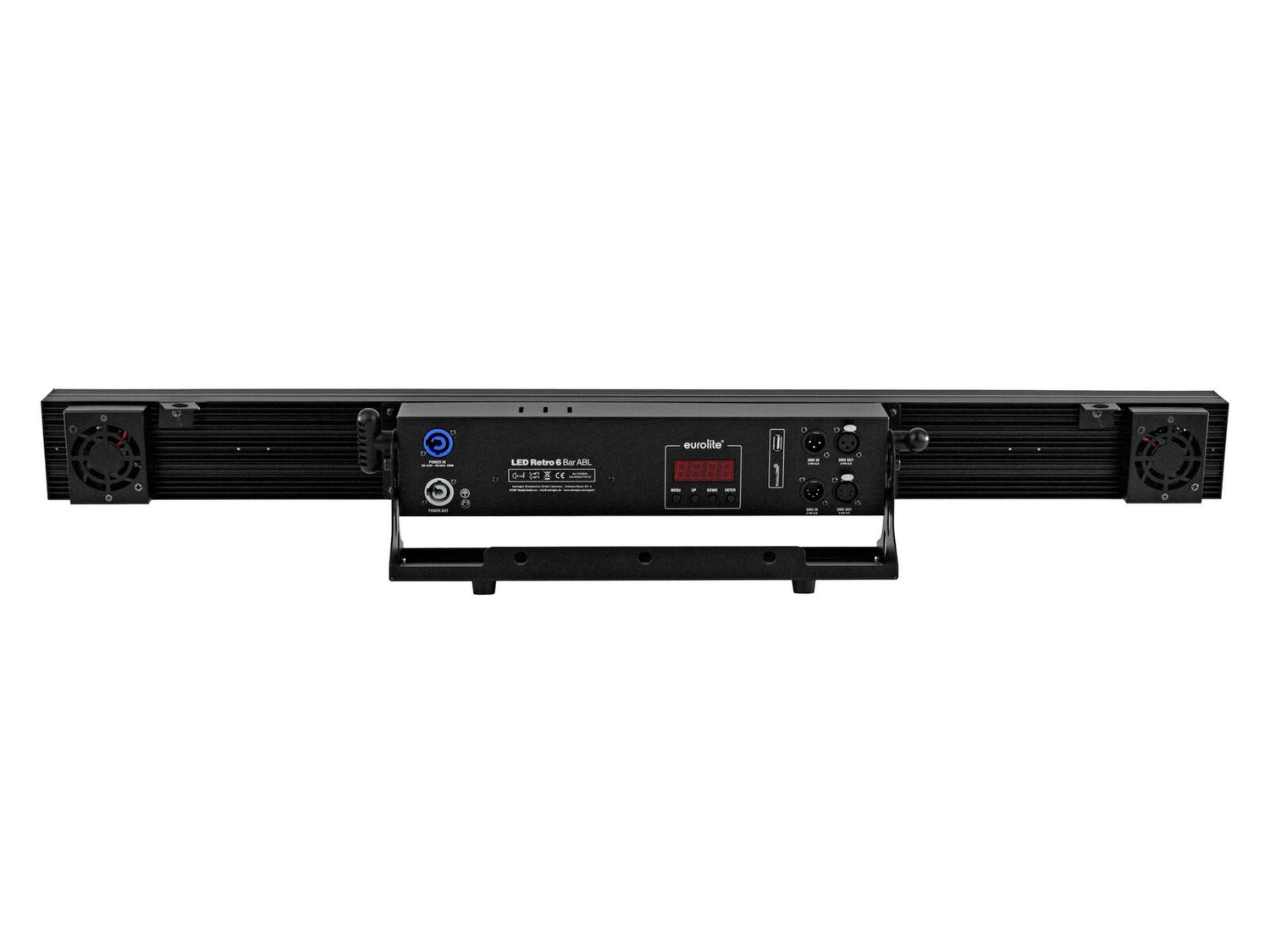

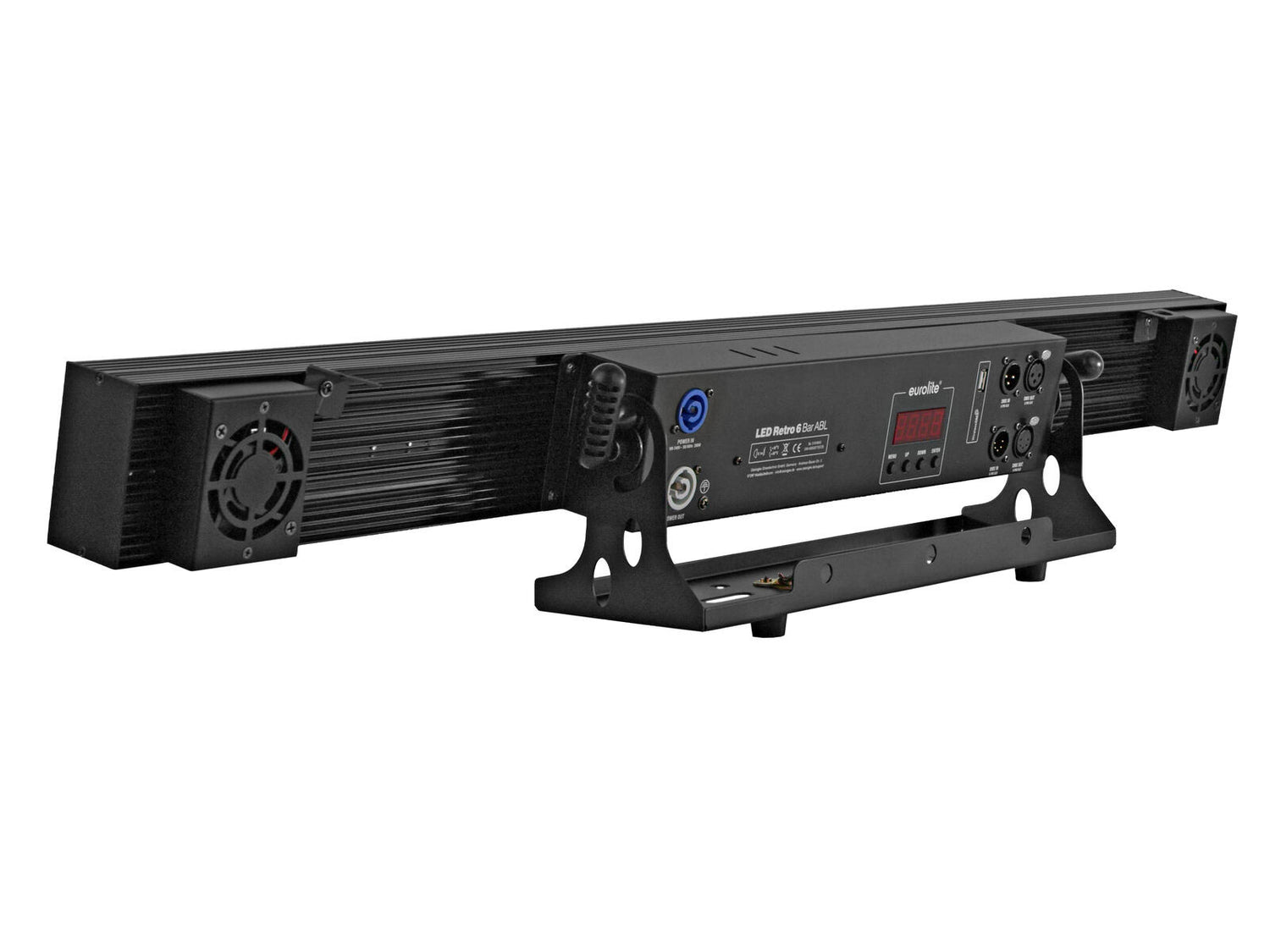

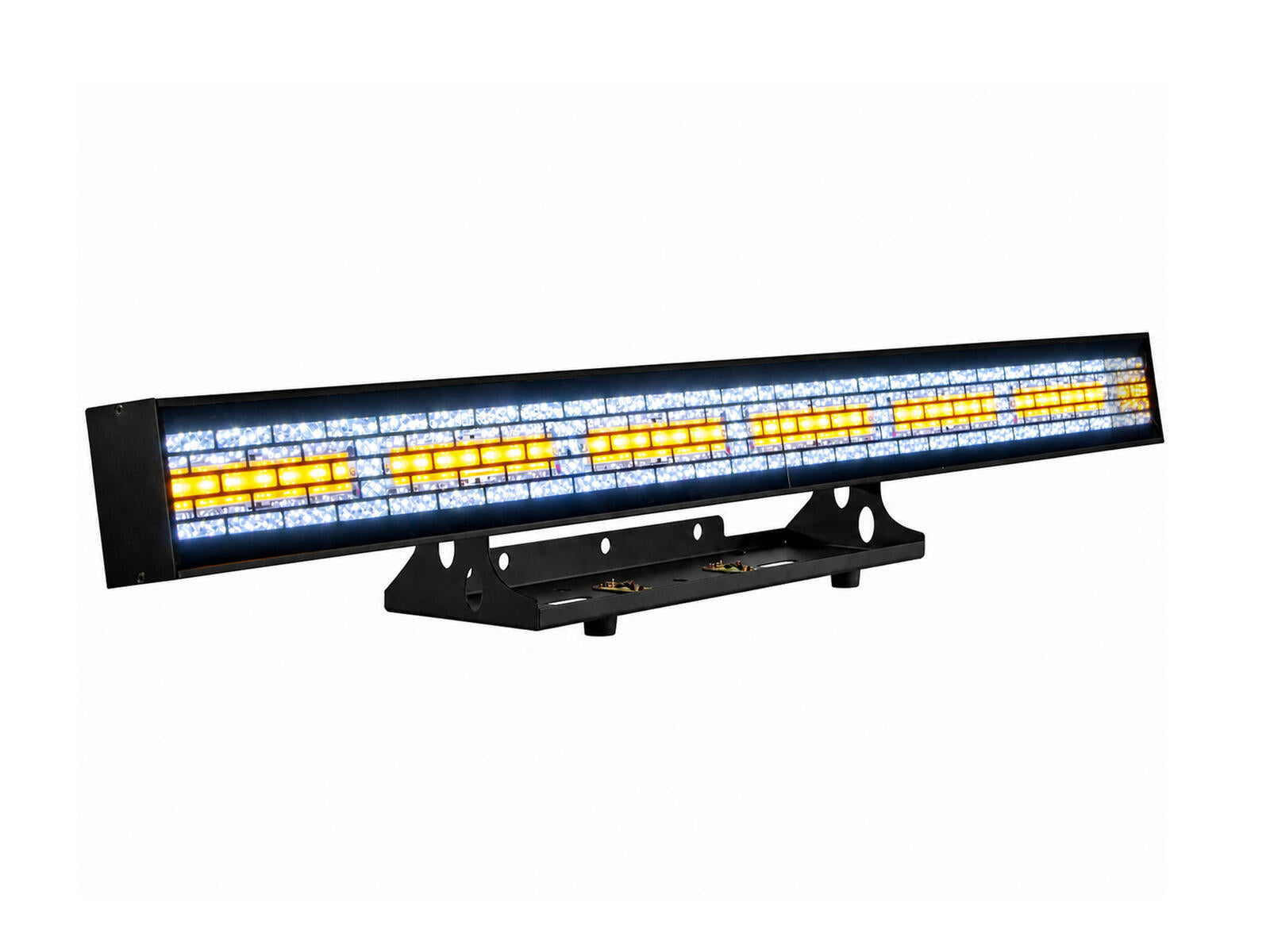

EUROLITE LED RETRO 6 Bar ABL

This 100 cm bar combines modern lighting technology with a distinctive retro look. Six powerful LED strips produce a very warm, almost orange-toned white light.Each strip is equipped with a 60 W LED and can be controlled individually. The reflective sections between them are illuminated by a total of 120 RGB LEDs, which are divided into 12 segments and can be controlled individually.A range of DMX modes is available. In the most advanced mode, all elements can be controlled individually, while reduced modes still offer a wide variety of effects even with smaller DMX controllers.The series is complemented by a matching spot fixture that delivers the same effects in a different form factor.

Warm white blinder with additional colored LEDs for atmospheric lighting

• 6 LEDs 60 W COB (chip-on-board) amber (A)
  LEDs controlled separately
• 120 LEDs 0.1 W SMD 5050 3in1 R/G/B (homogenous color mix)
  10 segments controlled separately
• Blinder effect; strobe effect
• With a beam angle of 120°
• Silent operation
• The device is cooled by temperature-controlled fan
• With bracket for floor use; with omega bracket
• Application possibility: Standing; suspended
• Mains input and output for power linking up to 8 units
• Built with SEETRONIC connector
• For application areas such as: Clubs/dancing school; wedding/gala/events; mobile use; stage; theater; mobile djs / entertainer; restaurants, bars and hotels; rental
• Flicker-free
• 3 integrated show programs
• Dimmer electronic
• Control via stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• 4 digit 7-segment LED display

Scope of delivery

• 1 x spotlight
• 1 x user manual
• 1 x power cord
• 1 x omega bracket

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	200 W
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction:	3 x 1.5 mm² H05VV-F
Power output:	P-Con (gray), mounting version
Lamp type:	LED lamp
LED type:	6 x 60 W COB (chip-on-board) amber (A) 120 x 0.1 W SMD 5050 3in1 R/G/B (homogenous color mix)
Flash rate:	0.8 - 20 Hz
DMX channels:	12; 16; 43
DMX input:	3-pin XLR (M) mounting version 5-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version 5-pin XLR (F) mounting version
Cooling:	2 x temperature-controlled fan
Control:	Stand-alone; sound to light via microphone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Fixtures available for:	Light Captain
Projection:	Flicker-free
PWM frequency:	4000 Hz
Beam angle:	120°
Beam angle (1/2 peak):	120°
Beam angle (1/10 peak):	120°
Color temperature:	1800K
Housing color:	Black
Attachment system:	Bracket for floor use Omega bracket
Display type:	4 digit 7-segment LED display
USB port:	Type A
Use of brands:	Built with SEETRONIC connector
Material:	Metal
Dimensions:	Width: 100.0 cm Depth: 14.0 cm Height: 15.0 cm
Weight:	5.10 kg
Noise classification:	Class 0 (no noise at all)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
