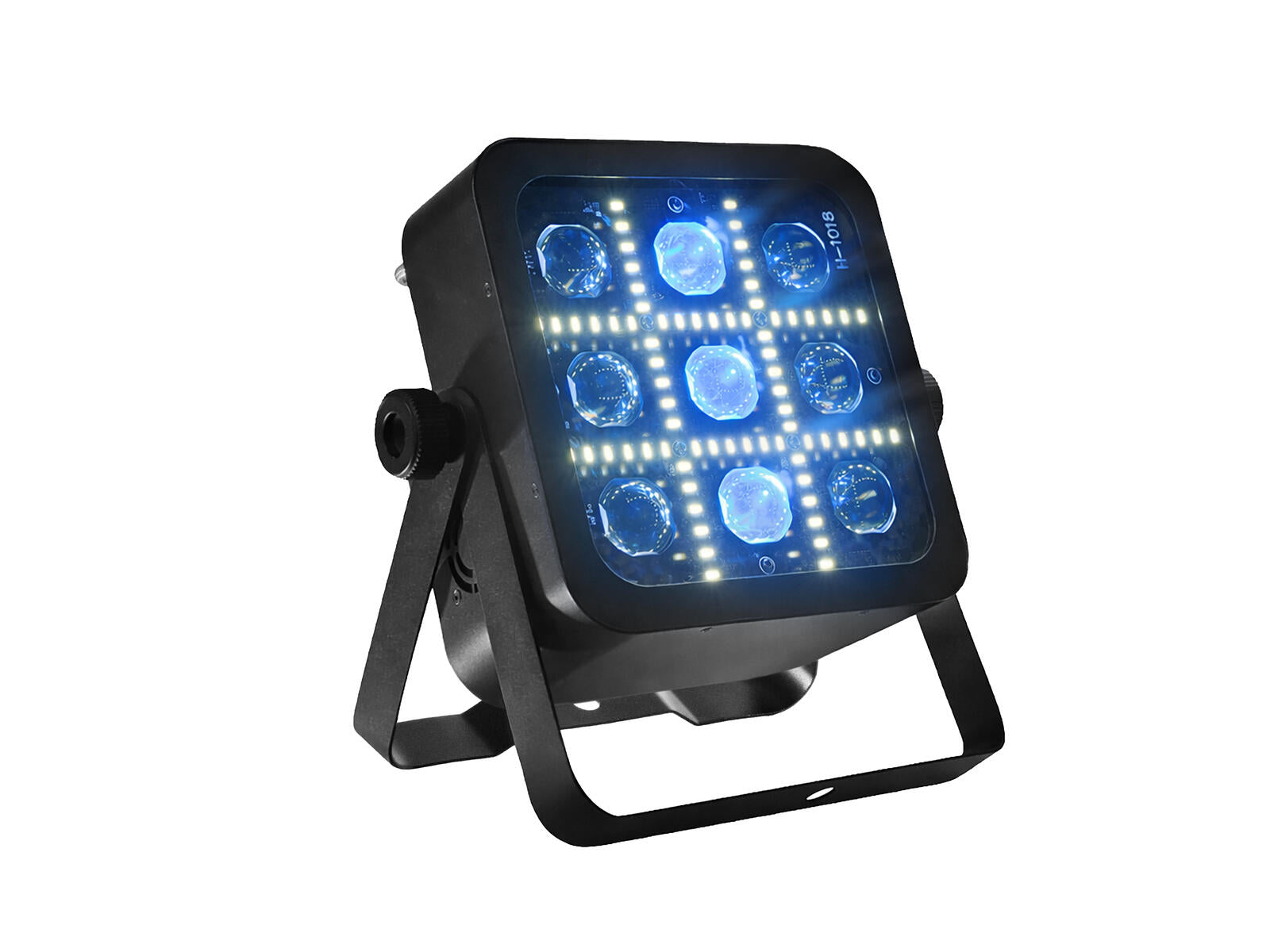

EUROLITE LED BP-9 Panel RGBW+CW

This fixture offers more than meets the eye. Nine lenses focus the light into an extremely narrow 2° beam. Behind each lens is a 12-watt RGBW LED, and each can be controlled individually, creating a powerful beam matrix.The system is complemented by 72 cold white LEDs positioned between the lenses. These are arranged in four controllable lines and are designed for strobe and blinder effects.For control, multiple DMX modes are available. In the most advanced mode with 43 DMX channels, all functions can be controlled individually. Alternatively, reduced modes with 6 or 12 channels still offer a wide range of creative possibilities.

LED spotlight med 9 individuellt styrbara strålar och 4 extra strobostrippar

• 9 LEDs 12 W SMD 5050 4in1 RGBW (homogen färgblandning)
  LEDs styrs separat
• 72 LEDs 0.5 W SMD 5730 cold white (CW)
  4 segment styrs separat
• Dimmer elektronisk; färgblandning steglös; förgrundsfärg; bakgrundsfärg
• Beam-effekt; strobe-effekt
• 9 integrerade showprogram
• Direkt färgval för 31 förinställda färger
• Styrning via stand-alone; sound to light via mikrofon; master/slave-funktion; DMX
• Med en strålvinkel på 2°
• Med dubbelstativ
• 4-siffrig 7-segments LED-display
• Nätspänning in och ut för strömkoppling upp till 8 enheter
• Enheten kyls av kylfläkt
• För användningsområden såsom: Clubs/dansskola; scen; mobila djs / underhållare; partyrum; restauranger, barer och hotell
• Användningsmöjlighet: Stående; upphängd; på stativ

Scope of delivery

• 1 x spotlight
• 1 x power cord
• 1 x user manual
• 2 x mounting bracket
• 2 x knurled screw
• 4 x washer

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	70 W
Protection class:	Protection class I

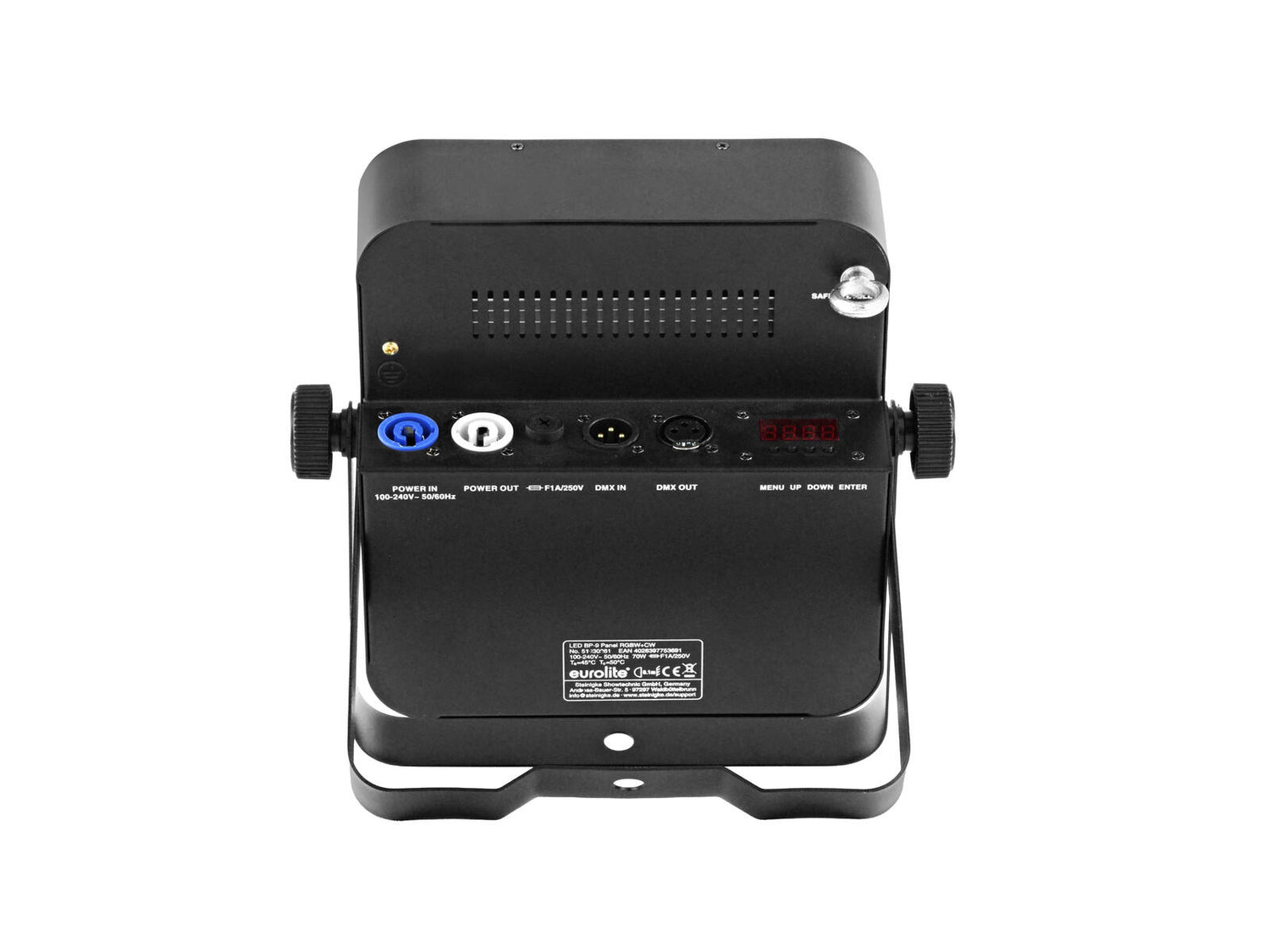

Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction:	3 x 1.0 mm² H05VV-F
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, F 1 A fuse replaceable
Lamp type:	LED lamp
LED type:	9 x 12 W SMD 5050 4in1 RGBW (homogen färgblandning) 72 x 0.5 W SMD 5730 cold white (CW)
Flash rate:	0.8 - 20 Hz
DMX channels:	6; 12; 43
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	1 x cooling fan
Control:	Stand-alone; sound to light via mikrofon; master/slave-funktion; DMX
Fixtures available for:	Light Captain
PWM frequency:	7000 Hz
DMX fail mode:	Hold; blackout
Beam angle:	2°
Beam angle (1/2 peak):	Beam 2°
Beam angle (1/10 peak):	Beam 7°
Lamp life:	50000 h
Housing color:	Black
Attachment system:	Double bracket
Display type:	4 digit 7-segment LED display
Diameter mounting holes:	1 x Ø12mm
Material:	Metal
Dimensions:	Width: 26.1 cm Depth: 10.5 cm Height: 26.4 cm
Weight:	2.75 kg
Noise classification:	Class 3 (clearly perceptible sounds)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
