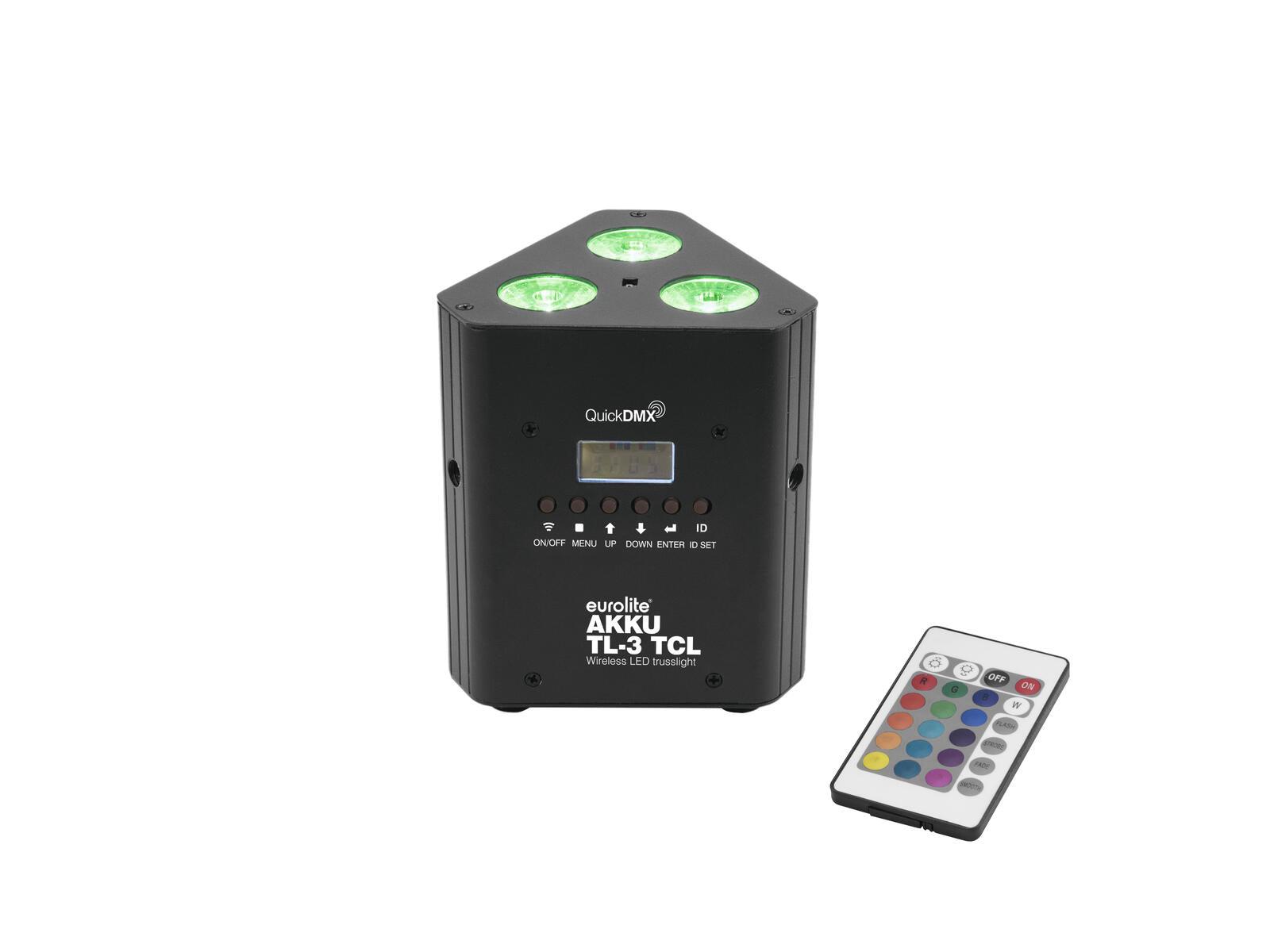

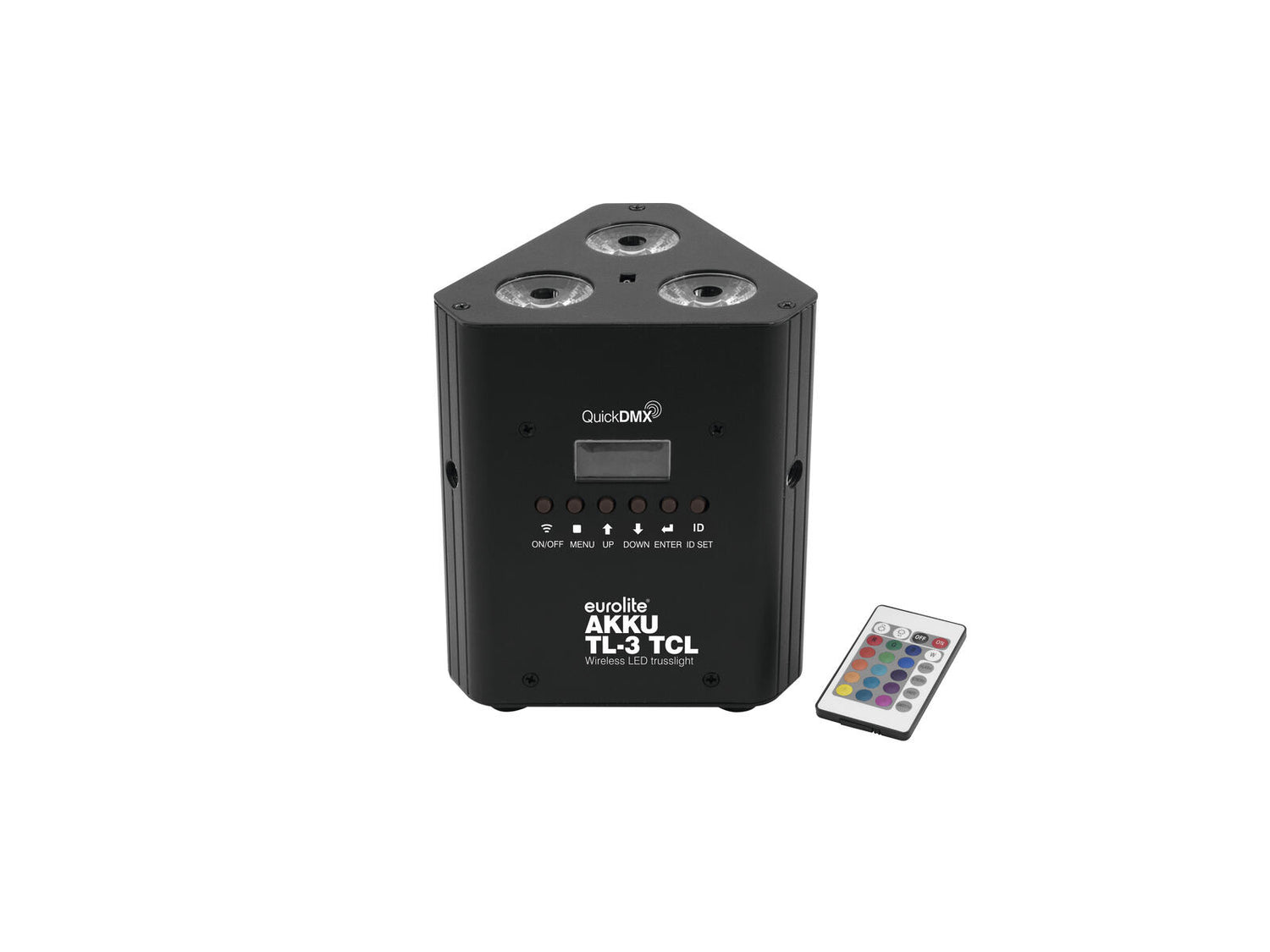

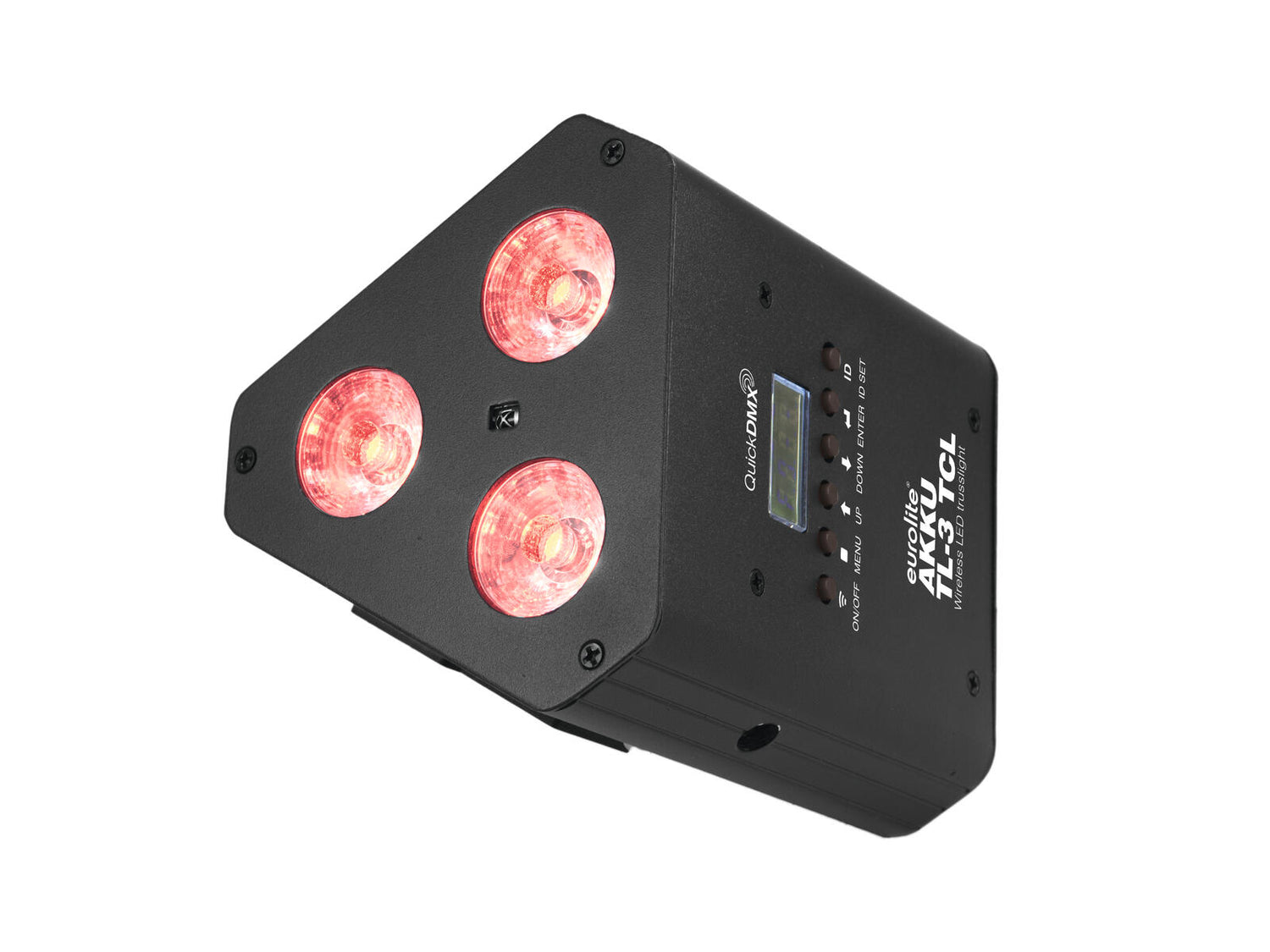

EUROLITE AKKU TL-3 TCL trussbelysning QuickDMX

The AKKU TL-3 TCL Trusslight QuickDMX er en spotlight udstyret med 3 lyse 3-watt RGB LED'er (3in1) til belysning inden for truss. Den er trådløs og batteridrevet (batterilevetid 16 hours) og dens lille størrelse gør den velegnet til mange 3- og 4-punkts truss-systemer. Desuden er denne enhed udstyret med en indbygget QuickDMX transceiver til trådløs transmission af DMX512-signaler.You can choose from a variety of different functions such as static colors, continuous RGB color mixture, internal programs, dimmer effects as well as strobe effects with adjustable speed. The device can either be controlled via DMX or the supplied wireless remote control (Eurolite IR-13). All of these features make the AKKU TL-3 TCL the perfect choice for booth construction, stages and any kind of truss.

Spot for lighting within trussing, 3 x 3 W 3in1 LED, QuickDMX transceiver

• Compact and bright
• Ideal for ALUTRUSS DECOLOCK DQ3 3-point system
• Integrated QuickDMX transceiver for wireless DMX control
• Threaded inserts for suspended installation
• Cordless, flexible and versatile
• Battery operation up to 16h depending on program used
• 3 LEDs 3 W SMD 8072 3in1 R/G/B (homogenous color mix)
• Dimmer electronic; color blend stepless; color change adjustable; Dimmer speed (step response) adjustable
• Strobe effect
• The device is cooled by passive convection cooling
• Control via DMX; stand-alone; QuickDMX; IR remote control; sound to light via microphone
• Flicker-free
• With a beam angle of 11°
• LCD display
• 3 x rubber feet
• Mains input and output for power linking up to 8 units
• For application areas such as: Stage; clubs/dancing school; decoration; wedding/gala/events; mobile djs / entertainer; rental; advertisement/Shop window
• Silent operation
• Application possibility: Standing; suspended

Scope of delivery

• 1 x spotlight
• 1 x user manual
• 1 x power cord
• 1 x remote control
• 1 x battery
• 1 x declaration of conformity

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	25 W
Protection class:	Protection class I

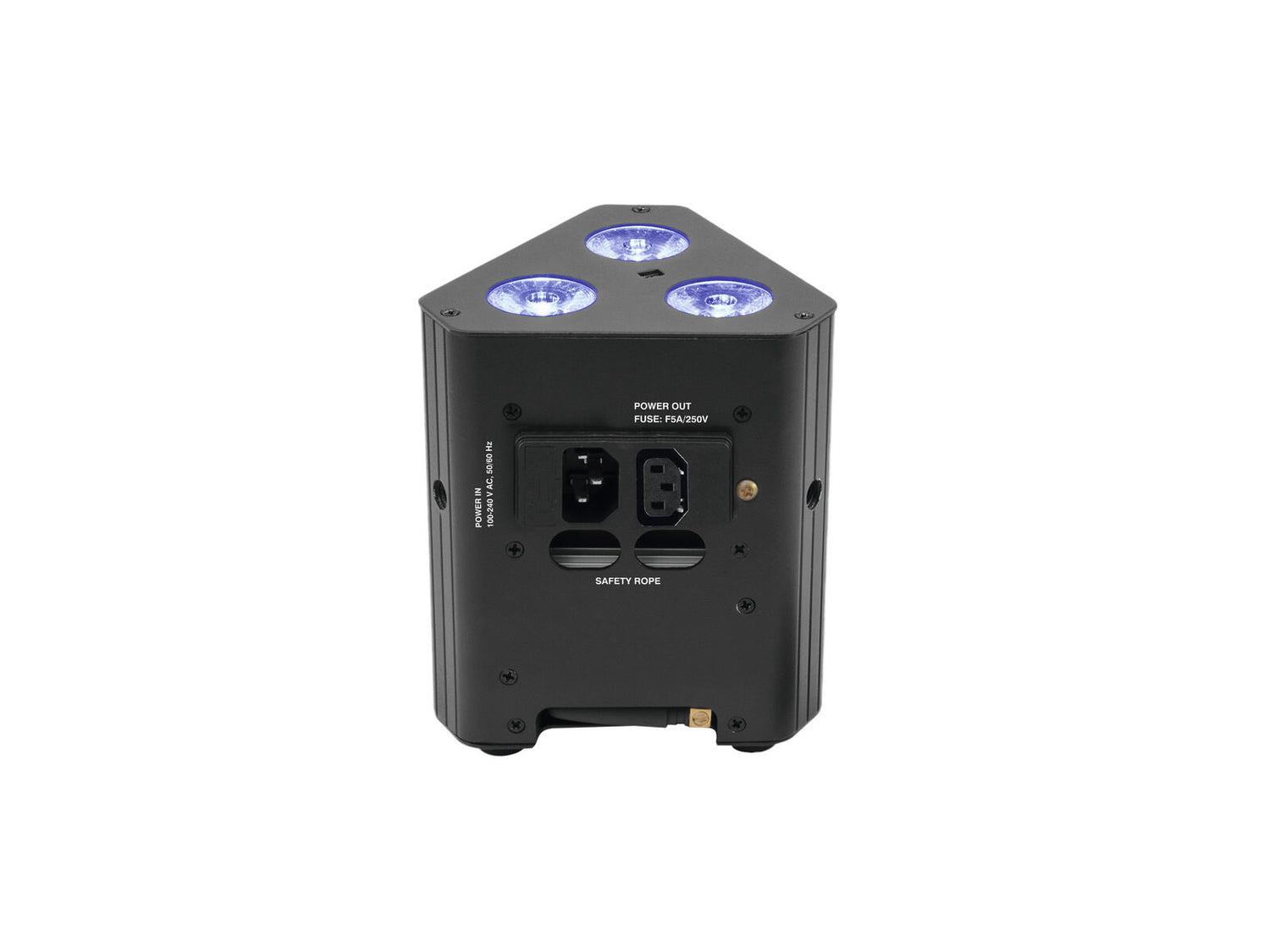

Power connection:	Battery/battery pack Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Cable length:	Approx. 1.2 m
Power output:	1 x IEC connector (F) mounting version
Fuse:	5 x 20 mm, F 5 A
Battery pack type:	1 x lithium ion 11.1 V, 4400 mAh, 48.84 Wh
Battery pack:	Battery operation up to 16h depending on program used Recharging time 3h
Lamp type:	LED lamp
LED type:	3 x 3 W SMD 8072 3in1 R/G/B (homogenous color mix)
Flash rate:	0 - 23 Hz
DMX channels:	3; 5; 8

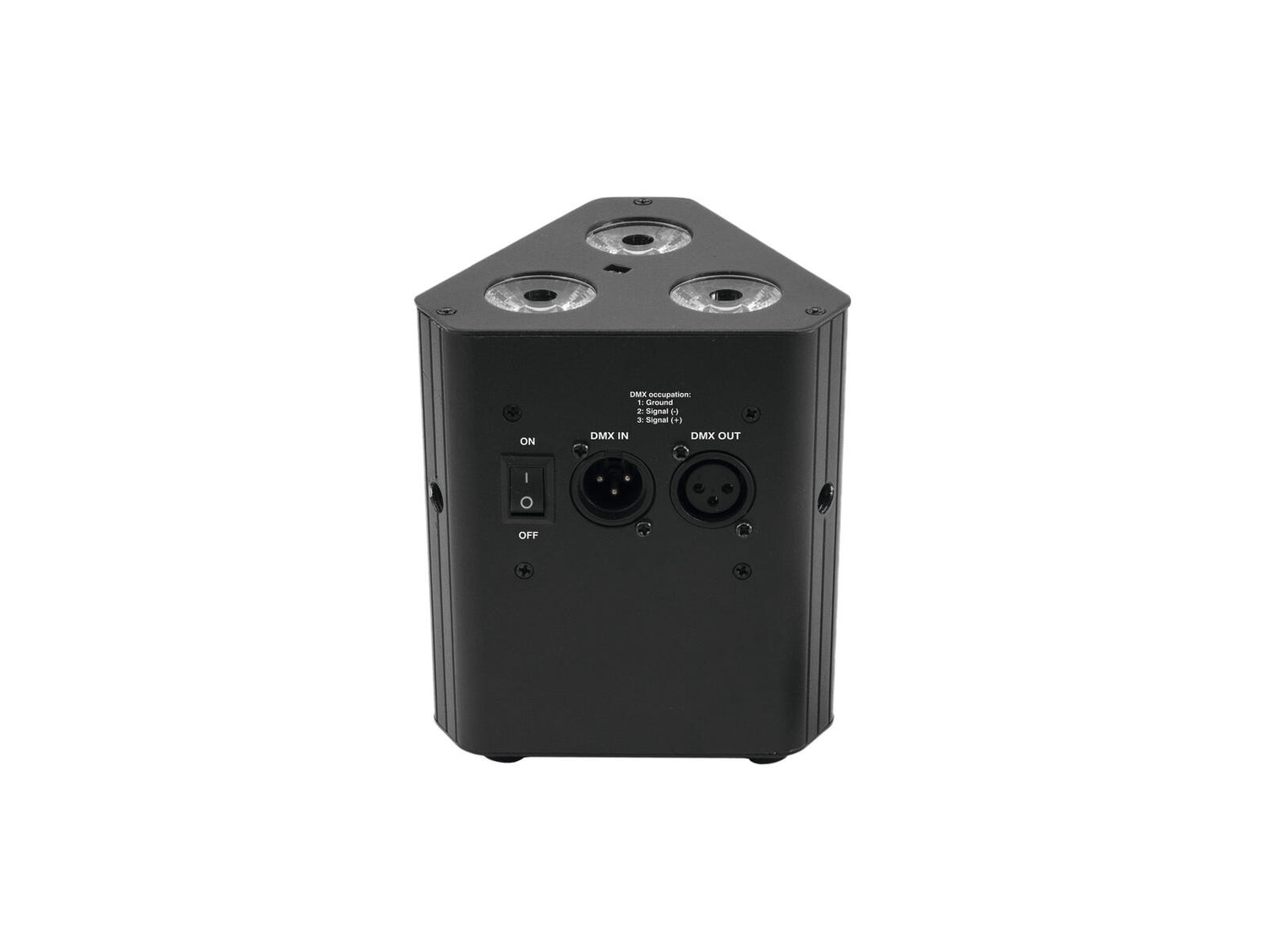

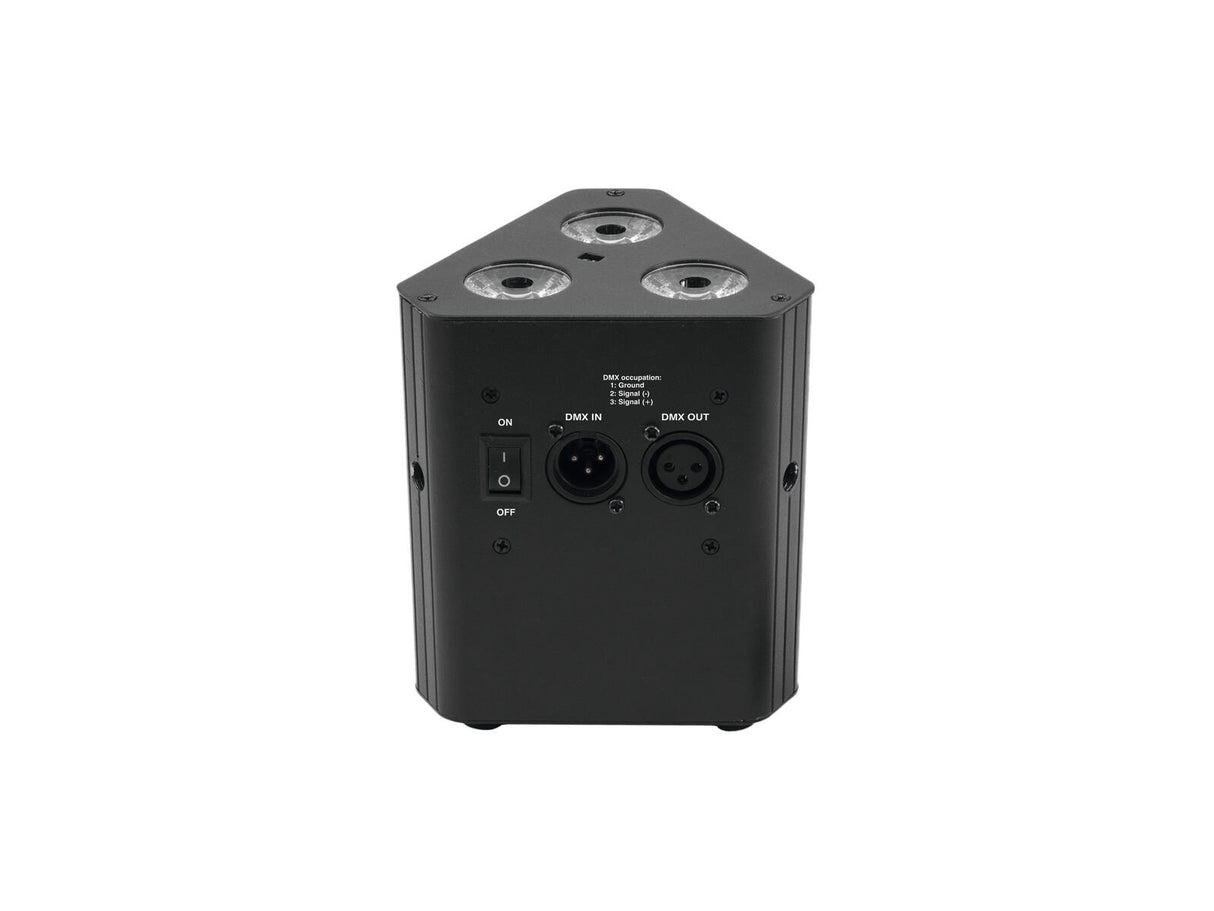

DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	DMX; stand-alone; QuickDMX; IR remote control; sound to light via microphone
Fixtures available for:	Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3; Colorchief
Projection:	Flicker-free
Carrier frequency:	2.4 GHz
Beam angle (1/2 peak):	11°
Beam angle (1/10 peak):	24°
Housing color:	Black
Attachment system:	M10 thread
Display type:	LCD display
Transport aid:	3 x rubber feet
Dimensions:	Width: 12.1 cm Depth: 10.8 cm Height: 14.5 cm
Weight:	1.27 kg
Noise classification:	Class 0 (no noise at all)
Remote control
Battery:	1 x button cell 3.0 V CR2032 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
