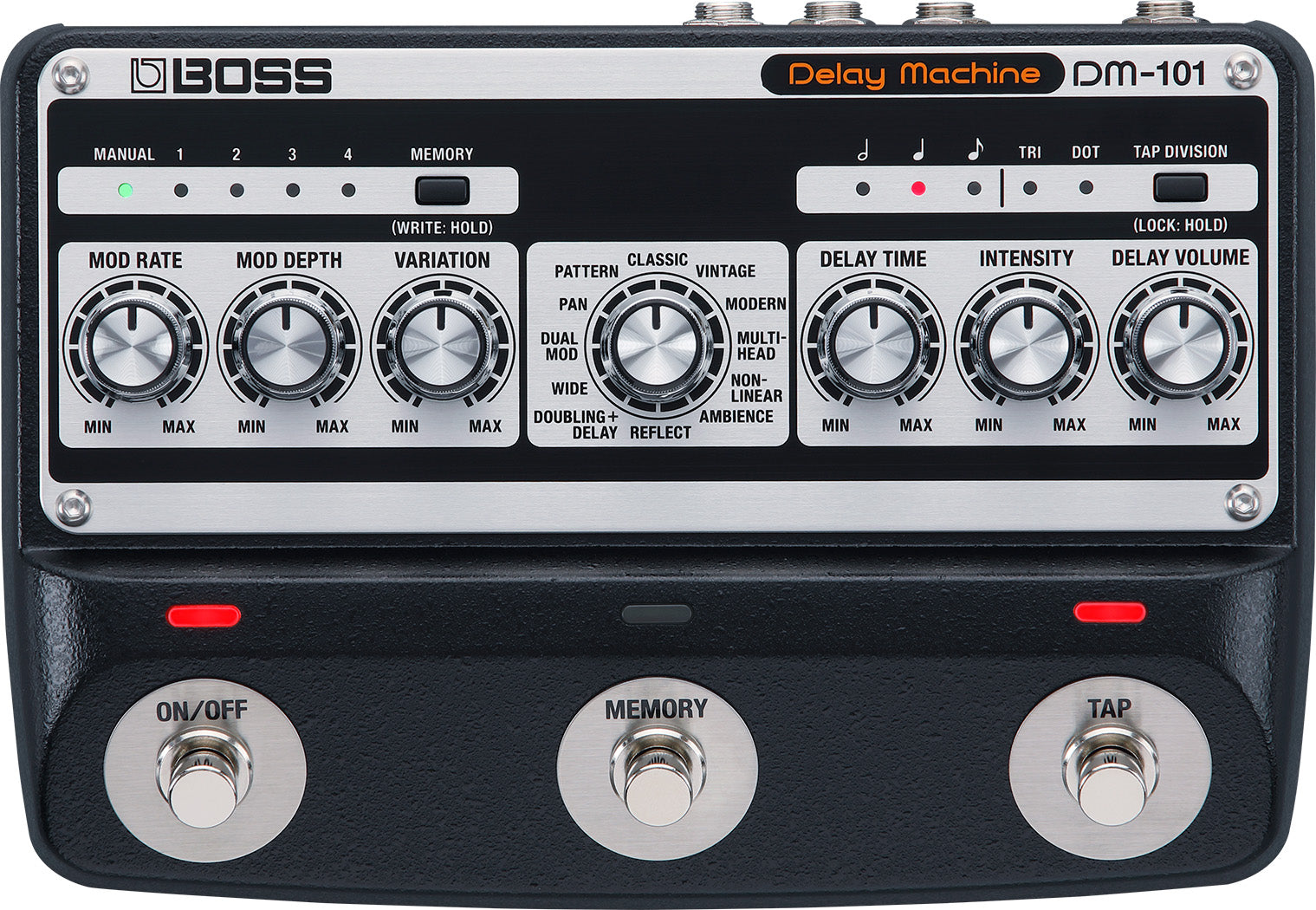

Boss DM-101 Delay Machine

Minne 127 + Manual
Nominell ingångsnivå INPUT: -10 dBu
Ingångsimpedans INPUT: 1 MΩ
Nominell utgångsnivå OUTPUT A/MONO, OUTPUT B: -10 dBu
Utgångsimpedans OUTPUT A/MONO, OUTPUT B: 1 kΩ
Rekommenderad belastnings
impedans:
OUTPUT A/MONO, OUTPUT B: 10 kΩ eller högre
Delay Mode:
CLASSIC
VINTAGE
MODERN
MULTI-HEAD
NON-LINEAR
AMBIENCE
REFLECT [STEREO]
DOUBLING+DELAY [STEREO]
WIDE [STEREO]
DUAL MOD [STEREO]
PAN [STEREO]
PATTERN [STEREO]
Bypass Buffrad bypass

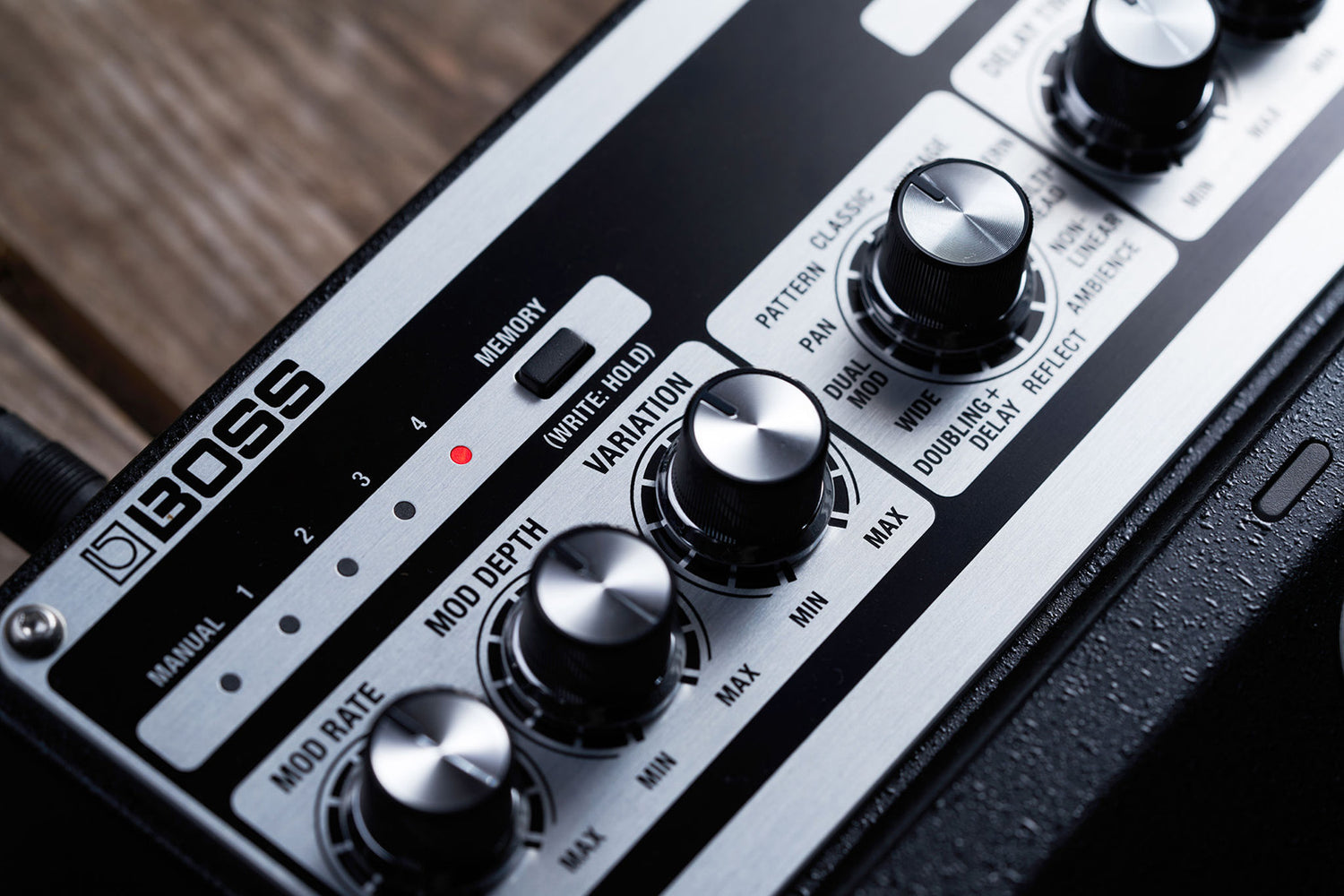

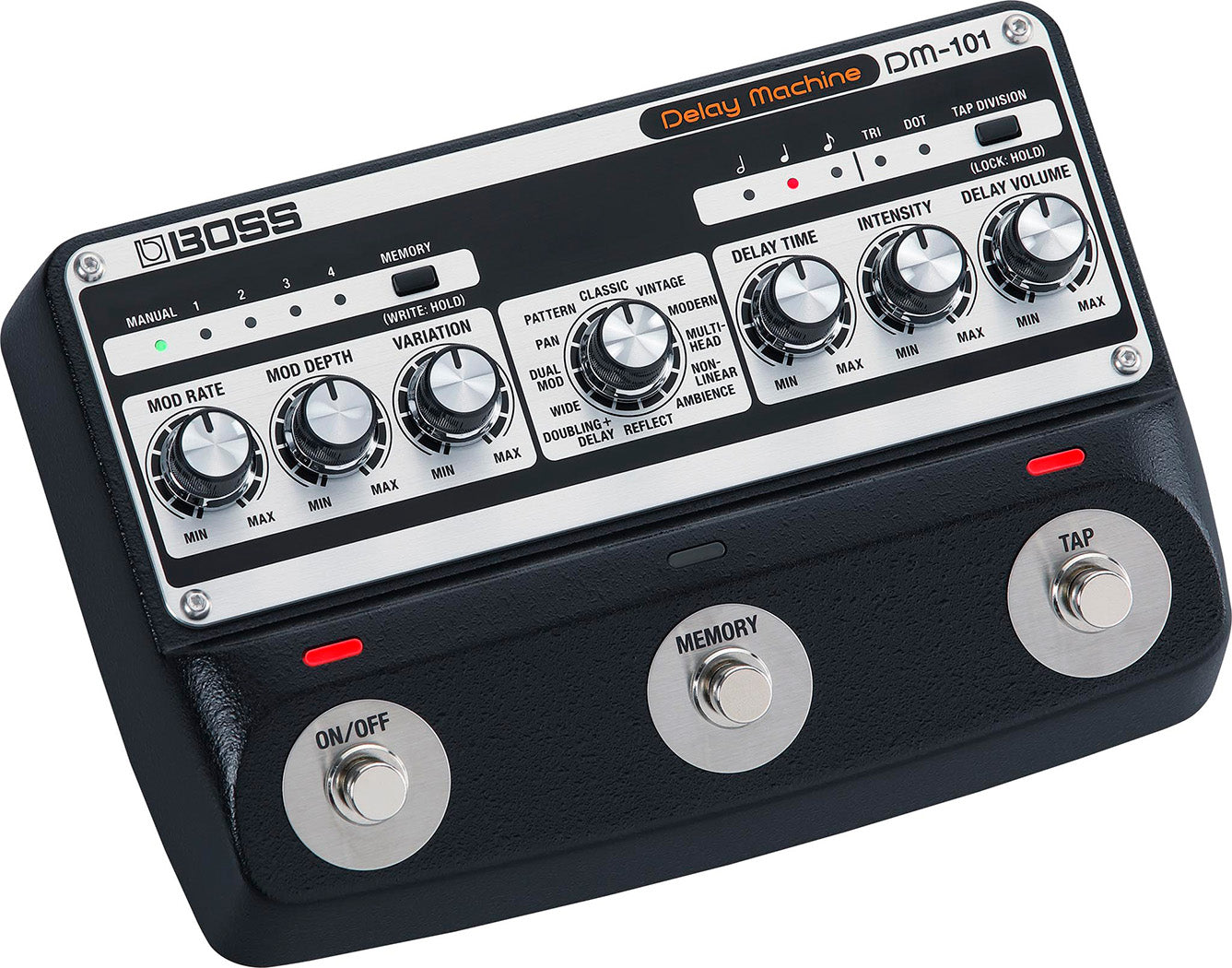

Kontroller:
[ON/OFF]-switch, [MEMORY]-switch, [TAP]-switch
[MOD RATE]-ratt, [MOD DEPTH]-ratt, [VARIATION]-ratt, Mode-ratt, [DELAY TIME]-ratt,
[INTENSITY]-ratt, [DELAY VOLUME]-ratt
[MEMORY]-knapp, [TAP DIVISION]-knapp

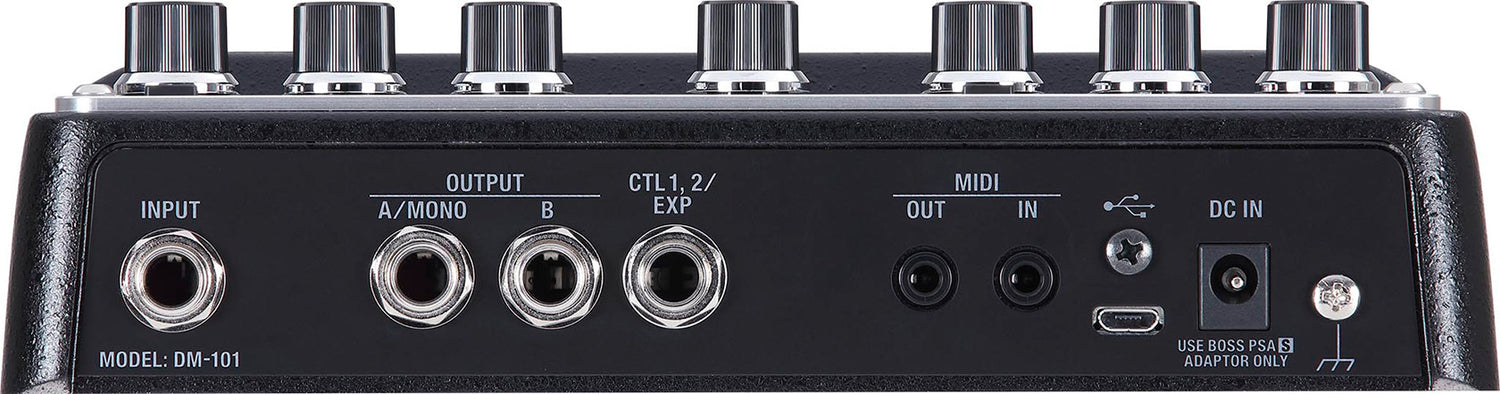

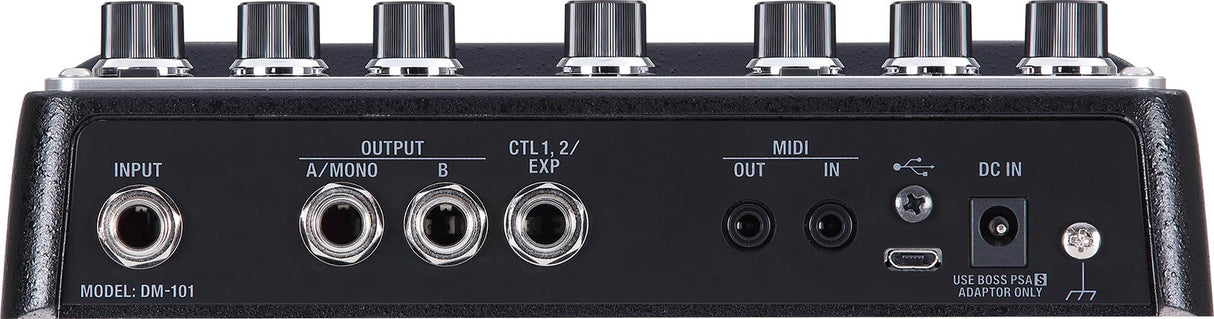

Anslutningar:
INPUT-jack, OUTPUT A/MONO-jack, OUTPUT B-jack: 1/4-inch phone-typ
CTL 1, 2/EXP-jack: 1/4-inch TRS phone-typ
MIDI (IN, OUT)-jack: Stereo miniature phone-typ
DC IN-jack
USB-port: USB micro B-typ (endast programuppdatering)
Strömförsörjning AC-adapter
Strömförbrukning 260 mA
Mått:
192 (W) x 133 (D) x 52 (H) mm / 7-9/16 (W) x 5-15/64 (D) x 2-3/64 (H) inches
192 (W) x 133 (D) x 53 (H) mm / 7-9/16 (W) x 5-15/64 (D) x 2-3/32 (H) inches (inklusive gummifot)
Vikt:
830 g
1 lb 14 oz
Tillbehör:
AC-adapter
Startup Guide
Broschyr (“USING THE UNIT SAFELY”, “IMPORTANT NOTES” och “Information”)
Gummifot x 4
Tillval
(säljs separat):
Fotpedal: FS-5U

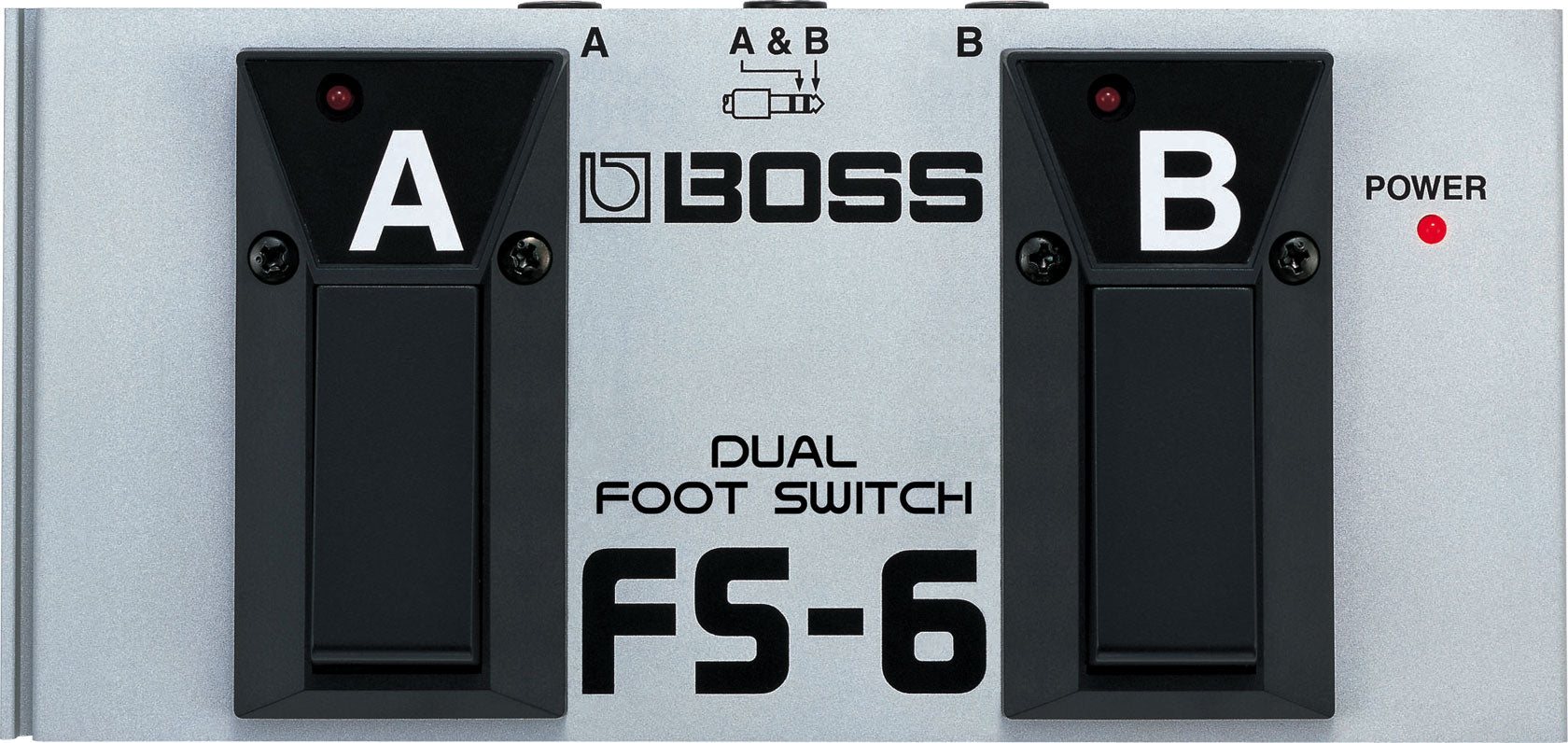

Dubbel fotpedal: FS-6, FS-7

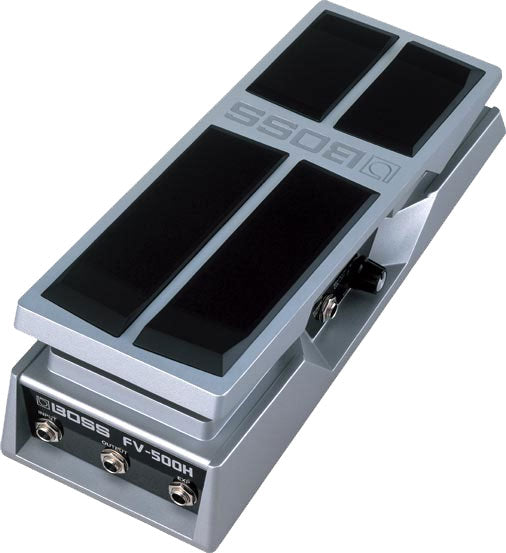

Expression-pedal: FV-500H, FV-500L, EV-30, Roland EV-5
MIDI/TRS-anslutningskabel: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
