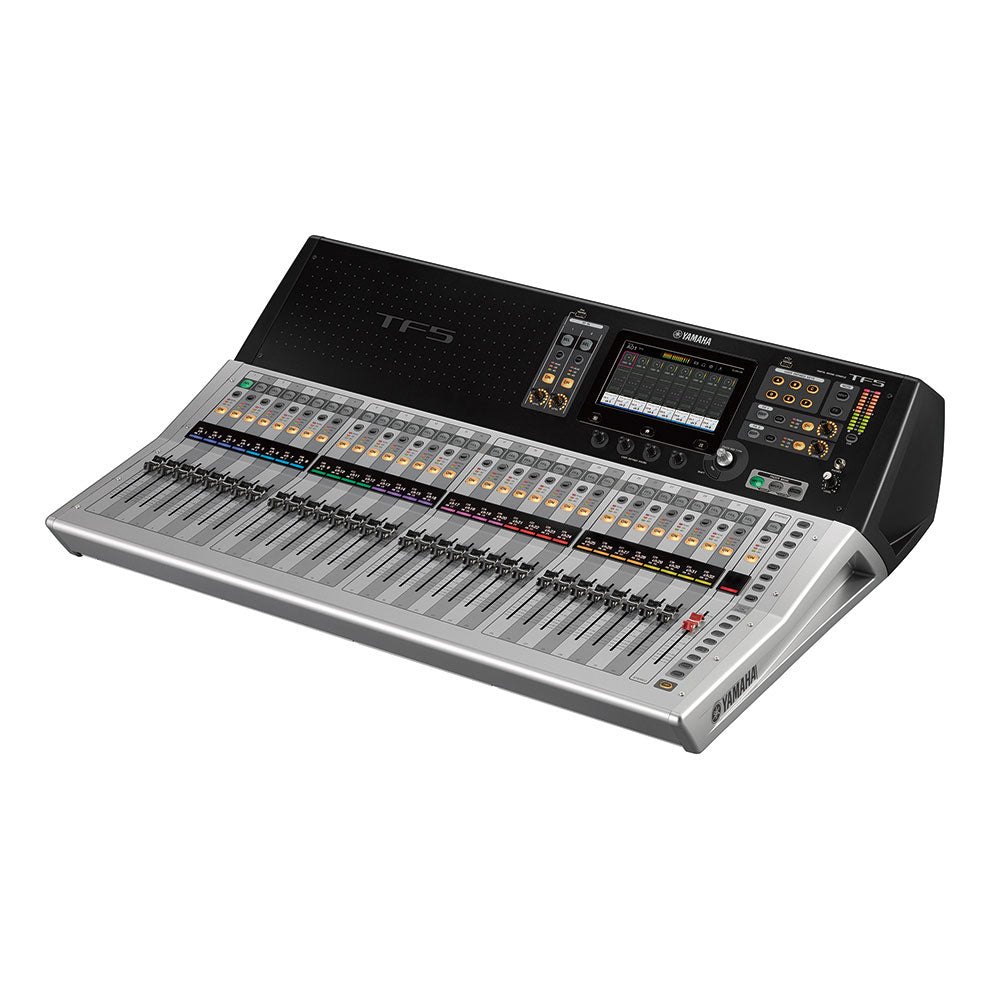

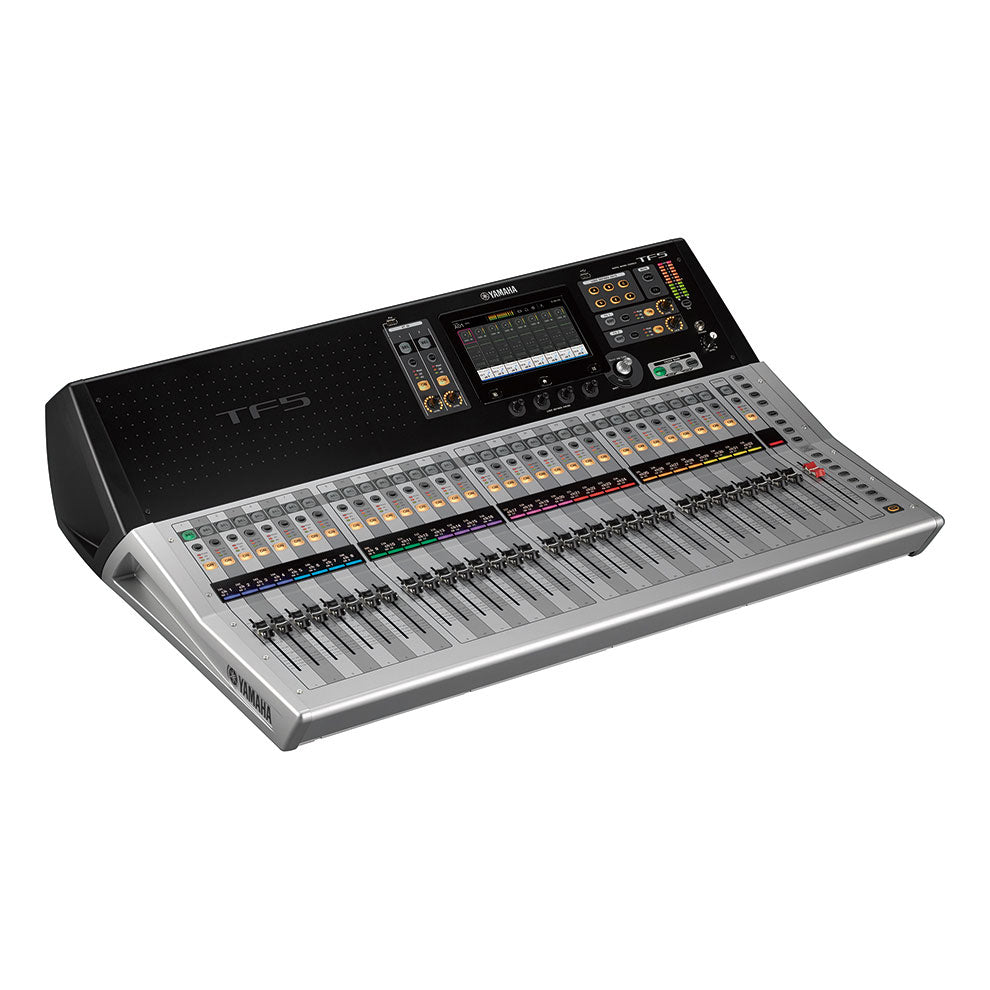

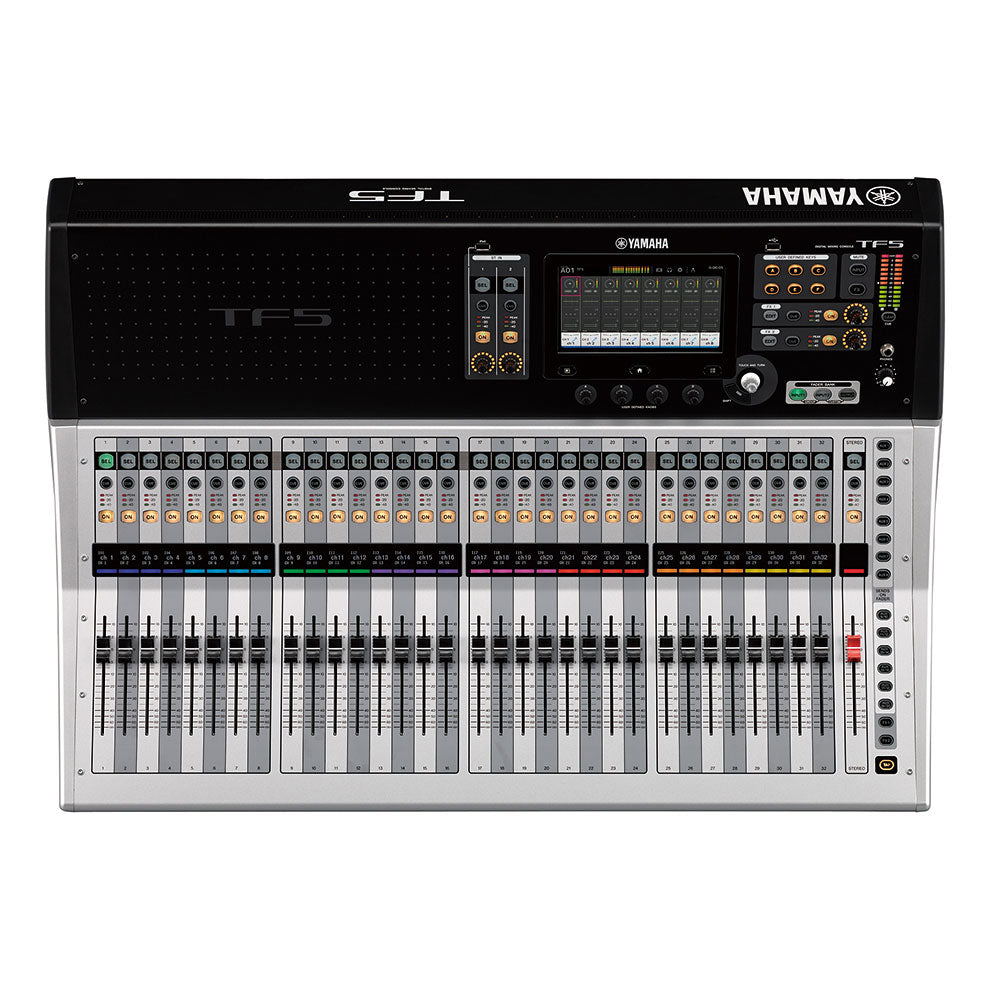

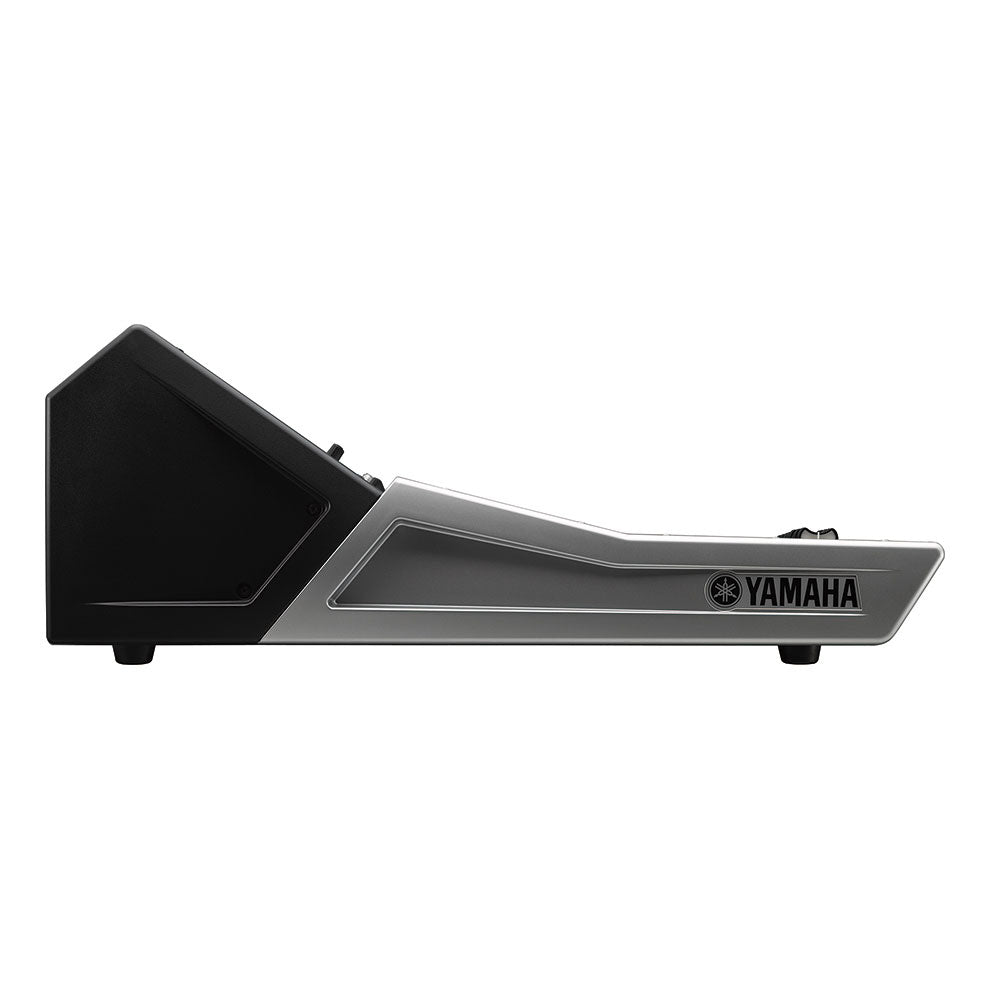

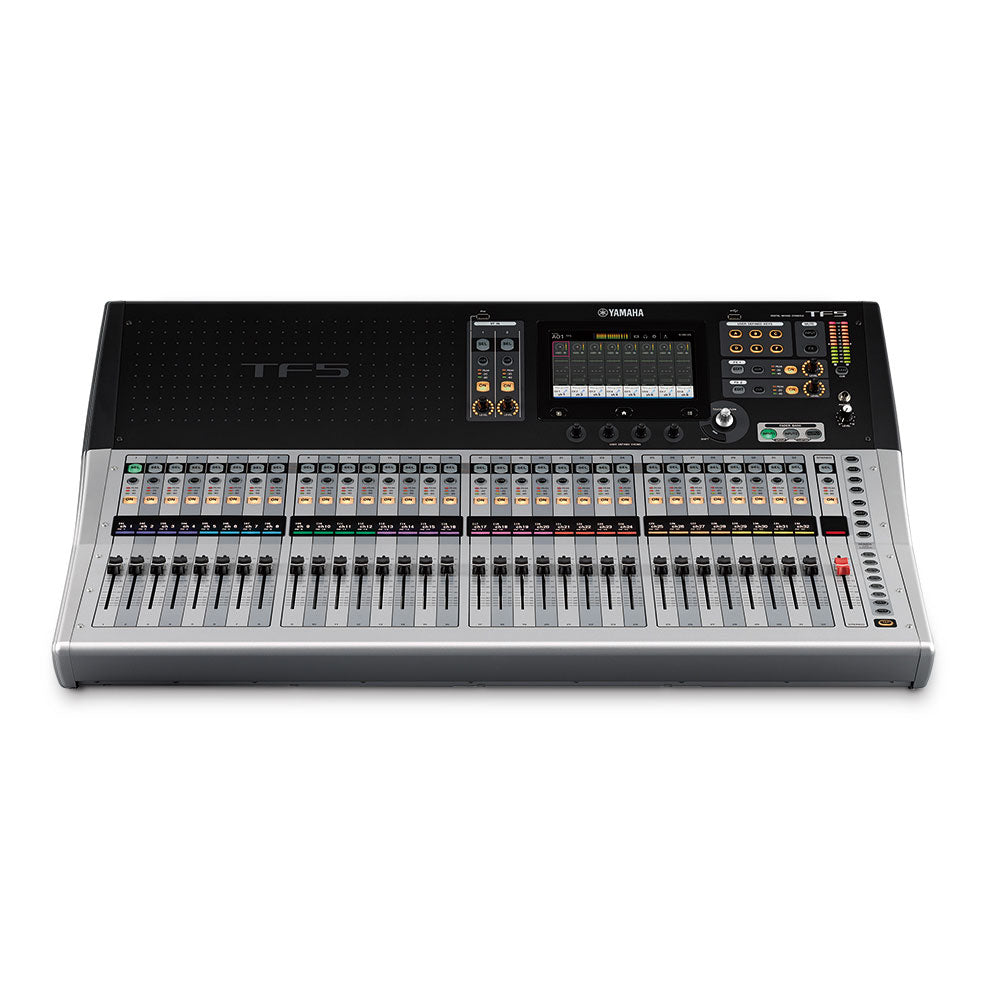

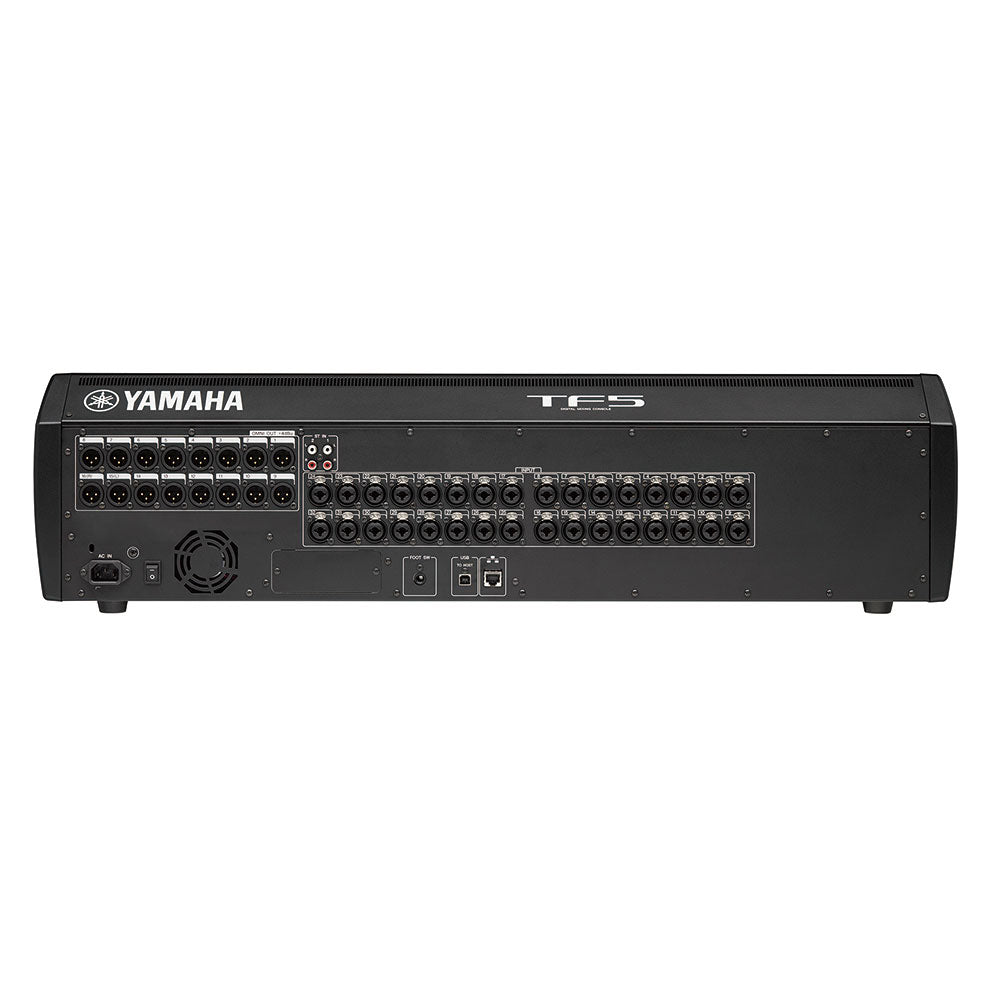

Yamaha TF5 digital mixer
63,344.00 kr
Stk. pris
/
Inte tillgänglig
Beskrivning
Beskrivning
- Hög ingångskapacitet
- Många fäder gör detta till det perfekta skrivbordet för större evenemang
Yamaha TF5
- 33 motoriserade faders (32 kanalfaders + 1 master)
- 48 ingångskanaler för mix (40 mono + 2 stereo + 2 retur)
- 20 Aux (8 mono + 6 stereo) + Stereo + Sub bussar
- 8 DCA-grupper med utrullning
- 32 analoga XLR / TRS combo mic / line-ingångar + 2 analoga stereo phono line-ingångar
- 16 analoga XLR-utgångar
- 34 x 34 kanals digital inspelning och uppspelning via USB 2.0 + 2 x 2 via ett USB-minne
- 1 expansionskortplats för NY64-D ljudgränssnittskort
Tekniska specifikationer
Tekniska specifikationer
Specifikationer
Outline
| Fader Configuration | 32 + 1 (Master) | |
|---|---|---|
| Mixing Capacity | Input Channels | 48 (40 mono + 2 stereo + 2 return) |
| Aux Buses | 20 (8 mono + 6 stereo) | |
| Stereo Buses | 1 | |
| Sub Buses | 1 | |
| Input channel functions | 8 DCA-grupper | |
| I/O | Inputs | 32 mic/line (XLR/TRS combo) + 2 stereo line (phono) |
| Outputs | 16 (XLR) | |
| Expansion slots | 1 | |
| On-board processors | DSP | 8 effekter + 10 GEQ |
| USB | 34x34 USB Audio Interface, 2-spors indspilning til USB-stick | |
General specifications
| Sampling frequency rate | Internal | 48 kHz |
|---|---|---|
| Signal delay | Mindre end 2.6 ms, INPUT til OMNI OUT, Fs=48 kHz | |
| Fader | 100 mm motoriserede, opløsning = 10-bit, +10 dB to –138 dB, –∞ dB alle fadere | |
| Total harmonic distortion | Mindre end 0.05% 20 Hz–20 kHz @+4 dBu ind i 600 ohm, INPUT til OMNI OUT, Input Gain=Min. (Målt med et –18 dB/oktav filter@80 kHz) | |
| Frequency response | +0.5, –1.5 dB 20 Hz–20 kHz, ved +4 dBu output @1kHz, INPUT til OMNI OUT | |
| Dynamic range | 110 dB typ., DA-konverter, 107 dB typ., INPUT til OMNI OUT, Input Gain=Min. | |
| Hum & noise level | Equivalent input noise | –128 dBu typ., Input Gain=Max. (Målt med A-vægtningsfilter) |
| Residual output noise | –85 dBu, ST master off (Målt med A-vægtningsfilter) | |
| Crosstalk | –100 dB (Målt med et –30 dB/oktav filter@22 kHz), fortløbende INPUT/OMNI OUT-kanaler, Input Gain=Min. | |
| Power requirements | 100–240 V 50/60 Hz | |
| Power consumption | 120 W | |
| Dimensions | W | 866 mm (34.1in) |
| H | 225 mm (8.9in) | |
| D | 599 mm (23.6in) | |
Generelle specifikationer
| Nettovægt | 20.0 kg (44.1lb) | |
|---|---|---|
General specifications
| Accessories | Quick Guide, Strømkabel, CUBASE AI download information | |
|---|---|---|
| Options | Udvidelseskort, fodpedal (FC5) | |
| Others | Arbejdstemperatur: 0–40 °C, Opbevaringtemperatur: -20–60 °C | |
Analog input characteristics
| Input Terminals | GAIN | Load Impedance | For Use With Nominal | Input Level | Connector | balanced / Unbalanced | ||
|---|---|---|---|---|---|---|---|---|
| Sensitivity*1 | Nominal | Max. before clip | ||||||
| INPUT1-32 | +66dB | 7.5KΩ | 50-600Ω Mics or 600Ω Lines | -82dBu (61.6V) | -62dBu (0.616mV) | -42dBu (6.16mV) | Combo Jack (XLR-3-31 type *2 or TRS phone *3) | Balanced |
| -6dB | -10dBu (245mV) | +10dBu (2.45V) | +30dBu (24.5V) | |||||
| ST IN 1,2 | — | 10kΩ | 600Ω Lines | -30dBV (31.6V) | -10dBV (316mV) | +10dBV (3.16V) | RCA Pin Jack | Unbalanced |
*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
*In these specifications, 0dBu = 0.775Vrms.
*+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.
Analog output characteristics
| Output Terminals | Source Impedance | For Use With Nominal | GAIN SW | Output Level | Connector | balanced / Unbalanced | |
|---|---|---|---|---|---|---|---|
| Nominal | Max. before clip | ||||||
| OMNI OUT 1-16 | 75Ω | 600Ω Lines | “+24dBu” position (default) | +4dBu (1.23 V) | +24dBu (12.3 V) | XLR-3-32 type *1 | Balanced |
| PHONES *3 | 100Ω | 40Ω Phones | — | 3mW | 75mW | Stereo Phone Jack (TRS) *2 | Unbalanced |
*1.1: GND,2: HOT, 3: COLD
*2 Tip: LEFT, Ring: RIGHT, Sleeve: GND
*3 The position of the level control is lowered by 16dB from the maximum.
*In these specifications, 0dBu = 0.775Vrms.
*All output DA converters are 24bit, 128times oversampling.
Digital input/output specifications
| Terminals | Format | Data length | Audio | Connector |
|---|---|---|---|---|
| USB (TO HOST) | USB | 24bit | 34ch input / 34ch output, PCM | USB (B type) |
| iPad | USB | — | Playback: MP3 or WAV file data / Record: WAV file data | USB (A type) |
Control I/O specifications
| Terminals | Format | Level | Connector |
|---|---|---|---|
| NETWORK | IEEE802.3 | 10BASE-T/100Base-TX | RJ-45 |
| FOOT SW | — | — | TS Phone |
