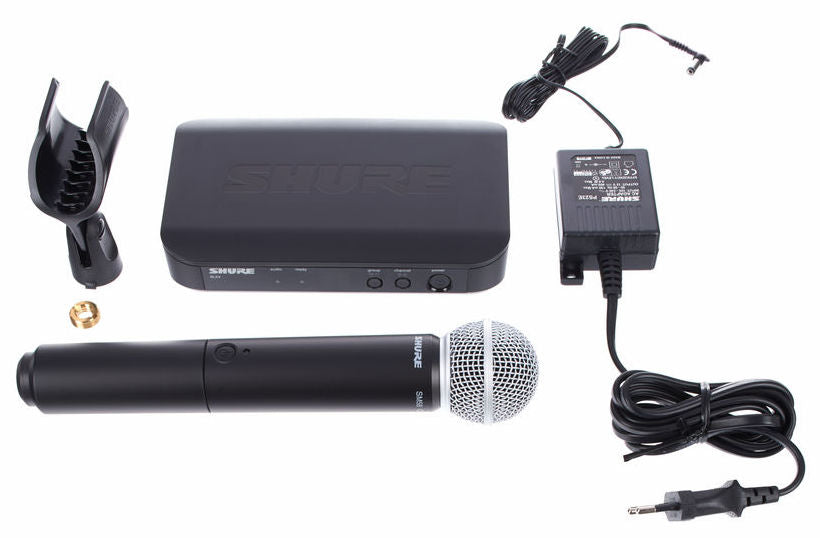

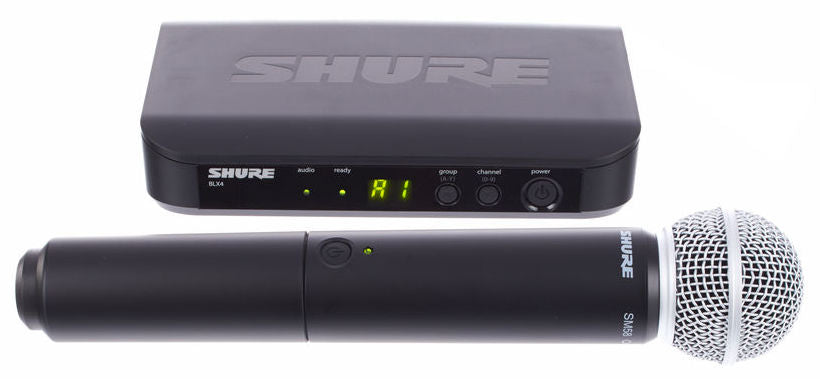

Shure BLX24E/SM58-S8

• Robust trådlös handhållen mikrofon.
• Designad för scen.
• Det robusta gallret skyddar kapseln perfekt.
• Perfekt för sång.
• Snabbskanningsfunktion för att hitta en fri frekvens.
• XLR och Jack-utgångar.
• Frekvensområde: S8 (823 - 832 MHz).

LD Systems D1105

Dynamic Vocal Microphone

The D1105 is a dynamic microphone with a hypercardioid polar pattern for demanding vocalists. Its attractive design, switch recessed in the shaft, sturdy headgrille, excellent frequency response and high SPL are features which make this an ideal microphone for everyday stage use.

​Also known as D1105, D-1105

SYSTEM TECHNICAL SPECIFICATIONS

• Compatible systems per frequency band (up to): 12

• Selectable frequencies: 150

• Auto Setup Features: QuickScan : Finds group with most compatible frequencies and sets to best frequency

• Audio Reference Companding: No

• Included Antennas: BLX4, BLX88: Internal, BLX4R: Detachable

• Antenna Options: No

• Receiver Network Ability: No

• PC Control: No

• Rack Hardware: URT2 (not included), Rack mount brackets (only with rackable/BLX-R Sets)

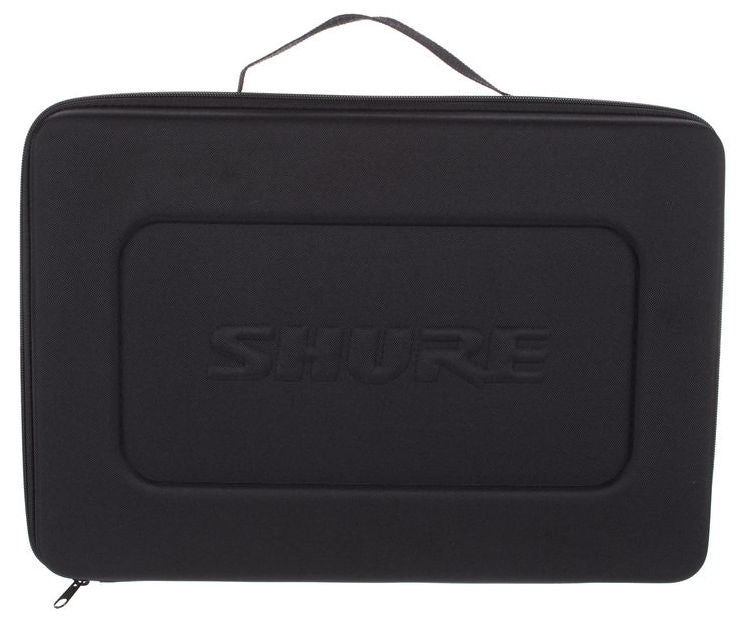

• Case: Included Only with BLX4 Sets

• Transmitter Display: LED

• Receiver Display: BLX4, BLX88: LED, BLX4R: High-resolution LCD screen

• Battery, Endurance: 2AA, up to 14h

• Environment: Daily Touring

FURTHER TECHNICAL SPECS

• Operating Range: 91 m ( line of sight - actual range depends on RF signal absorption, reflection and interference)

• Available Frequencies: Between 524–865 MHz (available frequencies depend on applicable regulations in country where system used)

• Audio Range: 50–15,000 Hz (dependent on microphone type)

• Transmitter RF Output Power: 10 mW, typical (varies by region)

• Audio Output Connector: XLR and 1/4" (6.3 mm) unbalanced Maximum Output Level: -27 dBV (XLR, mic level), -13 dBV (1/4")

• Battery Life: Up to 14 hours

• Dynamic Range: 100 dB A-weighted

• System Distortion: 0.5% THD typical (ref. +/- 38 kHz deviation, 1 kHz tone)

• Operating Temperature Range: -18°C (0°F) – +50°C (122°F)

• Power Requirements: BLX1, BLX2: 2 AA alkaline or rechargeable batteries

• BLX4: 12–18 V DC at 150 mA, supplied by external power supply

COMPONENT SPECIFICATIONS:

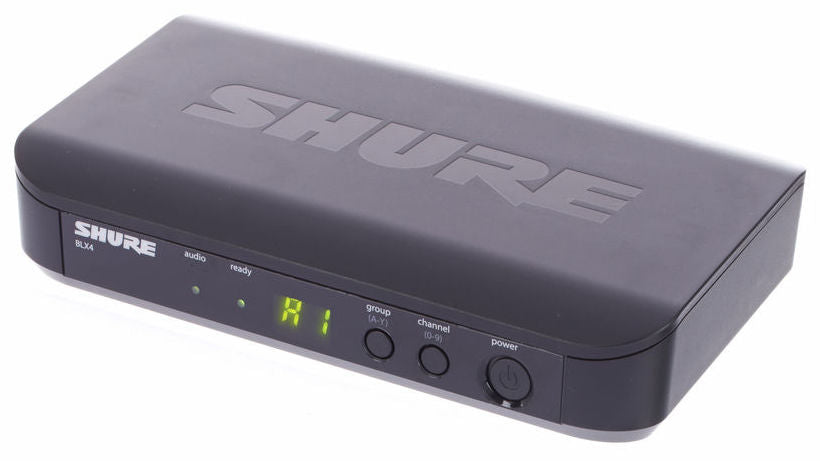

BLX4 RECEIVER

• Output Impedance:

  • - XLR connector 200 Ω

  • - 6.35 mm (1/4") connector: 50 Ω

• Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:

  • - XLR connector –27 dBV (into 100 kΩ load)

  • - 6.35 mm (1/4") connector –13 dBV (into 100 kΩ load)

• RF Sensitivity: 105 dBm for 12 dB SINAD, typical

• Image Rejection: >50 dB, typical

• Dimensions: 40 mm X 188 mm X 103 mm (H x W x D)

• Weight: 241 g

• Housing: Molded ABS

• Power Requirements: 12–15 V DC @ 160 mA, supplied by external power supply (tip positive)

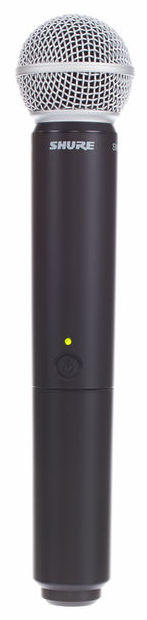

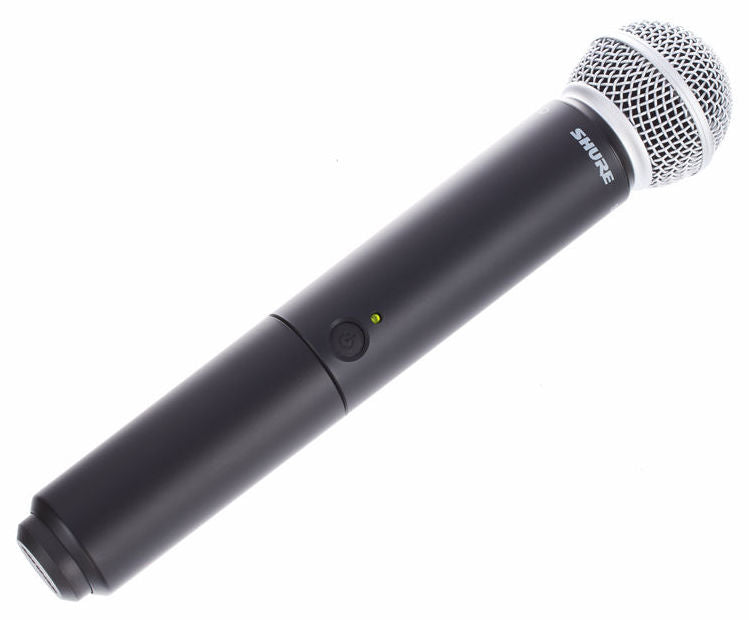

BLX2 HANDHELD TRANSMITTER

• Audio Input Level

  • - gain 0dB: -20 dBV maximum

  • - gain -10dB: -10 dBV maximum

• Gain Adjustment Range: 10 dB

• RF Transmitter Output: 10 mW, typical, varies by region

• Dimensions: 224 mm X 53 mm dia.

• Weight: 218 g (without batteries)

• Housing: Molded ABS

• Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline

• Battery Life: up to 14 hours (alkaline)
